Honda’s LAMS legal CB500F updated in 2019

Revised engine – New shock – All new styling


Honda’s highly popular mid-capacity learner machine, the CB500F was launched back in 2013 alongside the CBR500R and CB500X and has since gone on to strong success

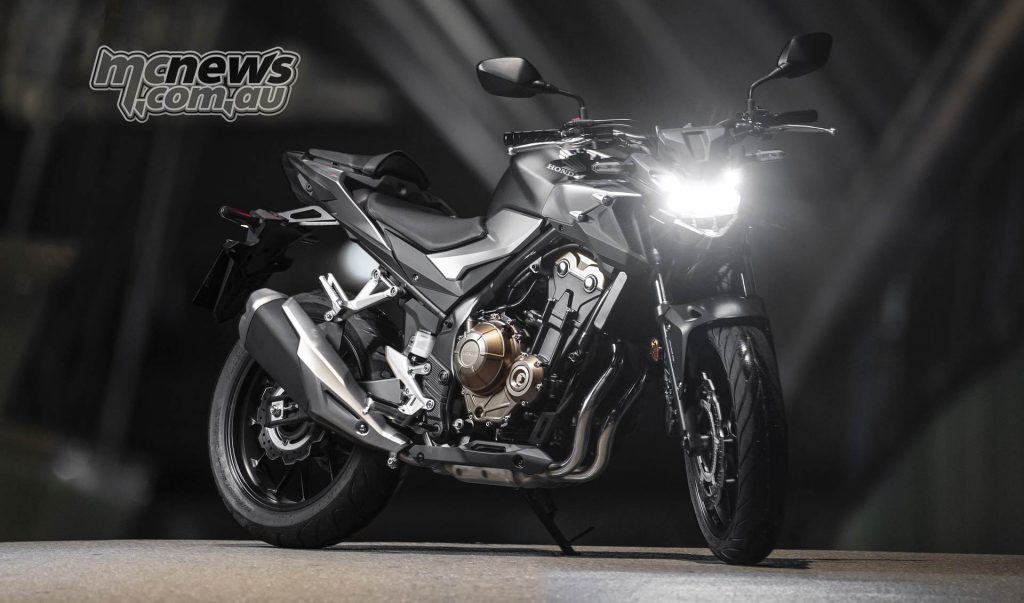

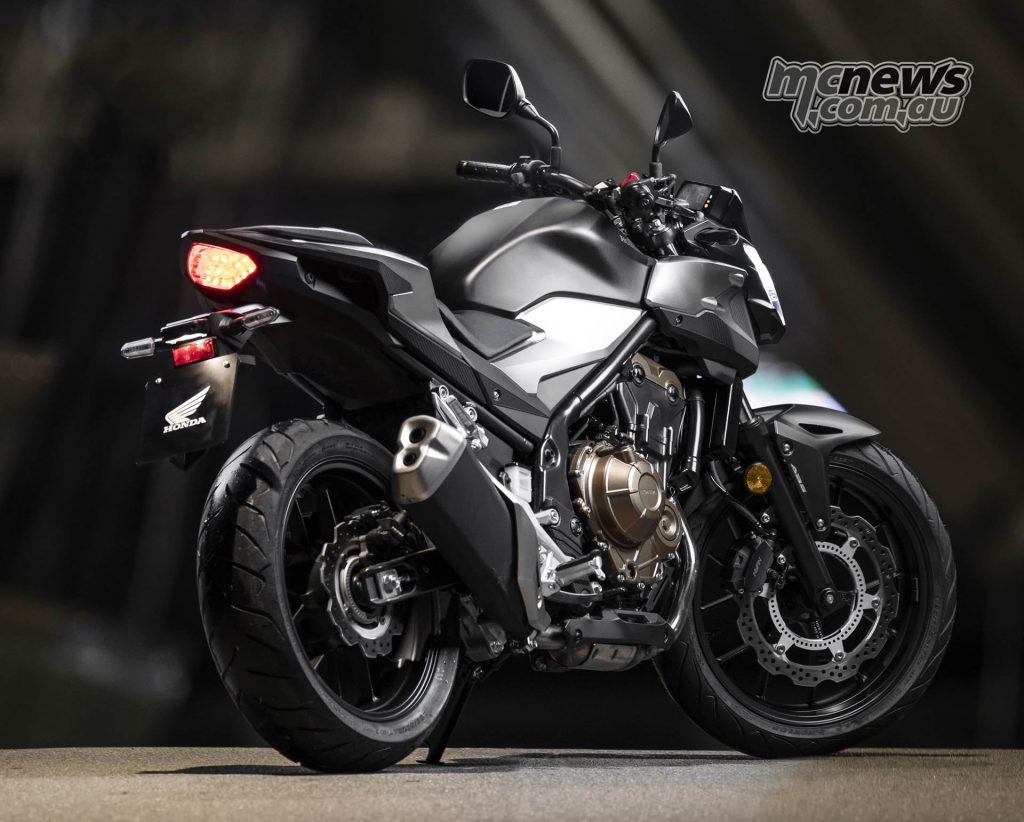

Honda CBF Scene
2019 Honda CB500F

Now for 2019 the CB500F has further evolved, with the addition of aggressive bodywork, tapered handlebars, a new LCD dash featuring a Shift Up and Gear Position functionality and all LED indicators – to match the rest of the lighting.

While the CB500F already reaches the A2 (and similar LAMS) limit of 35kW, Honda have been able to tune the bike for more more power and torque in the low to mid range thanks to revisions to the inlet, exhaust and valve timing, contributing to a 4 per cent boost.

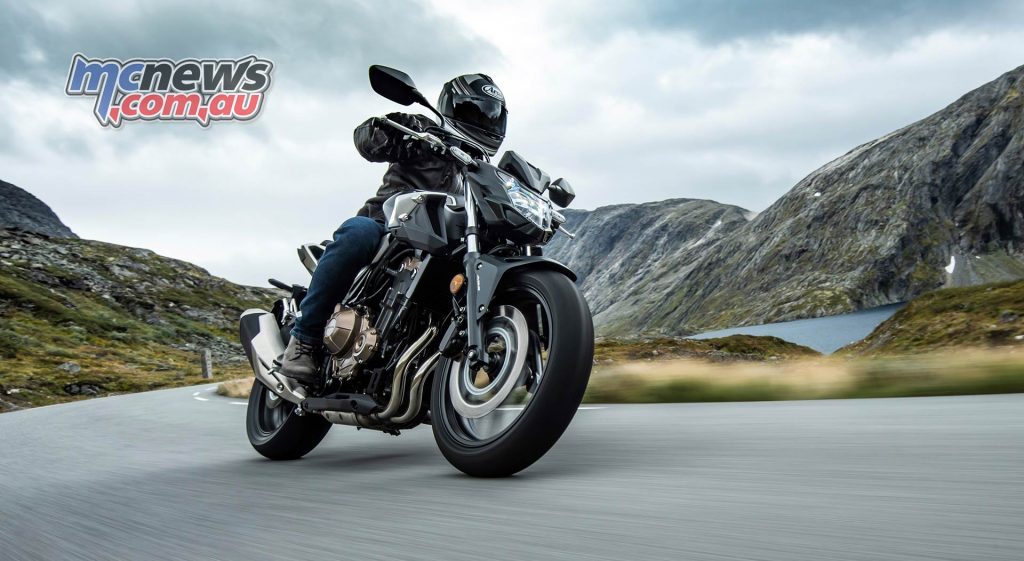

Honda CBF Action
2019 Honda CB500F

A new dual­ exit exhaust muffler also emits a heartier exhaust note making for a more enjoyable experience, while the engine also features an assist/slipper clutch.

The chassis remains unchanged as a testament to the quality of the existing spec, while  a new rear single­tube shock absorber has been added, aiming to deliver even more consistent damping performance and improved control.

Honda CBF Scene
2019 Honda CB500F

2019 Honda CB500F new features

  • New aggressively­ styled bodywork
  • Tapered handlebars for control and feel
  • New LCD instrument display
  • Gear Position and Shift Up indicators
  • LED indicators (now all LED lighting)
  • Revised inlet, exhaust and valve timing
  • 4% more mid­range power and torque
  • Sportier sound from the new dual­exit muffler
  • Assist/Slipper clutch eases upshifts and manages downshifts

Revised styling & updated shock

For its 2019 evolution the CB500F’s naked styling has evolved from front to rear, with an eye catching headlight design and lowset stance, including side shrouds which interlock with the fuel tank and emphasise the engine. Side covers and the seat unit also contribute to the angular theme.

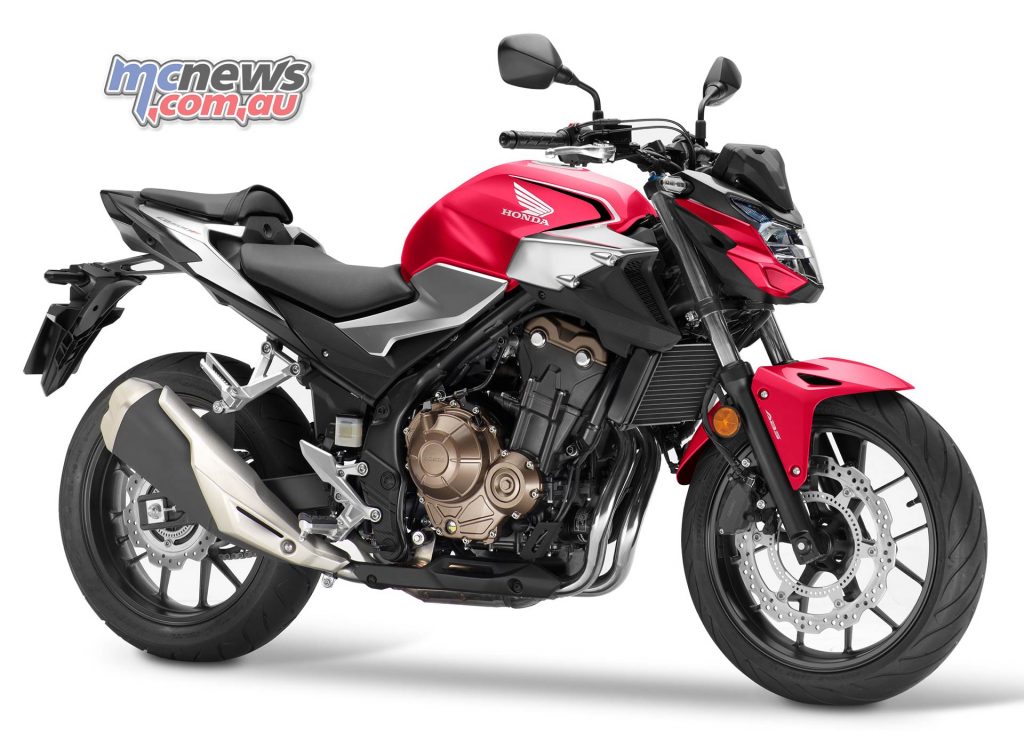

Honda CBF Studio

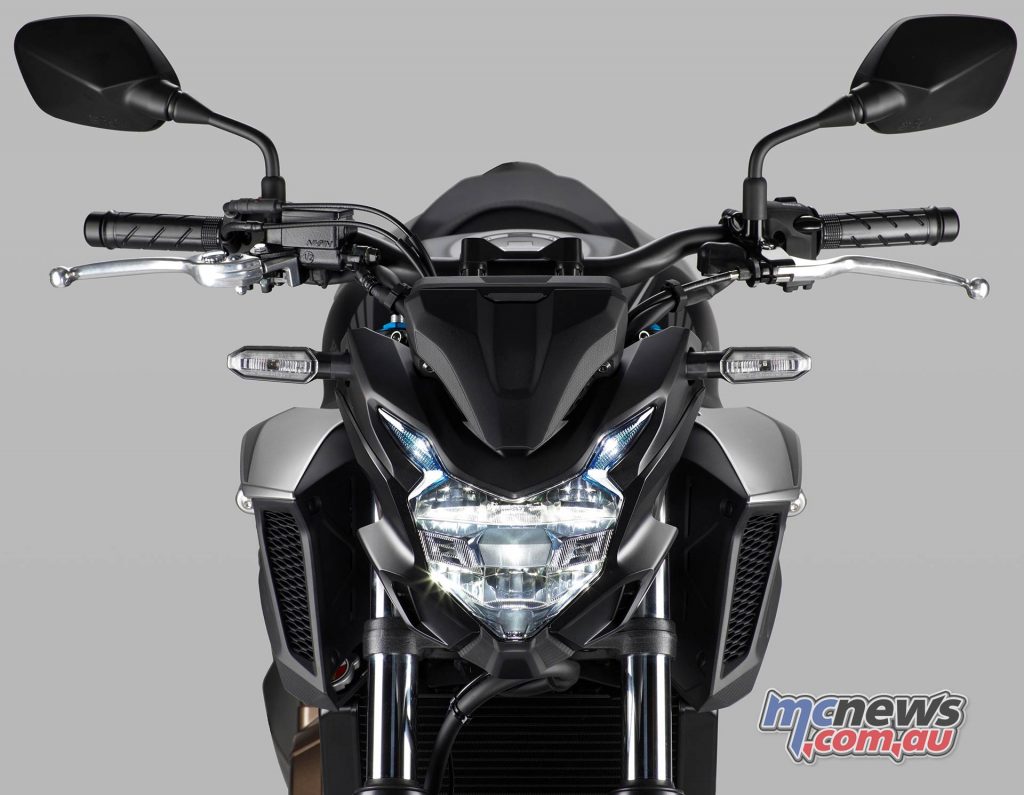

2019 Honda CB500F – Now with LED indicators

Tapered handlebars add leverage for the rider, while a new LCD dash features a Gear Position and Shift Up indicator, which is set to a default 8750rpm but can be adjusted in 250rpm increments.

The 35mm diameter steel diamond­ tube mainframe is unchanged for 2019 and the wheelbase is 1410mm and rake and trail are set at 25.5°/102mm, giving nimble but
confidence ­inspiring steering. Mass centralisation, with the engine in close proximity to the swingarm pivot point, delivers agility and an optimum front/rear weight distribution, while kerb weight is 189kg.

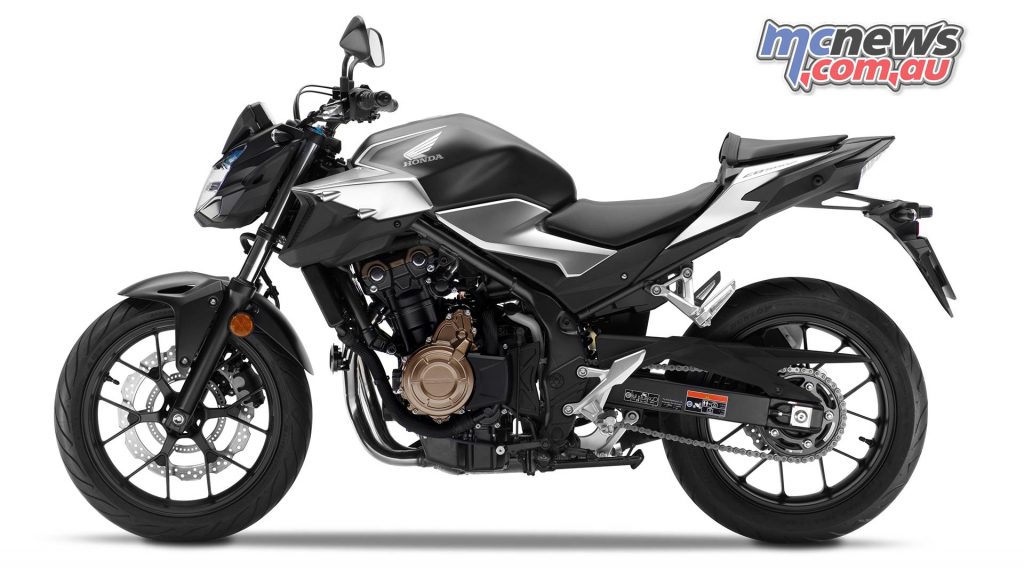

Honda CBF Studio
2019 Honda CB500F – Steel diamond frame

The seat height remains low at 785mm, making the CB500F easy to manage and the
neutral riding position lends itself to comfort and riders of any height. Overall dimensions
are 2080mm x 790mm x 1060mm, with 145mm ground clearance.

The fuel tank holds a generous 17.1L including reserve, and Honda claim that combined with the engine’s strong fuel economy gives a range of up to 480km.

Honda CBF Studio
2019 Honda CB500F – Fuel range is a claimed 480km

The 41mm preload ­adjustable telescopic front forks have 120mm stroke, for a
compliant yet controlled ride, with strong feel for front tyre grip. The new single­ tube rear
shock absorber is as found on larger capacity sports bikes and replaces the outgoing double-­tube design of the previous model.

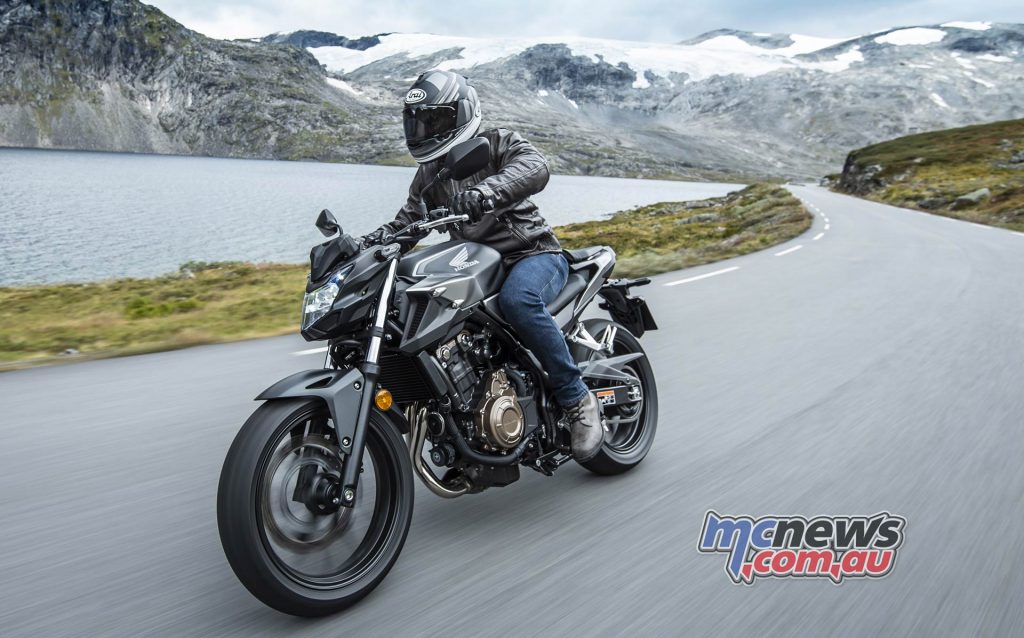

Honda CBF Action
2019 Honda CB500F – 41mm forks

The new shocks large­r diameter piston ensures excellent suspension response and temperature management. It also features 9-­stage spring preload adjustment and works with a rigid box­section steel swingarm, which now features pressed steel chain adjustment end­pieces. Final drive is via sealed 520 chain.

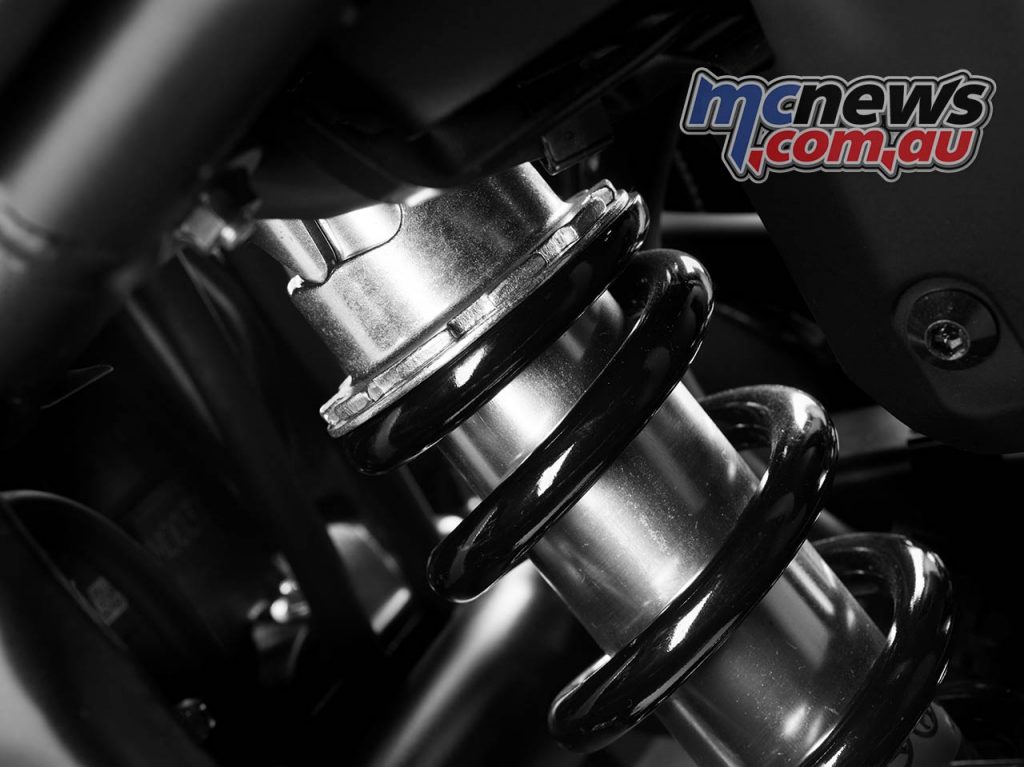

Honda CBF Studio Shock
2019 Honda CB500F – New rear shock

Lightweight 17­inch cast aluminium wheels employ hollow cross­ section Y­ shaped
spokes, with a front wheel width of 3.5inch and a 120/70­ZR17 tyre, while the rear is a 4.5inch with a 160/60­ZR17 tyre. A single front 320mm wavy disc and two­ piston brake caliper is matched to a 240mm rear disc and single­ piston caliper. ABS is fitted as standard.

Honda CBF Studio
2019 Honda CB500F

The CB500F will be available in the following colour options: Grand Prix Red; Matt Gunpowder Black Metallic; Pearl Metalloid White; Candy Energy Orange.

Lively LAMS twin cylinder

The CB500F’s learner eight-valve liquid­-cooled parallel twin­-cylinder layout offers a
balance of physical size and enjoyable power output, with an high­ revving character and top end. The target for 2019 was faster acceleration through a boost in low ­to­ mid ­range power and torque. The 4% improvement comes via altered valve timing – with ‘close’ timing accelerated by 5° – and lift increased by 0.3mm to 7.8mm.

Honda CBF Studio

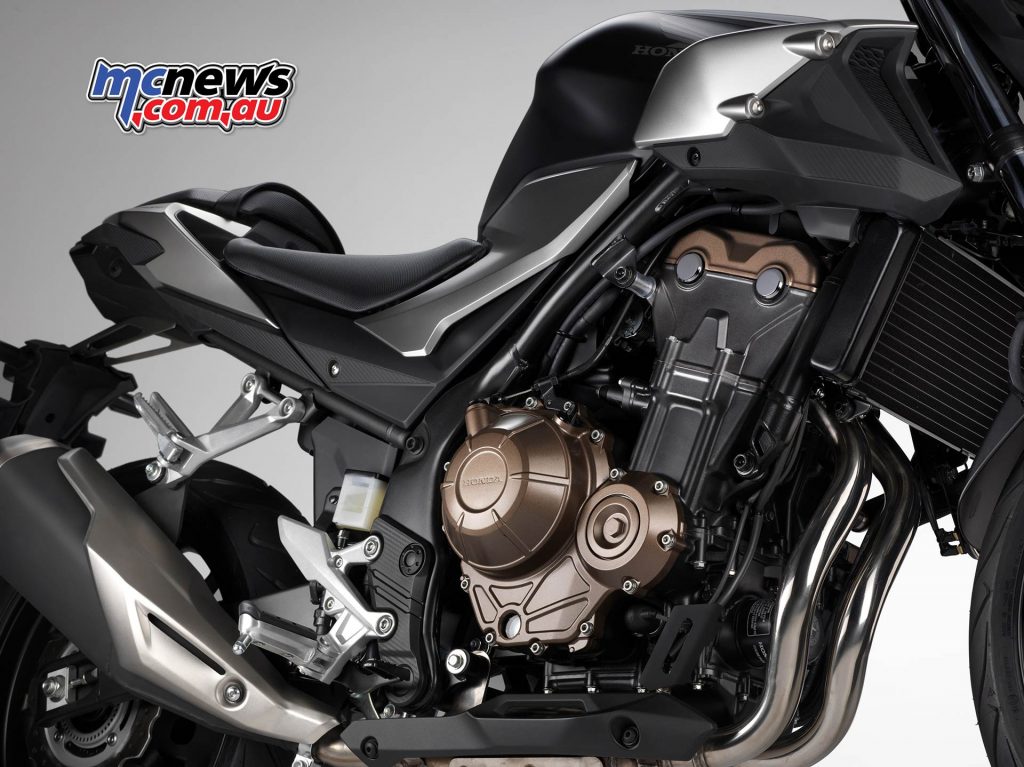

2019 Honda CB500F – eight-valve liquid­-cooled parallel twin­-cylinder

Feeding the PGM­FI fuel injection is now a straight shot of airflow through the
airbox and throttle bodies. The battery has been re­positioned further away (44.1mm
versus 13.4mm) from the rear of the airbox intake duct to allow greater airflow; the exhaust muffler now features dual exit pipes, adding a sportier sounding edge to each pulse. Peak power of 35kW arrives at 8,500rpm, with 43Nm torque delivered at 7,000rpm.

Honda CBF Action
2019 Honda CB500F

Bore and stroke is set at 67 x 66.8mm and compression ratio remains 10.7:1; the
crankshaft pins are phased at 180° and a primary couple­ balancer sits behind the
cylinders, close to the bike’s centre of gravity. The primary and balancer gears use scissor
gears, reducing noise. The crank counterweight is specifically shaped for couple­ balance
and its light weight allows the engine to spin freely, with reduced inertia.

Acting as a stressed member, the engine complements the frame’s rigidity with four frame hangers on the cylinder head. Internally the cylinder head uses roller rocker arms – shim type valve adjustment allows them to be light, for lower valve­ spring load and reduced friction.

Honda CBF Studio
2019 Honda CB500F

A silent (SV Chain) cam chain has the surface of its pins treated with Vanadium, reducing
friction with increased protection against wear. Inlet valve diameter is 26.0mm with exhaust valve diameter of 21.5mm. The piston shape is based upon those used in the CBR1000RR Fireblade to reduce piston ‘noise’ at high rpm. Friction is reduced by the addition of striations on the piston skirt (a finish that increases surface area, introducing gaps in which oil can flow for better lubrication). As with the CBR1000RR, an AB 1 salt bath process, used after isonite nitriding, forms a protective oxidisation membrane.

Honda CBF Studio
2019 Honda CB500F

The ‘triangle’ proportion of crankshaft, main shaft and countershaft is very similar to that of Honda’s four-­cylinder RR engines and much of the internal structure and engineering is
taken directly from the CBR1000RR.

Honda CBF Studio
2019 Honda CB500F

The crankcase uses centrifugally cast thin­ walled sleeves; their internal design reduces
the ‘pumping’ losses that can occur with a 180° phased firing order. Using the same
internal relief structure as that of the CBR1000RR, the oil pump features improved
aeration performance, with reduced friction; a deep sump reduces oil movement under
hard cornering and braking. Oil capacity is 3.2L.

Honda CBF Studio
2019 Honda CB500F

The CB500F’s six­-speed gearbox is very close to that of its RR cousin and uses the same
gear change arm structure and link mechanism. New for 2019 an Assist/Slipper clutch
enables lighter upshifts and smooths out any hard downshifts.

Honda CBF Scene
2019 Honda CB500F
ENGINE
Type Liquid ­cooled, parallel twin
Displacement 471 cc
Bore & Stroke 67mm x 66.8mm
Compression Ratio 10.7 : 1
Max. Power Output 35 kW @ 8600 rpm
Max. Torque 43 Nm @ 6500 rpm
Oil Capacity 3.2 L
FUEL SYSTEM
Carburation PGM FI
Fuel Tank Capacity 17.1 L(inc reserve)
Fuel Consumption (WMTC) 29.4 km/L
ELECTRICAL SYSTEM
Starter Motor
Battery Capacity 12V 7.4AH
ACG Output 23.4A/2000 rpm
DRIVETRAIN
Clutch Type Wet multiplate
Transmission Type 6 speed
Final Drive Chain
FRAME
Type Steel diamond
CHASSIS
Dimensions (L ́W ́H) 2080 mm x 790 mm x 1060 mm
Wheelbase 1410 mm
Caster Angle 25.5 degrees
Trail 102 mm
Seat Height 785 mm
Ground Clearance 145 mm
Kerb Weight 189 kg
SUSPENSION
Type Front Conventional telescopic front forks,
41mm, pre­load adjustable
Type Rear Prolink mono with 9­ stage preload
adjuster, steel square pipe swingarm
WHEELS
Type Front Multi­spoke cast aluminium
Type Rear Multi­spoke cast aluminium
Rim Size Front 17 x MT3.5
Rim Size Rear 17 x MT4.5
Tyres Front 120/70ZR ­ 17M/C
Tyres Rear 160/60ZR ­ 17M/C
BRAKES
ABS System Type 2 ­channel
Type Front Single wavy disk, 320 mm, 2 piston
caliper
Type Rear Single wavy disk, 240 mm, 1 piston
caliper
INSTRUMENTS & ELECTRICS
Instruments Digital speedometer, digital bar graph
tachometer, dual trip meters, digital fuel
level gauge & fuel consumption gauge,
tachometer, dual trip meters, digital fuel
level gauge & fuel consumption gauge,
digital clock, gear position indicator
Security System HISS (Honda Intelligent Security
System)
Headlight Low 4.8W. Hi 12W
