KTM 790 Adventure R

KTM 790 Adventure

After seeing first hand the lengths that KTM have gone to in order to make the dimensions of their new 75-degree offset crank-pin 790 cc parallel twin as minimalist as possible, and then sampling how strong and linear the performance of the 435-degree firing interval engine is myself over many kilometres of fanging the 790 Duke, I am dying to see just how well this engine will translate in to the 790 Adventure, but unfortunately we are going to have to wait until its June 2019 arrival to sample it!

KTM 799cc Parallel Twin - LC8c
KTM 799cc Parallel Twin – LC8c

KTM quote 95 horsepower at 8000 rpm and 88 Nm at 6600 rpm for both 790 Adventure models.  This is 10 hp down on the 790 Duke, but the claimed 88 Nm torque is marginally higher while at 6600 rpm, that peak twist arrives 1400 rpm earlier than the 790 Duke.

KTM Adventure Cylinder Head
LC8c cylinder head

The incredibly small engine packaging (only fractionally larger externally than the 375cc single in the 390 Duke), gives KTM the room to fit a long swingarm and more space for the fuel cell.

KTM Adventure R Static
Fuel tank extends down the sides of the KTM 790 Adventure

The small engine dimensions also allow for plenty of ground clearance while maintaining a reasonable seat height.

KTM Adventure Static
KTM 790 Adventure

Clearance on the 790 Adventure is 233 mm while the 790 Adventure R has 263 mm of clearance.

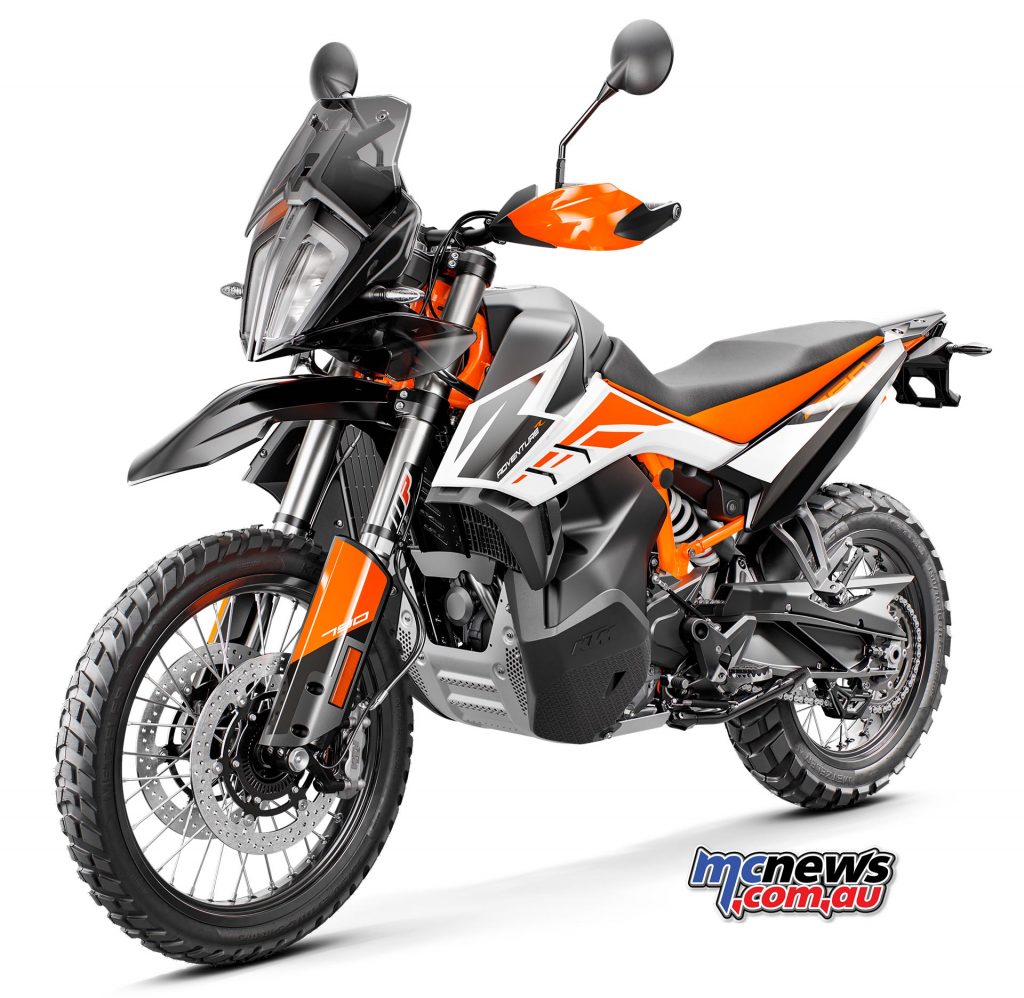

KTM Adventure R Static
KTM 790 Adventure R

Seat height on the Adventure is adjustable between 830 and 850 mm while the saddle on the 790 Adventure R is a taller 880 mm.

KTM Adventure R Static
KTM 790 Adventure R

Both are also claimed to tip the scales at 189kg without their 20-litre fuel cells being topped up.

KTM Adventure Tank
KTM 790 Adventure Fuel cell

Thus we can extrapolate that the 790 Adventure weighs in at 204kg fully fuelled and ready to ride.

KTM Adventure R Static
KTM 790 Adventure R

Again those slim and compact engine dimensions have played their part in keeping the fuel low with the tank extending down alongside the engine, similar to what we once saw in the 990 Adventure models some years ago.

KTM Adventure R Action
KTM 790 Adventure R

KTM claim a fuel range as high as 450 km from the new bikes and while this might be possible when being nursed, realistically a rider will more likely able to count on a 350+ km range in most touring duties.

KTM Adventure Action
KTM 790 Adventure

Predictably, KTM owned WP provides the suspension for both bikes.

KTM Adventure Shock
KTM 790 Adventure WP Shock

Inverted 43 mm forks on the Adventure grow to more premium 48 mm XLPOR forks in the R.

KTM Adventure Forks Compare
KTM 790 Adventure and Adventure R forks (Right)

Suspension travel at both ends is 200 mm for the Adventure and 240 mm on the R.

KTM Adventure Action
KTM 790 Adventure

Both bikes roll on an 18-21 inch spoked rim combination.

KTM Adventure R Static
KTM 790 Adventure R

Easily adjusted from the left bar-mounted menu switch, the KTM 790 Adventure has different ride modes to enable riders to explore the full potential of the bike.

KTM Adventure Headlight
KTM 790 Adventure

Street, Offroad and Rain riding modes, along with the optional Rally mode (standard on the R), alter the behaviour and feeling of the engine.

KTM Adventure Brakes
KTM 790 Adventure and Adventure R feature radial mount four-piston calipers and 320 mm discs up front and 260 mm rear

Changing a ride mode changes the throttle response, the traction control level and, depending on the mode, the peak power.

KTM Adventure Bars
KTM 790 Adventure

The KTM 790 Adventure is also equipped with the state-of-the-art TFT display. Easily readable in all conditions, the full color, 5″ screen’s configuration is variable and automatically adapts to changes in environmental light.

KTM Adventure Action
KTM 790 Adventure

The main information is arranged in a position where the rider can immediately see it, while additional displayed information can be chosen by the rider with the integrated KTM MY RIDE system is integrated. This allows pairing with a smartphone for receiving (or rejecting) phone calls, listening to music and, using the optional app, navigating with on screen turn-by-turn directions along with audio prompts.

KTM Adventure R Technical Specifications
2019 KTM Adventure R Technical Specifications

KTM Adventure Engine Guard
KTM 790 Adventure

KTM Adventure Air Filter
KTM 790 Adventure

KTM Adventure Luggage
KTM 790 Adventure with luggage

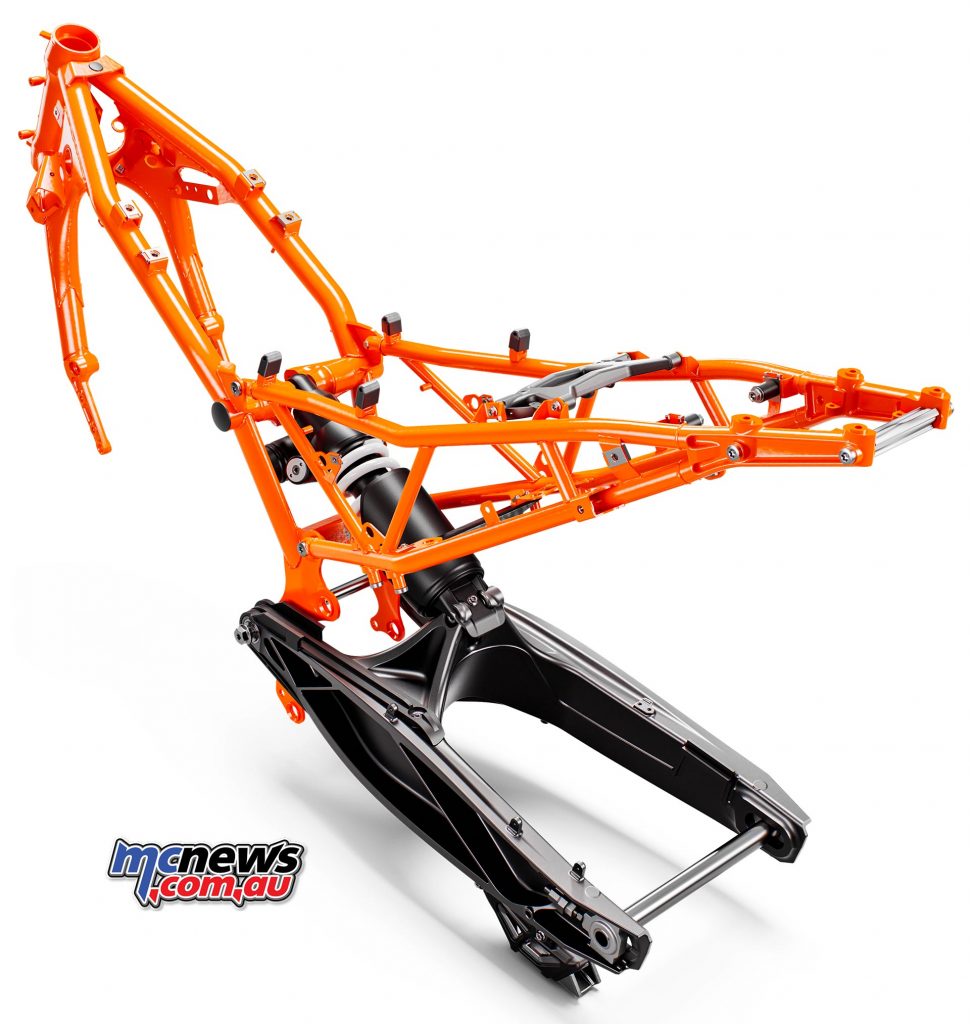

KTM Adventure Frame Subframe Shock
KTM 790 Adventure

KTM Adventure R Static
KTM 790 Adventure R

KTM Adventure R Static
KTM 790 Adventure R

KTM Adventure R Static
KTM 790 Adventure R

KTM Adventure R Static
KTM 790 Adventure R
