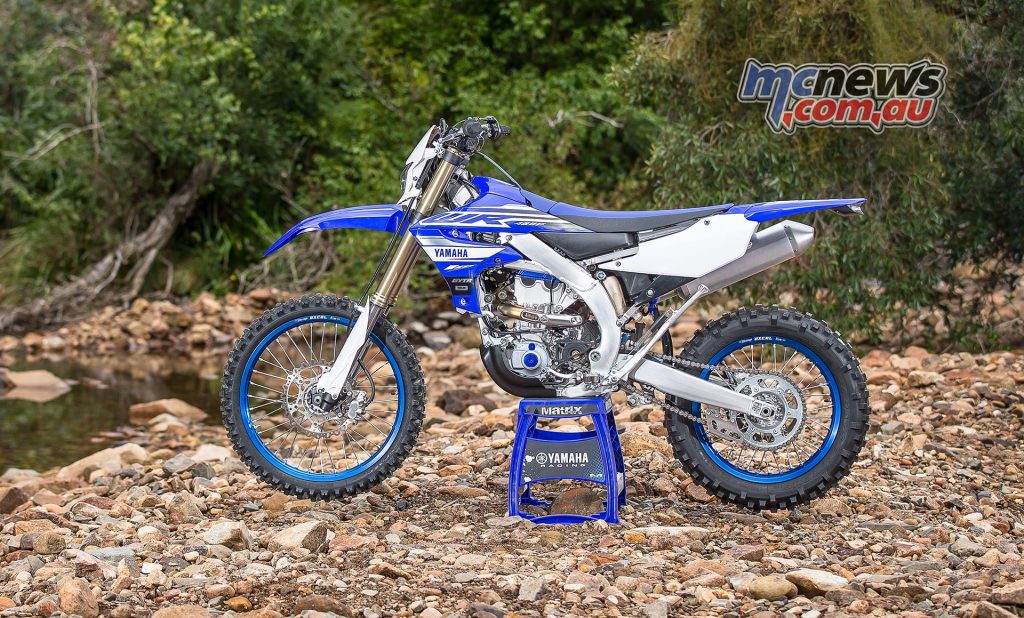

2019 Yamaha WR450F

Yamaha have pulled the covers off an all-new WR450F that has inherited much DNA from its sportier YZ450F sibling for model year 2019.

Yamaha WRF
Yamaha’s 2019 WR450F

Yamaha practically invented the market for durable but hard-core enduro motorcycles when it first brought the WR400F to market 20 years ago. That bike then became the WR426F in 2001 before growing to its currenty 449cc capacity in 2003, and gained electric start.

Yamaha WRF
2019 Yamaha WR450F

In the ensuing years the WR forged a reputation for class leading durability and went on to conquer the enduro sales charts in Australia, year after year. In some years, the WR450F was the highest selling motorcycle in Australia outright across all model categories.

Yamaha WRF

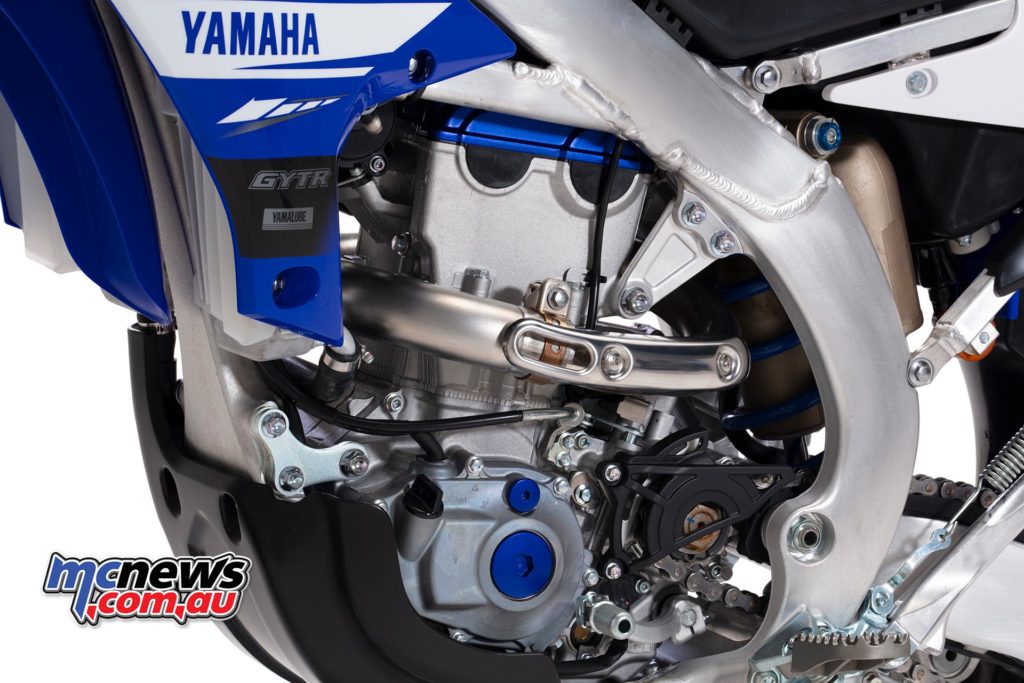

2019 Yamaha WR450F – The WR now adopts the YZ’s reversed engine layout
This new kid on the block has a lot to live up to

In 2010 the YZ450F reversed its engine with the inlet not entering from the front and the exhaust exiting from the rear of the rearward slanted cylinder block. For 2019 the WR also adopts this layout but with intake/exhaust systems, fuel injection and ignition curves all mapped for enduro grunt rather than a motocross style top end.

Yamaha WRF
2019 Yamaha WR450F – The updated 2019 YZ clutch is also features

The WR has not had to wait to adopt the latest YZ technology when it comes to the new and improved clutch though. Both the 2019 YZ450F and WR450F feature a new clutch with more heat resistant plates and a lighter pull at the lever.

Yamaha WRF
2019 Yamaha WR450F

The five-speed gearbox is also shared with the 2019 YZ450F right down to identical ratios. The dog gears have a revised shape for improved performance. For transit sections it would certainly be nice to have a sixth cog but Yamaha are obviously content that their wide spread of torque and smooth EFI response allows for a final drive tall enough to keep engine rpm under control at speed.

Yamaha WRF
2019 Yamaha WR450F – Kick start is now optional with a more effecient electric starter

The standard kick-start back-up has now become and optional extra while the electric starting system has been improved and is claimed to require 60 per cent less load to fire the WR into life than that found on the outgoing model.

Yamaha WRF

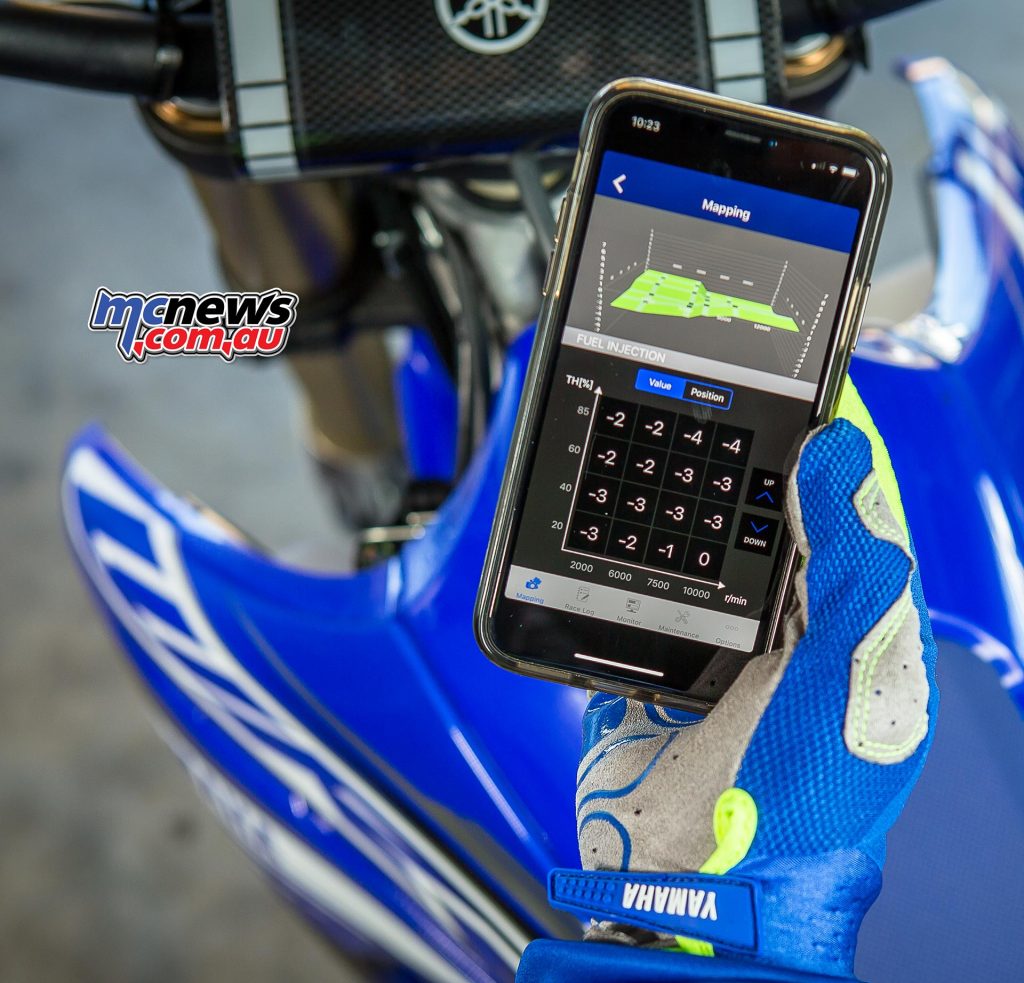

2019 Yamaha WR450F – Electronics are also updated with the new Power Tuner app
Updated electronics

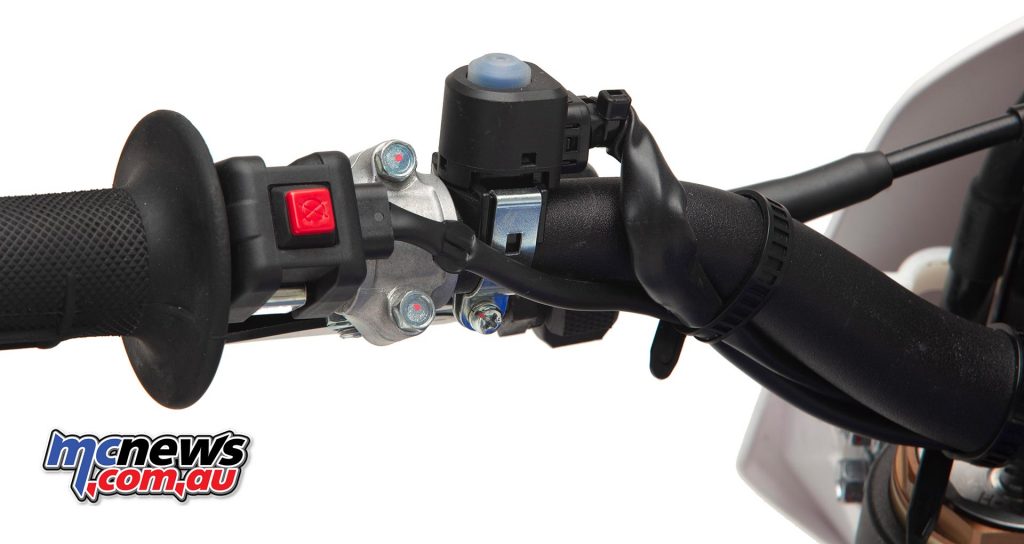

A mapping switch allows the rider to select between two power delivery maps on the fly while the smartphone Power Tuner app has been improved with WiFi connectivity and more functionality.

The backbone of the new WR450F is identical to the current model YZ450F but is tuned for a little more flex via lesser torque on the engine mount brackets.

Yamaha WRF
2019 Yamaha WR450F – KYB twin-chamber inverted forks

WR450F also runs on the same KYB twin-chamber inverted forks as the YZ450F but of course with more enduro specific valving. The diameter of the fork tubes are 1mm larger on the WR450F than found on the YZ450FX and a new leaf spring mid-speed valve is claimed to vastly improve finer control of the fork oil flow and thus suspension response.

Yamaha WRF
2019 Yamaha WR450F – The rear shock is also the YZ unit with modifications

Likewise, the rear shock is also YZ sourced but with enduro valving while the spring is of a higher fatigue strength than the previous model and the reservoir increased by 30ml to help contain temperature spikes.

Yamaha WRF
2019 Yamaha WR450F
How much fuel does it carry?

One thing that has not gone up in spec’ as the WR has progressed through the model years has been fuel capacity. The early models had 12-litre fuel tanks but that went down to 10-litres in 2003, then 8-litres in 2010 before reducing again to 7.5-litres in 2012.

Yamaha WRF

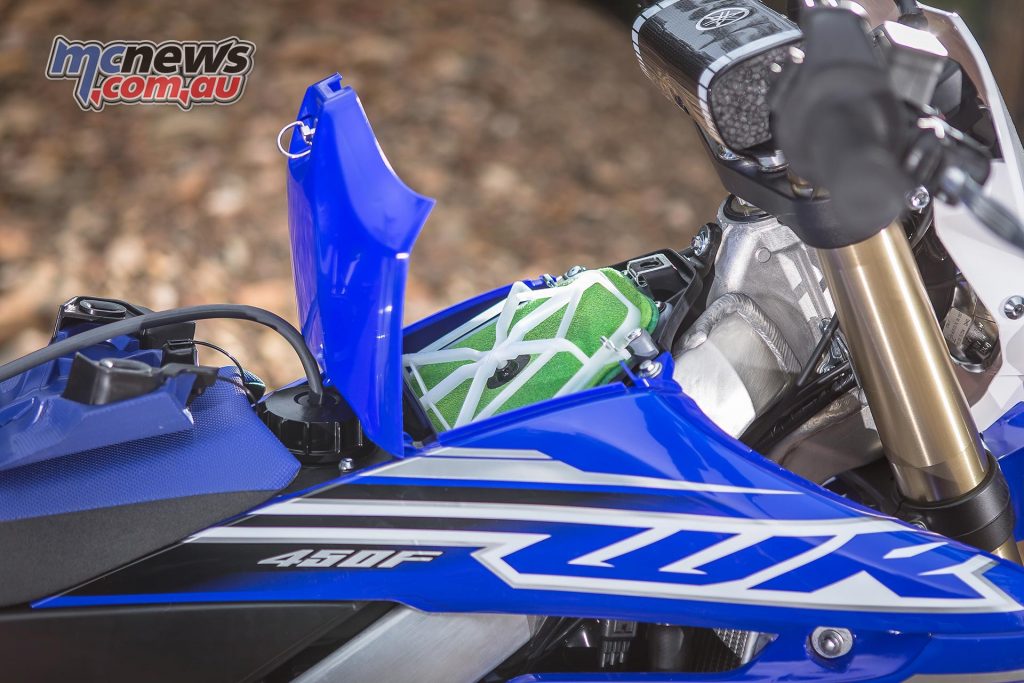

2019 Yamaha WR450F – Fuel capacity is now 7.9L

It improved marginally to 7.6-litres in 2012 and that modest upward trend continues for 2019 with the WR450F gaining a new plastic resin fuel tank. The tank from the current YZ450F was the starting point before the lower portions were extended towards the centre of the bike to help improve mass centralisation while a new more compact fuel pump has also played its part in upping the capacity.

Yamaha WRF
2019 Yamaha WR450F

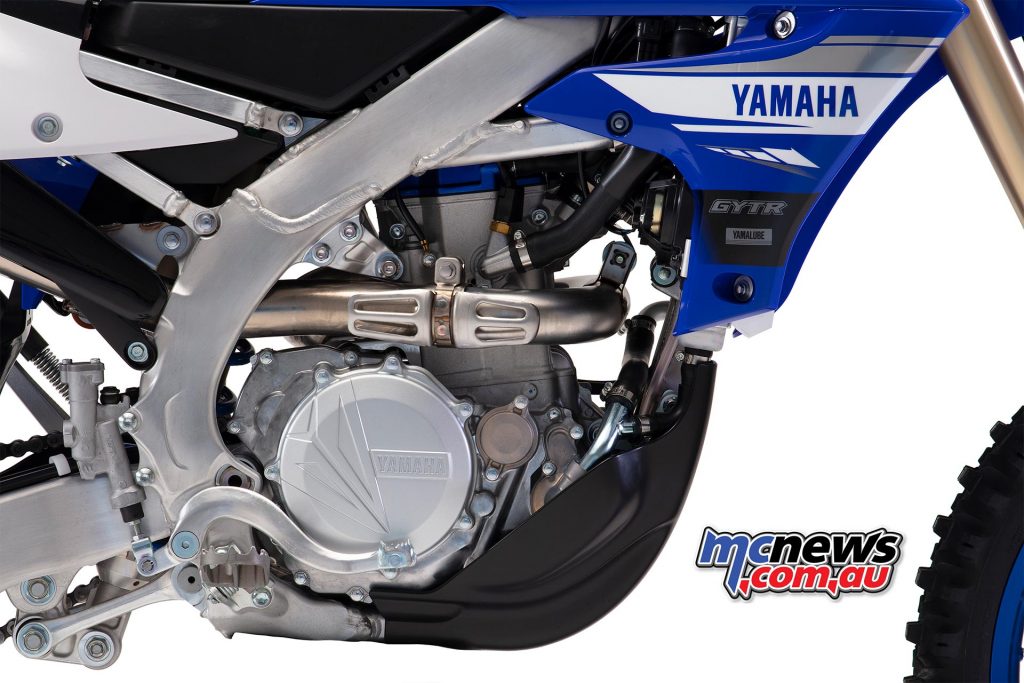

The resin based bashplate is improved for 2019 in every aspect and protects the front lower parts of the frame from impact while also shrouding the water pump and protruding edges of the engine covers. It is also designed to pick up less mud on the trail.

Yamaha WRF

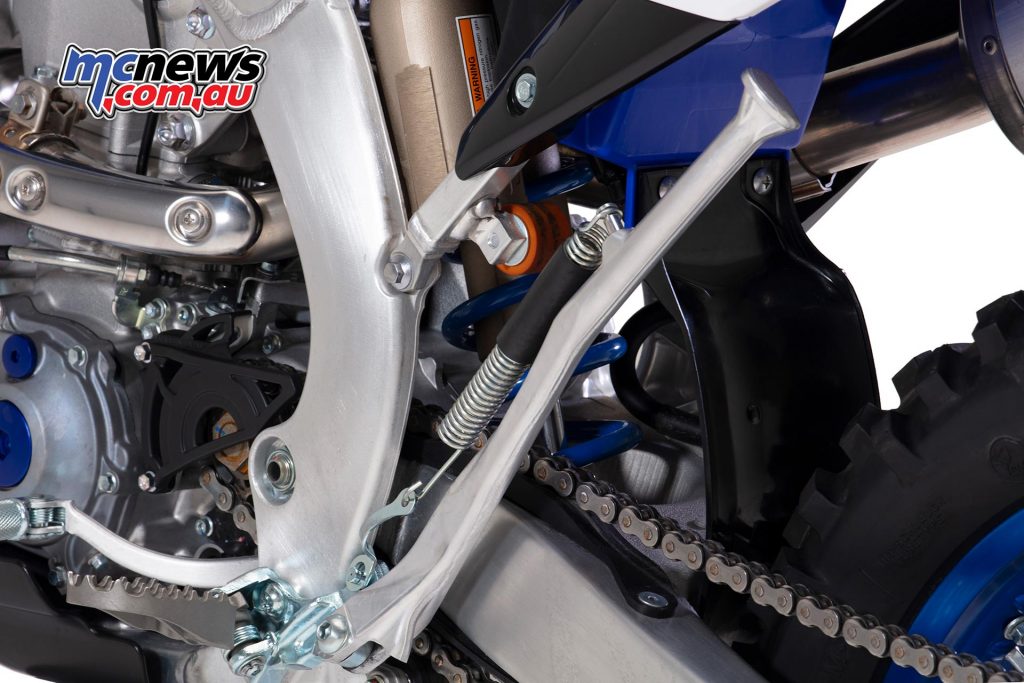

2019 Yamaha WR450F – New aluminium sidestand

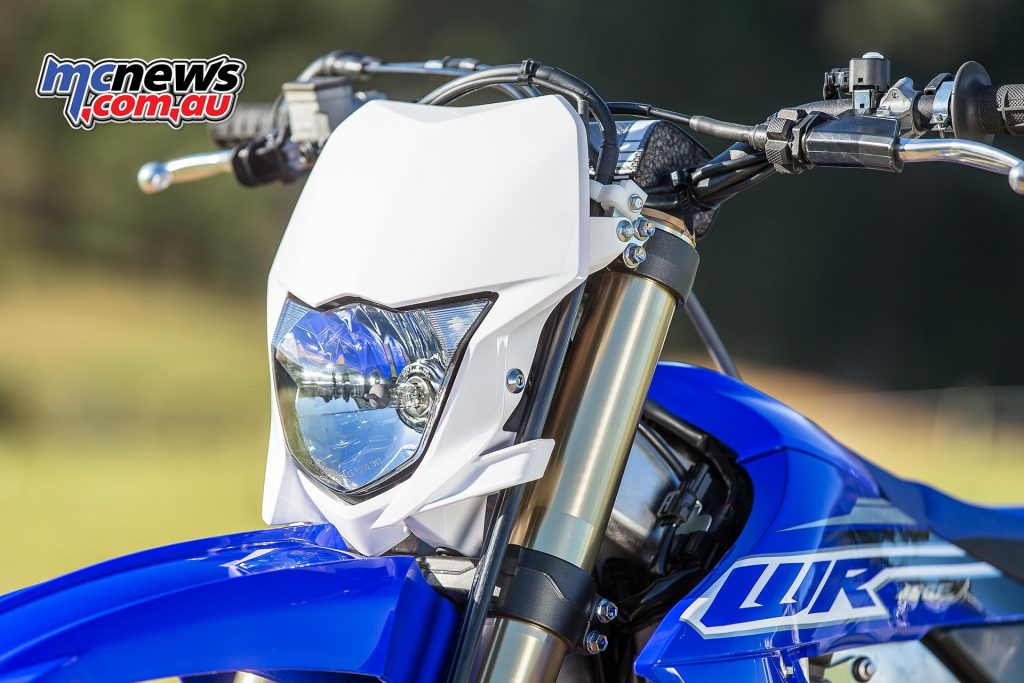

Attention to detail continues down to the sidestand which is now sits higher and better hidden away and made from forged aluminium while up front the headlight cowl is positioned closer to the rider to help make the machine feel smaller from the cockpit.

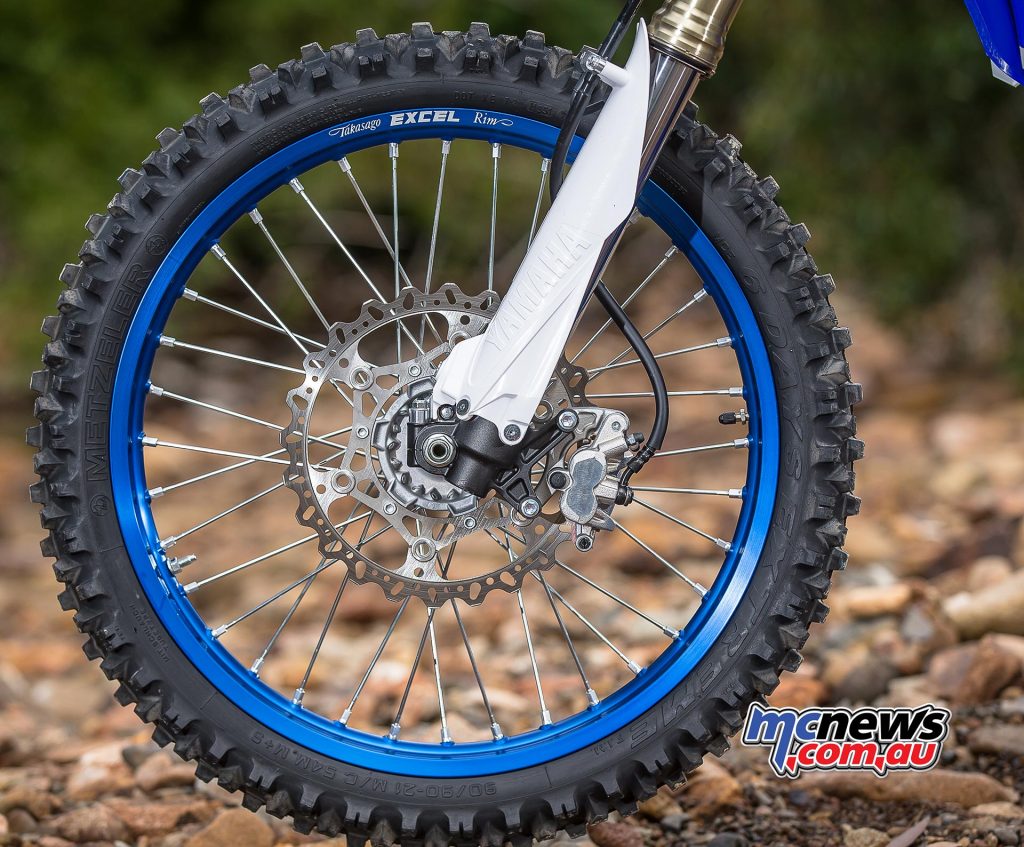

A new front wheel speed sensor connects to an improved display and does away with the speedo drive to make front wheel changes simpler and quicker.

Yamaha WRF
2019 Yamaha WR450F – New front wheel sensor eases wheel changes
How much does it weigh

Yamaha claim a wet weight with 900 ml of oil in the engine sump and the 7.9-litre fuel tank full to the brim of 119 kg.

Yamaha WRF
2019 Yamaha WR450F – Total wet weight is an impressive 119kg

These changes should help propel the WR450F further up the sales charts once again, especially if Yamaha can undercut their European rivals on price. As this is a competition based machine warranty coverage is limited to three-months parts only. The machine is expected in Australia around January 2019 but the price has yet to be set.

Yamaha WRF

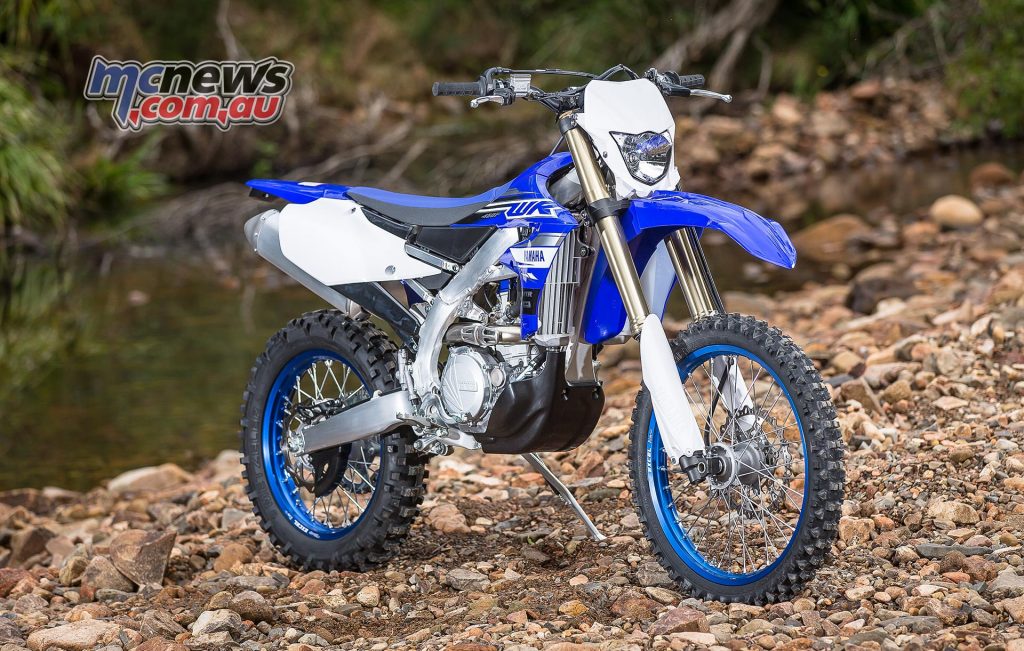

2019 Yamaha WR450F
2019 Yamaha WR450F specifications
  • Engine type – Liquid-cooled, 4-stroke, DOHC, 4-valve
  • Cylinder arrangement – Single reverse fed
  • Displacement – 450 cc
  • Bore × stroke – 97.0×60.9 mm/3.8×2.4 in.
  • Compression ratio – 12.8:1
  • Starting system type – Electric starter
  • Lubrication system – Wet sump
  • Engine oil capacity – 0.90 L
  • Fuel tank capacity – 7.9 L
  • Fuel delivery – Fuel injection
  • Ignition system type – TCI (Transistor Controlled Ignition)
  • Primary reduction ratio – 2.609 (60/23)
  • Secondary reduction ratio – 3.846 (50/13)
  • Clutch type – Wet, multiple-disc
  • Transmission type/Shift type  – Constant mesh, 5-speed / Return
  • Gear ratio (1st–5th)
    1st: 2.417 (29/12)
    2nd: 1.733 (26/15)
    3rd: 1.313 (21/16)
    4th: 1.050 (21/20)
    5th: 0.840 (21/25)
  • Frame type – Semi double cradle
  • Caster angle – 27°10′
  • Trail – 116 mm
  • Weight (with oil and a full fuel tank) – 119 kg
  • Trail – 116 mm
  • Tyre size (front/rear) – 90/90-21/ 130/90-18
  • Overall length – 2175 mm
  • Overall width – 825 mm
  • Overall height – 1270 mm
  • Seat height – 955 mm
  • Wheelbase – 1480 mm
  • Minimum ground clearance – 320 mm
  • Warranty – Three months, parts only
  • Colours – Team Yamaha Blue and White
  • RRP inc GST – TBA
  • Availability – January 2019
