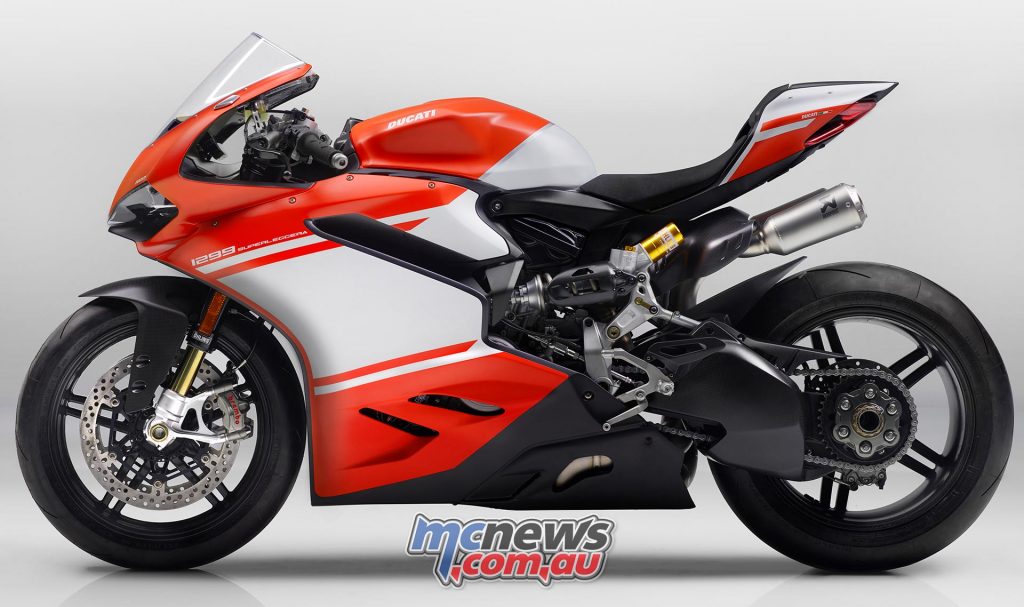

Ducati 1299 Superleggera

Got to hand it to the Italians, when they do a proper special edition, they do it better than anyone.

With almost nothing in common with the rest of the Panigale family, this bike is something truly bloody special.

Well heeled Ducatisti won’t be able to get their cheque books out quick enough!

Ducati’s 1299 Superleggera is the first ever factory bike to be equipped with a carbon fibre frame, swingarm, subframe and wheels.

Underneath that carbon fibre skin and backbone lies the highest-performing version of the Superquadro twin, with 215 hp the 1299 Superleggera is the most powerful factory twin-cylinder ever built.

Ducati 1299 Superleggera

Ducati 1299 Superleggera

What makes the 1299 Superleggera even more exclusive is the new electronics package which uses a 6-axis Inertial Measurement Unit (6D IMU) to manage the incomparable array of electronic controls. This system brings improvements to the Ducati Traction Control EVO (DTC EVO) presented on the 1299 Panigale S Anniversario thanks to the introduction of Ducati Slide Control (DSC), which ensures even higher out-of-the-corner performance.

The 1299 Superleggera is also the first ever Ducati Superbike to be equipped with Ducati Power Launch (DPL) and also features the Engine Brake Control (EBC) seen on previous versions. Keeping the explosive performance of the 1299 Superleggera under control is also a newly calibrated Bosch Cornering ABS system that ensures matchless braking in complete safety.

The 1299 Superleggera has the word ‘exclusive’ written all over it, even when it comes to the number being made: only 500 such bikes are to be built. Together with the motorcycle, purchasers get a track kit which includes a complete Akrapovič titanium racing exhaust, a racing screen, plate holder removal kit, kickstand removal kit, machined-from-solid mirror replacement plugs, front and rear paddock stands and a bike cover.

The 2017 Ducati 1299 Superleggera will arrive in Australia around April/May next year.

The price….?  As the saying goes if you have to ask, you can’t afford it…  If you have the $109,990 + ORC for a Superleggera laying around then you need to enter a reservation process managed by Ducati, whereby a customer needs to place a 20 per cent, $22,000 deposit with a Ducati dealer, then Ducati will confirm the order and supply date. The process is put in place to ensure that bonafide customers and Ducatisti get their best chance at securing one of these special beats.

Ducati 1299 Superleggera Video

Ducati 1299 Superleggera – Features
  • Carbon fibre monocoque frame
  • Carbon fibre single-sided swingarm
  • Carbon fibre wheels with aluminium hubs
  • Carbon fibre rear subframe
  • Aluminium tank
  • Carbon fibre fairing
  • Multi-adjustable Öhlins FL936 upside down 43 mm fork
  • Multi-adjustable Öhlins TTX36 shock absorber with titanium spring
  • Brembo MCS 19.21 radial front pump
  • Brembo TT29OP1 brake pads with increased friction coefficient
  • ID number on top yoke: 1/500
  • Superquadro engine with 215 hp at 11,000 rpm and 14.9 kgm at 9,000 rpm
  • 2-segment pistons with a diameter of 116 mm to boost the compression ratio and aluminium cylinder liners to reduce weight
  • Lighter crankshaft with tungsten balancing pads
  • Titanium con rods
  • Sand-cast crankcase
  • Increased-diameter titanium intake and exhaust valves
  • Cylinder head with specially developed intake and exhaust ducts
  • Camshafts with increased lift
  • Complete all-titanium Akrapovič exhaust with high-mount dual silencer*
  • 6D Inertial Measurement Unit (IMU) by Bosch
  • Ducati Traction Control EVO (DTC EVO)
  • Ducati Slide Control (DSC)
  • Ducati Wheelie Control EVO (DWC EVO)
  • Engine Brake Control (EBC)
  • Bosch Cornering ABS
  • Ducati Power Launch (DPL)
  • Ducati Quick Shift (DQS) up/down
  • Dedicated switchgear controls to adjust DTC, DSC, DWC and EBC during on-track use ad DPL activation
  • Ducati Data Analyser + (DDA+)
  • Lithium-ion battery
2017-ducati-1299-superleggera-4

Ducati 1299 Superleggera

Ducati 1299 Superleggera Race Kit
  • Complete titanium Akrapovič racing exhaust with high dual silencer
  • Bike cover
  • Front and rear paddock stand
  • Plate holder removal kit
  • Racing screen
  • Kickstand removal kit
  • Machined-from solid mirror replacement plugs
Ducati 1299 Superleggera

Ducati 1299 Superleggera

Ducati 1299 Superleggera in detail

Every step of the design of the frame and swingarm was handled internally by Ducati, making full use of Ducati Corse experience in terms of calculation methods, material selection and test methods. During development, components underwent stringent final tests to ensure integrity under all possible conditions and each item underwent a quality control process similar to that used in MotoGP.

Carbon fibre component structural quality is ensured by three different NDI (Non Destructive Inspection) methods used in the aerospace industry:

  • Active Transient Thermography is a leading edge NDI (Non Destructive Inspection) technology commonly used in Aerospace. It allows for continuous inspection of a given area ensuring 100% inspection coverage, and is used especially along complex shapes and edges
  • Ultrasonic Phased Array is based on Pulse Echo technique that has the advantage of bidimensional visualisation. It is more detailed than standard testing procedures thanks to higher coverage and higher sensitivity
  • Computed Axial Tomography is the most reliable NDI technique and consists of X-ray 3D inspection that ensures 100% volumetric analysis

These checks are made on every single manufactured part to verify their constructive quality.

Ducati 1299 Superleggera

Ducati 1299 Superleggera

The monocoque frame, made of high-strength carbon fibre and a resin system resistant to high temperatures, also has 7075 aluminium alloy inserts that are co-laminated into the composite structure.

This construction technology has resulted in weight savings of 40% (-1.7 kg / -3.7 lbs) compared to the monocoque frame on the 1299 Panigale.

The single-sided swingarm – again made of high-strength carbon fibre and a resin system resistant to high temperatures with 7075 aluminium alloy inserts co-laminated into the composite structure – provides an 18% weight saving (-0.9 kg / -2 lbs) compared to its aluminium counterpart on the 1299 Panigale.

Moreover, the 1299 Superleggera features a carbon fibre rear subframe, similar to the one used on the 1199 Superleggera, plus carbon fibre fairing, front mudguard, rear mudguard and exhaust heat guard.

The cutting-edge wheels of the 1299 Superleggera are also made of high-strength carbon fibre, with aluminium hubs screwed into the composite structure. Compared to their forged aluminium counterparts, these wheels lighten the bike by a total of 1.4 kg (3.1 lbs) and offer 26% less rolling resistance at the front and 44% less at the rear, resulting in nimbler handling. The 1299 Superleggera wheels mount Pirelli Diablo Supercorsa SP tyres.

Ducati 1299 Superleggera

Ducati 1299 Superleggera

Superbike suspension and brakes

The refined chassis set-up of the 1299 Superleggera is completed by Öhlins suspension and true Superbike-calibre Brembo brakes. The multi-adjustable 43 mm Öhlins FL936 upside-down fork on the 1299 Superleggera weighs 1.35 kg (3 lbs) less than the Öhlins fork on the Panigale R. At the rear, instead, the multi-adjustable Öhlins TTX36 shock absorber has a titanium spring that shaves off another 0.5 kg (1.1 lb) with respect to the steel unit fitted on the Panigale R.

A look at the braking system reveals two 330 mm Brembo discs up front, gripped by Brembo M50 monobloc calipers, with new TT29OP1 brake pads, controlled by a Brembo MCS 19.21 radial pump. At the back, instead, is a single 245 mm disc.

The most powerful Superquadro ever

A whopping 215 hp at 11,000 rpm and 14.9 kgm at 9,000 rpm. These are the incredible power and torque values delivered by the Superquadro twin cylinder engine that powers the 1299 Superleggera. To achieve such performance Ducati engineers have made profound changes to some of the main engine components, starting with the lightened crankshaft which has a larger crank pin and tungsten balancing pads.

The con-rods, in titanium, are new, as are the 116 mm diameter pistons – now with just two segments as on Superbike engines – with machined crowns that raise the compression ratio to 13:1.

Another important new development concerns the cylinder liners, in aluminium as opposed to steel as seen on the 1299 Panigale. With the addition of a lighter flywheel, the “engine core” (crankshaft, conrods, pistons, cylinder liner, flywheel) is about 2.4 kg (5.3 lbs) lighter than its counterpart assembly on the 1299 Panigale (-21.5%).

The cylinder heads have also been given an overhaul. The diameters of the valves, both in titanium, have been increased; they are now even wider than those used on Superbike competition bikes. The intake valves have a diameter of 48 mm as opposed to the 46.8 mm on the 1299 Panigale; the exhaust valves have a diameter of 39.5 mm (against 38.2 mm on the 1299 Panigale). Consequently, intake and exhaust ducts have also undergone development, improving fluid dynamics thanks also to new camshafts that offer both improved profiles and increased valve lift. This model has been the focus of intense performance and weight reduction research, and the cylinder heads are no exception: their weight has been cut by about 0.4 kg (0.9 lbs).

Ducati 1299 Superleggera

Ducati 1299 Superleggera

The 1299 Superleggera features a clutch with new slipper and self-servo system, giving heightened ‘feel’ and ride stability thanks also to the use of a new forged aluminium clutch basket.

Increased performance has, naturally, required the adoption of technical solutions to ensure reliability and compliance with noise emissions standards. Numerous parts of the twin-cylinder engine have been modified: for example, the crankcase is now sand-cast and the new timing system features a “silent” chain.

Overall, then, in terms of weight, the Superquadro, is 2.1 kg (4.6 lbs) lighter than the engine on the 1299 Panigale.

The intake system on the 1299 Superleggera has also been revised. It mounts a high-permeability, larger-surface P08 Sprint Filter of SBK derivation. The throttle body features new aerodynamic throttle openings with a profile designed to improve airflow while intake horn heights have been optimised for each cylinder head, unlike the 1299 Panigale which has horns of the same length.

Lastly, the 1299 Superleggera has a complete all-titanium Akrapovič exhaust with a high dual silencer, just like the one on the official Panigale that competes in the World Superbike championship.

The Superquadro that powers the 1299 Superleggera is not just the most powerful twin-cylinder road engine built by Ducati in its entire history: it’s also perfectly EURO 4 compliant and delivers 10 hp (+ 4.9%) and 0.2 kgm (+ 1.5%) more than the engine on the 1299 Panigale.

Moreover, the ultra-light lithium battery on the 1299 Superleggera saves 1.7 kg (3.7 lbs) compared to the unit on the 1299 Panigale.

For those aiming to use the bike only on the track, the 1299 Superleggera comes with a track kit that, as regards the engine, includes a complete Akrapovič titanium exhaust. This exhaust is 4kg lighter than its road counterpart and boosts power by 5 hp.

Ducati 1299 Superleggera

Ducati 1299 Superleggera

MotoGP electronics

The 1299 Superleggera is the first Bologna-built bike to be equipped with the new electronic package, which make full use of the 6-axis Inertial Measurement Unit (6D IMU). This electronic package includes DTC EVO, DSC, DWC and EVO and provides the rider with a bike control experience that comes extremely close to that of a MotoGP bike.

DTC EVO

The DTC EVO on the 1299 Superleggera derives from the system already presented on the 1299 Panigale S Anniversario and is based on an all-new algorithm that ensures faster, more precise intervention. The DTC EVO interfaces with the Bosch Inertial Measurement Unit (IMU), constantly measuring the motorcycle’s lean angle and using it to accurately calculate the degree of intervention needed to ensure suitable rear wheelspin (according to the DTC EVO level setting) and so provide better handling. Moreover, the DTC EVO also acts on the throttle body valves and controls spark and injection advance. In all situations in which fast intervention of the DTC EVO is not required, use of the throttle body valves ensures maintenance of optimal combustion parameters, ensuring more fluid engine response and intervention.

With simpler types of traction control, detection of rear wheelspin sees the system intervene to hold it in check. When optimal grip is re-established the system reduces intervention until spin reoccurs, and the cycle repeats. This produces a graph that shows intervention oscillating around a theoretical “ideal intervention line” that represents the traction limit. DTC EVO reduces the magnitude of those oscillations, making the system operate closer to the perfect intervention line. This is particularly advantageous in situations where grip changes, such as when the rear tyre becomes worn.

In addition to this enhanced intervention precision, when set to “1” or “2”, the DTC EVO adds a new function that lets the user ride the motorcycle at a level that would previously only have been possible for experts or pros. Now, when the bike is leaned over, the rider can use the throttle to request more wheelspin than that obtained with the normal intervention level, allowing the motorcycle to pivot around its front wheel and complete the cornering line. DTC EVO allows riders to do this while keeping safety parameters under control, effectively letting then ‘close’ the taken line with the rear wheel.

Ducati Slide Control (DSC)

The introduction of the 6D IMU has allowed Ducati Slide Control (DSC) – developed jointly with Ducati Corse – to be added to Ducati Traction Control EVO (DTC EVO). This new system provides the rider with further support by controlling the torque delivered by the engine as a function of the slide angle; its goal is to improve out-of-the-corner performance by preventing slide angles that might otherwise be difficult to handle. The DSC relies on the 6D IMU that provides the vehicle control unit with crucial information of motorcycle dynamics (such as lean angle, acceleration and much more). Thanks to this data – and depending on the user-selected level – the DSC extends the performance range of the bike for everyone, providing improved assistance under extreme riding conditions.

Like the DTC EVO, the DSC controls torque reduction by acting on the throttle body valves, decreasing spark advance and reducing injection. In every situation in which fast intervention of the DSC is not required, use of the throttle body valves ensures maintenance of optimal combustion parameters, ensuring more fluid engine response and intervention.

DSC has three different settings: switching from level 1 to level 3 results in easier control of slide angles that would otherwise be difficult to handle. DSC intervention levels can be changed by going to the menu, from where you can also set the DTC EVO and DWC EVO values. It’s also possible to set direct DSC control via the Up and Down keys on the left handlebar. The DSC setting is always shown on the display.

Ducati Wheelie Control EVO (DWC EVO)

The 1299 Superleggera also comes equipped with the latest version of Ducati Wheelie Control (DWC). This system – again with the EVO tag – has been overhauled in terms of both controller structure and algorithm, providing a closer link with the rider’s needs. This is an evolution of the system that equips the 1299 Anniversario.

Ducati Power Launch (DPL)

Another new feature on the 1299 Superleggera is Ducati Power Launch (DPL), the first time it has appeared on a Panigale. This 3-level system ensures lightning-fast starts, letting the rider focus on releasing the clutch. Once set, the rider simply engages first gear and opens the throttle. During the first stage of moving off, while the rider is modulating clutch release, the DPL stabilises the engine at optimal revs as a function of the selected level. In the second phase, when the clutch has been fully released, the DPL controls torque delivery to give acceleration that matches the chosen level. The DPL makes use of the DWC functions and always keeps DTC active to ensure complete safety at all times.

Automatic disengagement of the system occurs above the end-of-start speed, or once third gear is selected. To protect the clutch, a specially developed algorithm allows only a limited number of consecutive starts. The number of ‘launches left’ returns to its normal status once the user rides the bike normally.

The DPL has three different levels, set by simultaneously pressing the Up and Down keys on the left handlebar. Level 1 favours high-performance starts, level 3 is safer and more stable.

Bosch Cornering ABS

The 1299 Superleggera also features a revised Bosch Cornering ABS system. First of all, it has been recalibrated to take into account the new revolving mass represented by the ultra-light carbon fibre wheels; secondly, it has been equipped with a new operating logic that ensures safer, more effective braking when cornering. This latest system version offers improved ABS control when the motorcycle is leaned over, ensuring better performance in terms of both attainable deceleration and safety.

Engine Brake Control (EBC)

The EBC (Engine Brake Control) system has been developed to help riders optimise vehicle stability under extreme turn-in conditions in MotoGP and Superbike championship races by balancing the forces applied to the rear tyre under severe engine-braking conditions. The EBC monitors the throttle position, selected gear and crankshaft deceleration rate under heavy braking and administers precise Ride-byWire throttle openings to balance the torque forces acting on the tyre. There are three EBC levels. Set via the 1299 Superleggera control panel, they are automatically integrated into its three Riding Modes to provide riders with even more incredibly efficient assistance.

Ducati Data Analyser+ GPS (DDA+ GPS)

Lastly, the 1299 Superleggera is equipped with the Ducati Data Analyser+ GPS (DDA+ GPS) as a standard feature. This system, which includes software (also for Mac users) and a USB-ready data retrieval card, allows assessment of both motorcycle and rider performance by showing specific info channels in graph form. The DDA+ GPS is a latest-generation Ducati Data Analyser system with a GPS function that automatically records lap times when the bike crosses a circuit start/finish line. As the rider crosses the finish line he presses the beam flasher button and the highly innovative system logs the coordinates of that position and then automatically logs each lap time as the motorcycle completes the lap.

An essential piece of equipment for track use, the DDA+ records numerous channels of data including throttle opening, vehicle speed, engine rpm, gear selection, engine temperature, distance travelled, laps and lap times. There is also a dedicated channel to record the torque reduction – depicted in graph form – requested by the systems that make up the new electronics package. At the end of a ride or track session, the data can be downloaded for comparison and in-depth analysis of rider and motorcycle performance.

Ducati 1299 Superleggera

Ducati 1299 Superleggera

If you prefer your carbon-framed bike to have four-cylinder power check out BMW’s new HP4 Race

Ducati 1299 Superleggera

Engine

Engine

Superquadro: L-twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled

Displacement

1,285 cc

Bore X stroke

116 x 60.8 mm

Compression ratio

13.0:1

Power

158.1 kW (215 hp) @ 11,000 rpm

Torque

146.5 Nm (108,0 lb-ft) @ 9,000 rpm

Fuel injection

Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Full Ride-by-Wire elliptical throttle bodies with aerodynamic valve and optimized trumpets

Exhaust

2-1-2 system, primary tubes in titanium. Twin titanium mufflers. 2 lambda probes and 2 catalytic converters

Transmission

Gearbox

6 speed with Ducati Quick Shift (DQS) up/down

Primary drive

Straight cut gears; Ratio 1.77:1

Ratio

1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24

Final drive

Chain; Front sprocket 15; Rear sprocket 39

Clutch

Hydraulically controlled slipper/self-servo wet multiplate clutch

Chassis

Frame

Monocoque in carbon fiber

Front suspension

Fully adjustable 43mm USD Öhlins FL 936 fork with TiN treatment, billet fork bottoms and lightweight stress-optimized outer tubes, lightweight springs

Front wheel

10-spoke carbon fiber 3.50″ x 17″

Front tyre

Pirelli Diablo Supercorsa SP 120/70 ZR17

Rear Suspension

Fully adjustable single Öhlins TTX36 shock with titanium spring, adjustable linkage between progressive/flat. Carbon fiber single-sided swingarm

Rear Wheel

10 spokes carbon fiber 6.00” x 17”

Rear tyre

Pirelli Diablo Supercorsa SP 200/55 ZR17

Wheel travel (front/rear)

120 mm (4.7 in) – 130 mm (5.1 in)

Front brake

2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Evo M50 4-piston callipers with Cornering ABS, Brembo MCS 19-21 adjustable-ratio front brake master cylinder, remote lever adjuster

Rear brake

245 mm disc, 2-piston calliper with Cornering ABS

Instrumentation

Colour TFT display

Dimensions and weights

Dry weight

156 kg (343.9 lb) *

Kerb weight

167 kg (368.2 lb) *

Seat height

830 mm (32.48 in)

Wheelbase

1.456 mm (57.32 in)

Rake

24°

Front wheel trail

98 mm (3.86 in)

Fuel tank capacity

17 l – 4.5 gallon (US)

Number of seats

Single seat

Standard equipment

Riding Modes, Power Modes, ABS cornering, DTC, DWC, DSC, DPL, DQS u/d, EBC, DDA+ w/GPS module, Fully RbW. Rapid setting DTC, DWC, DSC, EBC

Additional equipment

Track Kit: Titanium racing exhaust, racing windshield, machined mirror block-off plates, license plate mount removal plug, side-stand removal kit, front and rear paddock stands, paddock bike cover

Warranty

Warranty (months)

24 months unlimited mileage

Maintenance (km/months)

12,000 km (7,500 mi) / 12 months

Valve clearance adjustment (km)

24,000 km (15,000 mi) – street use

Emissions

STANDARD

Euro 4*

CONSUMPTION

Emissions and consumptions currently undergoing certification

* US version (non Euro4) Dry weight 154 kg (339.5 lb), Kerb weight 165 kg (363.7 lb)

The power values indicated above are measured using a chassis dynamometer. Homologated power data, as quoted in the Bike Registration Document, are measured using an engine dynamometer according to the homologation regulation. The two power values may differ because of the different measurement equipments.
