Yamaha FZ750 0U45
Eddie Lawson’s 1986 Daytona 200 win
When the chequered flag fell at Daytona in March 1986, it didn’t just signal another Eddie Lawson masterclass. It marked the moment Yamaha’s bold Genesis concept came of age, delivered by a factory-built Superbike that remains one of the most fascinating works machines the company ever produced: the Yamaha FZ750 0U45.
This is the story of that bike, the win that defined it, and the era it helped reshape.
A New Era on the Banks
The mid-’80s were a period of upheaval in American road racing. The AMA had retired the exotic Formula 1 GP-style machines from the Daytona 200 and declared the future to be production-based Superbikes. Lower costs, closer racing, and stronger showroom relevance were the aims.
Manufacturers scrambled to respond. Kawasaki had the GPZ, Honda had the VFR-based RVF kits waiting in the wings, Suzuki was gearing up with the GSX-R, and Yamaha had just unveiled something radically different: the FZ750 Genesis.
With its 45-degree forward-canted engine, straight-through downdraft carburation and five-valve-per-cylinder head, the FZ wasn’t just another UJM; it was a statement. And while the road bike made its mark immediately, Yamaha’s racing department in Iwata saw an even higher ceiling.
Daytona-level high.
Building the 0U45 – A Factory Superbike in Disguise
For the 1986 AMA season and the Daytona 200, Yamaha produced a small handful of factory specials, coded 0U45, that bore a surface resemblance to the FZ750 but shared very little beneath the fairing.
This wasn’t a hopped-up road bike. It was a hand-built works Superbike, crafted specifically for the unique demands of the Daytona high banks.
Engine: The Five-Valve Weapon
Yamaha kept the five-valve architecture but went to town everywhere else:
- Full works internals
- Hotter cams and bespoke timing
- Race-kit lubrication and cooling
- Dry clutch
- Strengthened cases and revised oiling pathways
- 130+ hp was a huge figure for the time
The forward-canted layout was perfect for Daytona, keeping the centre of gravity low and feeding the carbs with cool, direct airflow.
Chassis: Steel, Braced and Very Much Not Stock
While the showroom FZ used a steel double-cradle frame, the 0U45’s version was heavily modified:
- Extensive gusseting and bracing
- Altered rigidity balance for stability at 160 mph
- Revised rising-rate rear suspension
- Factory-spec forks and shock
- Magnesium Marvic wheels
- Brembo braking package
The stance was lower, leaner, and far more aggressive than the production FZ750. It was built for one purpose: stability and endurance at sustained high speed.
The Racer’s Touches
Mechanics, supervised by Lawson’s Crew Chief Kel Carruthers, added the requisite racer-focussed details.
- High clip-ons for Daytona’s long full-throttle stints
- Deep windscreen
- Lightweight loom and minimal cockpit
- Michelin slicks explicitly developed for the banking
- The handwritten mantra — “Ya’ gotta want it!” on the tank
It wasn’t glamorous. It wasn’t as polished or beautiful as the YZR500 OW81 that Eddie rode the same year to the 500 cc Grand Prix World Championship. But it was somewhat of a weapon.
Calling in a World Champion
Eddie Lawson had already won a 500cc World Championship in 1984 and was central to Yamaha’s GP programme. But he had a strong history at Daytona, winning the 200 in 1981, and Yamaha wanted a sure-handed rider capable of delivering a statement result in the new Superbike era.
Lawson was that rider.
The grid he faced was a who’s-who of the coming decade: Wayne Rainey, Kevin Schwantz, Mike Baldwin, Fred Merkel, Wes Cooley, and more. And at this time, American racing was producing future legends almost annually.
Daytona was the crucible, and Yamaha arrived armed.
Qualifying – Lawson Sends a Message
Lawson immediately put the paddock on notice: the factory FZ750 was very fast, and he was ready to do the work.
He took pole with a 1m56.228 lap record, demonstrating the machine’s stability on the banking, with it tracking like it was on rails. For a bike still built around a steel frame, that impressed everyone.
The 1986 Daytona 200 – A Controlled Demolition
The Daytona 200 is a war of attrition disguised as a sprint. Engines cook, tyres shred, brakes boil, and riders unravel. But the 0U45 had been engineered with precisely this stadium in mind.
From the drop of the green, Lawson and Wayne Rainey lit up the opening laps, punching through lapped traffic in single-digit laps and setting a blistering pace that shocked even seasoned observers.
Behind the leaders, the field suffered Daytona’s usual brutality: mechanical failures, vibration-induced electrical issues, shredded tyres, chewed sprockets and several crashes in the treacherous braking zone off the banking.
Lawson, meanwhile, never put a wheel wrong.
By the final stint, the race was his to manage. Smooth, steady, and ruthlessly consistent, he brought the 0U45 home to a decisive victory over Yoshimura Suzuki’s Kevin Schwantz. Team Honda’s Fred Merkel completed the podium and went on to win his third straight AMA Superbike Championship that year on the Honda VFR750F.
Wayne Rainey had lost too much time after chunking a tyre but had shown the speed of Honda’s new alloy-framed VFR750F after being recorded at 171.42 mph on the banking. 1985 winner Freddie Spencer had pulled out of the event with a sinus infection.
We reached out to the now 67-year-old Eddie to ask him to recall a little of the experience for us from his home in Lake Havasu, Arizona.
Eddie Lawson
Coming off the Grand Prix bike to the FZ 750 was, of course, a little adjustment; however, Yamaha had prepared a rocket for me. They also installed a slipper clutch in the bike that was new technology at the time…and they told me not to talk about it. I had a good race with Wayne Rainey on the Honda for much of the 200 mile, but my bike just pulled strong on the high bank. It’s a great memory of mine from 40 years ago this year!”
The Significance
It marked:
- Yamaha’s first Daytona 200 win of the Superbike era
- Yamaha’s first AMA Superbike victory
- A defining moment for the Genesis platform
The 0U45 had its vindication.
Aftermath – Towards the Deltabox Future
The 0U45 had a short frontline life, but its DNA lived on.
Many lessons from the programme fed into the FZR750 and FZR1000 Deltabox machines, which would define Yamaha’s Superbike identity for the next decade. The airflow philosophies, chassis rigidity, engine and frame integration, and packaging choices were all sharpened by the 0U45 project.
And the win changed the narrative around the FZ750 road bike. Reviews that followed frequently connected road and track:
“Buy an FZ750, and you’re buying the engine that just won Daytona.”
It was marketing gold, but it was also largely accurate.
The 0U45 Today
A Museum Piece That Still Looks Fast

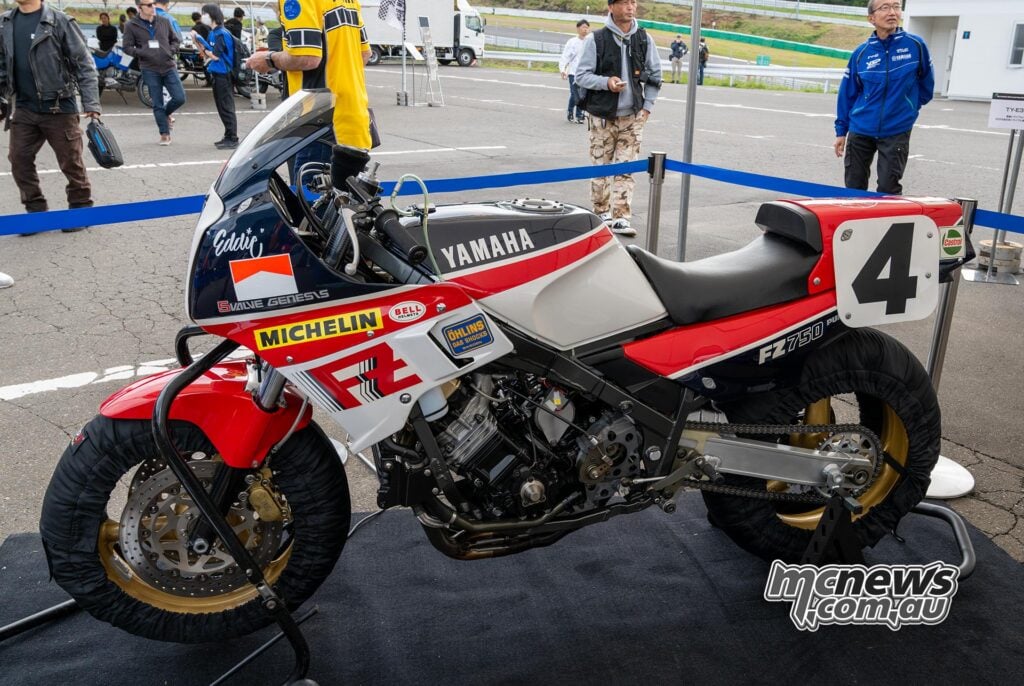

Lawson’s actual Daytona-winning 0U45 now sits in Yamaha’s Communication Plaza museum in Iwata, but was brought to play at the recent My Yamaha Motorcycle Day at Sugo, where we took the shots you see on this page.
Restored and preserved, it’s one of the most unassuming factory Superbikes you’ll ever see, no carbon fibre, no aero tricks, no alloy beam frame.
Just steel tubes, a five-valve four, and the unmistakable Marlboro red and white.
However, it still looks ready to howl around the banking.
Why the 0U45 Still Matters
In an era before traction control, data rigs, or CAD-driven chassis development, the 0U45 was a turning point. It proved that Yamaha’s radical new engineering direction worked.
It is one of Yamaha’s great “bridge” machines, linking the analogue Superbikes of the early ’80s with the emerging Deltabox revolution to come.
And in Eddie Lawson’s hands at Daytona in 1986, it became unforgettable.
