2016 Yamaha WR450F
2016 Yamaha WR450F Technical specifications

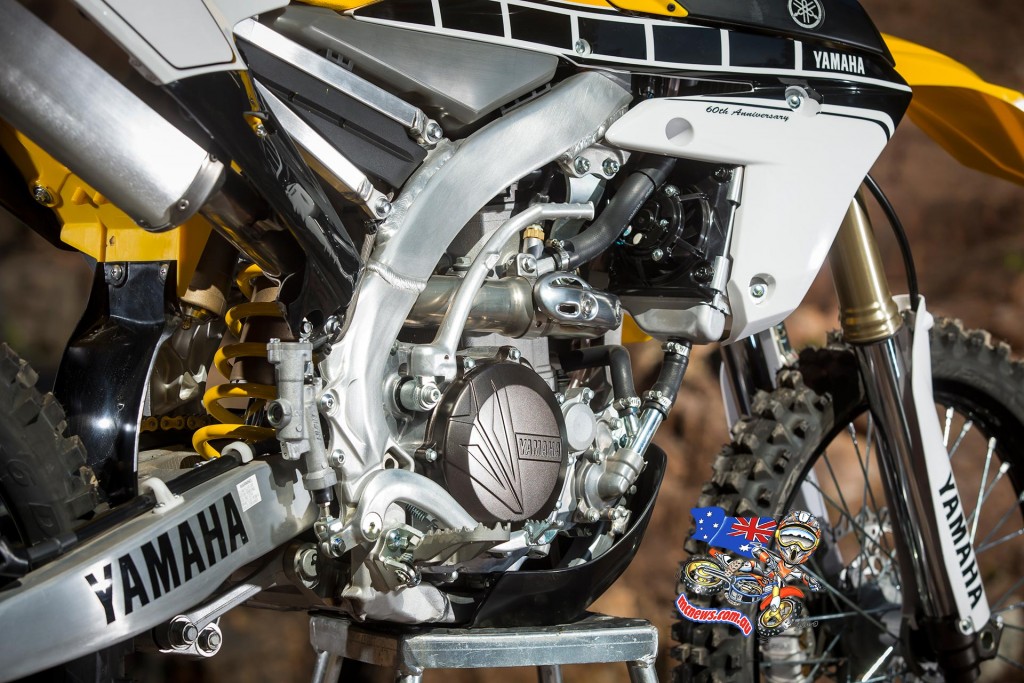

- Engine – Single cylinder, liquid-cooled, 4-stroke, DOHC, 4-valves
- Displacement 449cc
- Bore x stroke 97.0 mm x 60.8 mm
- Compression ratio 12.5 : 1
- Lubrication system Wet sump
- Clutch Type Wet, Multiple Disc
- Induction – Fuel Injection, 44mm throttle body
- Ignition system TCI
- Starter system Electric and kick
- Transmission system Constant Mesh, 5-speed
- Frame Semi double cradle
- Front suspension – Telescopic forks, travel 310 mm
- Caster Angle 26º 20
- Trail 114 mm
- Rear suspension – Swingarm, Travel 318 mm
- Front brake Hydraulic single disc, Ø 270 mm
- Rear brake Hydraulic single disc, Ø 245 mm
- Front tyre 90/90-21 54M
- Rear tyre 130/90-18 69S+M
- Overall length 2,165 mm
- Overall width 825 mm
- Overall height 1,280 mm
- Seat height 965 mm
- Wheel base 1,465 mm
- Minimum ground clearance 325 mm
- Wet weight – 117kg dry – or including full oil and fuel tank 123kg
- Fuel tank capacity 7.5 litres
- Oil tank capacity 0.95 litres
- Warranty – Three months, parts only
- RRP – Yamaha Blue $12,999 – 60th Anniversary Yellow $13,199
