2017 Honda CRF1000L Africa Twin Updated

Africa Twin updated for 2017 with new colour option and Euro4 compliance
2017 Honda CRF1000L Africa Twin
2017 Honda CRF1000L Africa Twin

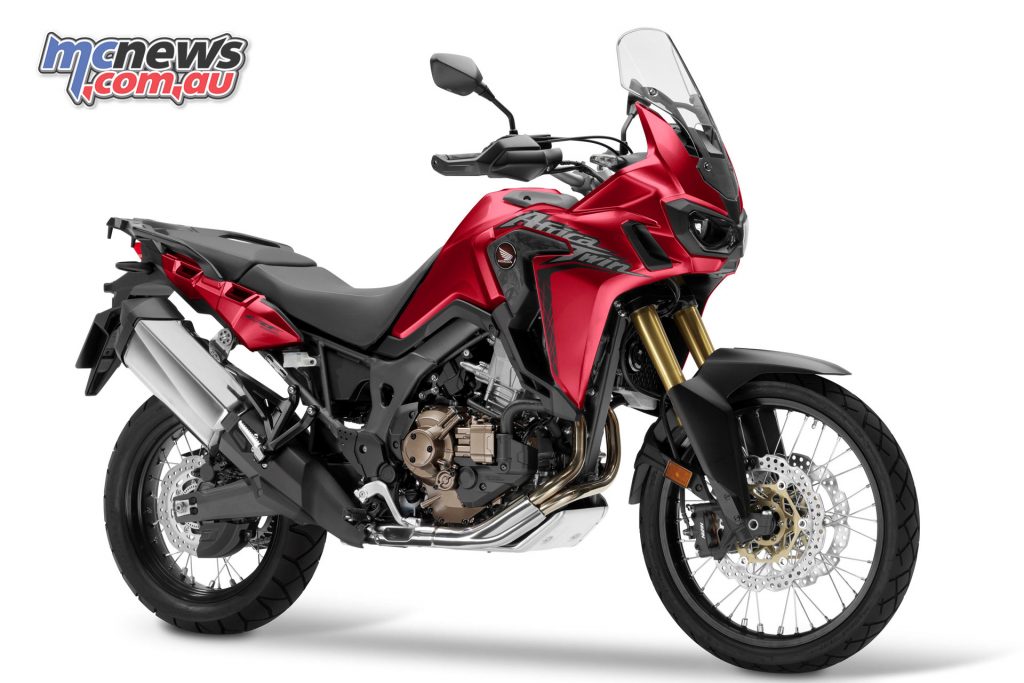

In 2017 Honda’s hugely successful CRF1000L Africa Twin be available in a new Candy Prominence Red colour, with EURO4 compliance.

As before, in addition to the standard model, two further versions are available: the first with switchable rear ABS and multiple mode Honda Selectable Torque Control (HSTC), and the second equipped with Honda’s unique Dual Clutch Transmission (featuring new off-road functionality), switchable rear ABS and HSTC.

Honda Africa Twin - Glyn Griffths - Image by Harley Hamer
Honda Africa Twin – Image by Harley Hamer

You can read the full MCNews.com.au test of the Honda CRF1000L Africa Twin here:
2016 Honda CRF1000L Africa Twin Day One
 2016 Honda CRF1000L Africa Twin Day Two
2016 Honda CRF1000L Africa Twin Conclusion.

The essential features of an adventure motorcycle – strong engine, tough chassis with long travel suspension, upright riding position and wide handlebars – ensure its usability whatever the terrain.

This practicality has been key to the popularity of these machines, they are easy to ride, comfortable and adaptable, at home on the road whether touring mountain passes and highways, or filtering through jammed city streets. And when the desire for a true adventure takes hold, they’re capable of traversing great swathes of distance after the tarmac runs out.

Throughout the development of the CRF1000L Africa Twin, the search for the optimal blend of off-road performance, touring comfort and agility was a constant theme.

As the 2017 CRF1000L Africa Twin meets the stringent EURO4 requirements, allowable limits for exhaust tailpipe pollutants such as carbon monoxide, hyrdrocarbons and nitrous oxide specified are approximately half of those for EURO3.



2017 Honda CRF1000L Africa Twin
2017 Honda CRF1000L Africa Twin
Y. Hasegawa – Series Large Project Leader

“From the outset of designing and engineering our new Africa Twin, we wanted to create a full-scale true adventure motorcycle that was equally enjoyable and capable in crossing vast continents as it was on the highway and in everyday use. The legacy and performance of the previous model was a significant reference point in our thinking and after many satisfying months of research work, testing, development and riding, our CRF1000L has off-road ability that makes dirt roads a joy to tackle, with the comfort of a tourer and agility of a commuter. In other words, a model truly worthy of inheriting the Africa Twin name.”

For the full technical breakdown of the Honda CRF1000L Africa Twin see below.

2016 Honda CRF1000L Africa Twin
2016 Honda CRF1000L Africa Twin
2017 Honda CRF1000L Africa Twin Engine

Compact, lightweight and powerful, the CRF1000L Africa Twin’s parallel twin-cylinder engine makes 70Kw peak power at 7500rpm, and 98Nm torque at 6000rpm.

It features a 270° phased crank, Unicam 4 valve-per-cylinder head and dry sump plus common crankcases for both DCT and manual 6-speed gearbox versions.

The CRF1000L Africa Twin’s engine has been engineered with a special focus on two key areas – tractable and usable all-day touring performance and a power and torque delivery that offers genuine feel for rear wheel traction.

Honda Africa Twin - Image by Trevor HedgeHonda Africa Twin - Image by Trevor Hedge
Honda Africa Twin – Image by Trevor Hedge

The parallel twin layout in 998cc form gives an optimum balance between power, torque, mass and physical dimension, especially when designed from the ground up with weight saving, mass centralisation and a low centre of gravity in mind.

And lessons learned in both HRC’s CRF250/450R Motocross and CRF450R Rally competition programs have been thoroughly applied to keep the dimensions and weight to a minimum – longitudinally the CRF1000L engine is the same length as the CBR500R engine.

A V-twin of the same capacity and output is physically too long and tall to effectively package a motorcycle with the Africa Twin’s performance objectives.

With 70kW peak power produced at 7500rpm, and 98Nm torque arriving at 6000rpm the new engine creates a linear, straight power curve and bulging torque curve for fluid, accessible bottom and mid-range drive, plus consistent top-end punch.

Honda CRF1000L Africa Twin
Honda CRF1000L Africa Twin

Good ground clearance – crucial to off-road performance – starts with a compact, short engine. The crankcases are split vertically with a built-in oil tank (the first Honda to feature such a design). The water pump is housed within the clutch casing (a first for a motorcycle engine) with a thermostat integrated into the cylinder head.

This allows a shorter hose length and frees up scope for appealing exterior design (also eliminating the external mounting bolts) while saving weight. The water and oil pumps are driven by the engine’s balancer shafts; Manual and DCT versions of the engine share common crankcases with only minor external differences.

The engine uses a semi-dry sump and in-tank lower crankcase oil storage. This allows a lower pan depth, reducing overall engine height. As the pressure-fed pump is located within the tank where it delivers its oil from, there is no need for a pressure-feed passage; again saving weight and space.

Honda CRF1000L Africa Twin
Honda CRF1000L Africa Twin

The four-valve cylinder heads, fed by PGM-FI fuel injection, each employ twin spark plugs and dual and sequential ignition control for even combustion, and their phased firing order contributes to engine character and feel. Compression ratio is set at 10:0:1.

Honda’s SOHC Unicam valve train is a feature of the CRF250/450R and the low-set position of the cast camshaft (as used on the CBR1000RR Fireblade) contributes to the compact nature of the cylinder head and allows freedom for the included valve angle, and therefore an ideal combustion chamber shape.

It’s also a lightweight design and helps with mass centralization, thus low centre of gravity. The inlet valves are 36.5mm in diameter, the exhaust valves 31mm.

The firing order and ‘power pulse’ of the XRV750 Africa Twin’s V-twin engine gave excellent traction and feedback for how much grip the rear tyre was finding.

For the CRF1000L Africa Twin to achieve the same kind of throttle feel an uneven-interval firing order, through use of a 270° phased crank system is employed.

Honda CRF1000L Africa Twin
Honda CRF1000L Africa Twin

Secondary vibrations are neutralised by the mutually reciprocating motion of the pistons, while primary inertial and coupling vibrations are cancelled by the use of biaxial balance shafts. The front balancer shaft uses two weights, the rear only a single weight in order to save weight.

Bore and stroke is set at 92 x 75.1mm. This bore size is used to optimise the CAE-designed pistons’ balance of rigidity and strength and a resin coating on the skirts reduces friction. Further reducing friction, AB-1 chromium plating and Palphos M1-A treatment (as used on the CBR600RR) are applied to the piston pins and con-rods.

The aluminium clutch centre and pressure plate use ‘assist’ cams to ease upshift and downshift (with lighter lever feel) and ‘slipper’ cams for deceleration and downshifting. Backlash between the pressure plate and centre has been optimized, as has backlash between the friction plate and clutch outer.

As the six-speed gearbox is a brand new design – with ‘pierced’ shape dogs for 1st, 2nd, 3rd and 4th gear – the clutch itself is physically smaller, saving 500g compared to conventional units. Oil gathering ribs have been added to the main journal side of the primary gear, ensuring consistent lubrication for the gear, damper spring and primary sub-gear.

The shift cam design is the same as used by the CRF250/450R, giving secure gear shifting no matter the riding conditions. And to ensure direct drive – and consistent feel for traction – the cush drive rubbers in the rear wheel have been optimised in terms of physical size and shape.

Enhancing the rider’s experience, the unique internals of the exhaust muffler are designed through CAE to boost the sound and feel of the engine’s beat, and patented by Honda. Acoustically tuned, chamber two creates a light, crisp feel at higher rpm while chamber three accentuates the deep, solid tone of a large-capacity twin.

Honda CRF1000L Africa Twin
Honda CRF1000L Africa Twin

There are four levels of control to choose from on the Honda Selectable Torque Control (HSTC): Level 1, 2 and 3 and off. The degree of electronically-generate control from the system decreases as the levels rise, allowing increasing amounts of rear wheel spin and, with rear ABS off, freedom to fully lock up the back wheel.

The Africa Twin’s DCT features a revised S mode offering three levels of sports performance (faster down changes and the ability to hold a higher/lower gear). The three modes make it possible to tailor gearbox response to preferred riding style.

The selected level is stored, and acts as the default – thus making it possible to permanently ride in S mode. It is also displayed on the dash.

The DCT also features ‘adaptive clutch capability control’ that gives a natural ‘feathered’ clutch feel at low speed on/off throttle situations for smooth gear changes at low-speed.

For essential additional off-road DCT performance, the CRF1000L Africa Twin offers new functionality through the use of the G switch positioned on the right side of the instrument panel. Pushing the G switch in any riding mode modifies the control of the clutch system to give a more direct drive.

Further new functionality for the DCT system comes in the form of incline detection, by means of which the gear shift pattern is adapted depending on the grade of any incline to provide optimum control.

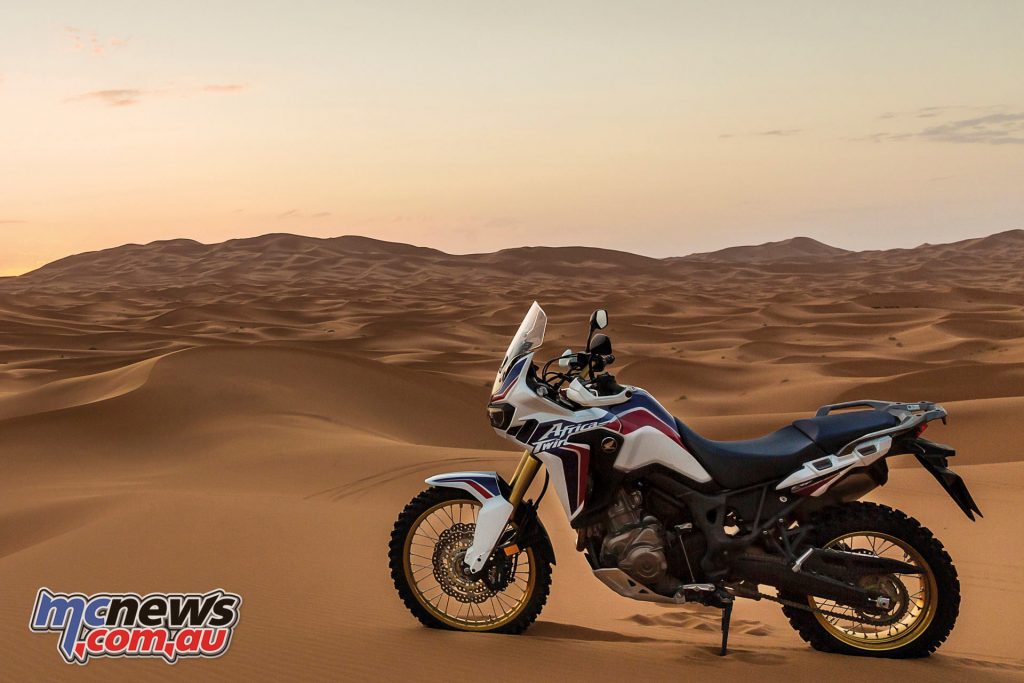

2016 Honda CRF1000L Africa Twin
2016 Honda CRF1000L Africa Twin
2017 Honda CRF1000L Africa Twin Chassis

Fully adjustable Showa suspension is matched to a tough double cradle frame, with rigidity levels tuned for optimum handling. Wheels are 21/18-inch with 310mm ‘wave’ style floating front discs and radially mounted four-piston Nissin calipers. Dunlop 90/90-21 and 150/70-18 tyres provide all-round performance.

The key objectives laid out for the CRF1000L Africa Twin’s chassis were threefold: the ability to cover considerable amounts of off-road ground, with excellent on-road high-speed stability both when riding solo and when fully loaded with pillion and luggage.

Combining all three attributes presented a stimulating challenge for Honda’s development engineers. The resulting steel semi-double cradle frame (a similar design is used by the CRF450R Rally) has a finely tuned rigidity balance, not only within the frame spine and tubes but also through the use of 6 carefully placed engine hangers.

Thanks to the compact design of both engine and frame ground clearance is 250mm, with wheelbase of 1,575mm and rake and trail of 27.5°/113mm. The lightweight subframe features diagonal cross bracing and will carry a cargo weight of 30kg.

Dry weight of the standard model is 208kg with wet weight of 228kg and a front/rear weight split of 49.1/50.9; seat height is 870mm (the same as the XRV750L Africa Twin) and can be lowered 20mm in a single operation.

2016 Honda CRF1000L Africa Twin
2016 Honda CRF1000L Africa Twin

Compared to the XRV750L the distance between the swingarm pivot and front tyre is 8mm shorter at 931mm, with the new machine using a 20mm longer swingarm. Add packaging of items like the battery nearer the centre of mass (behind the engine cylinders) and load on the front tyre is increased, improving both stability and traction.

The steering angle of 43° either way equates to a turning radius of just 2.6m – useful for threading through busy streets or tricky trail.

And even though the CRF1000L’s engine is 25% larger in capacity and produces approx. 50% more power than the original, the new Africa Twin is only marginally lighter, with slim dimensions around the tank and seat area, and a riding position that enhances control and movement.

With stroke length of 230mm, the 45mm Showa cartridge-type inverted front fork offers class-leading levels of performance. For all-round compliance and feel the long extension stroke combines with a low spring rate and spring preload; rebound and compression damping are fully adjustable.

The leading axle maintains the required fork offset and centre of gravity of the steering system (compared to a centre axle design) aids mass centralisation and saves weight. A cast aluminium top yoke and forged bottom yoke – joined by hollow aluminium stem shaft – clamp the fork legs with two bolts each top and bottom.

The new 45mm Showa fork and yokes combined ­– thanks to extensive weight reduction through hollowing and thinning – are actually 860g lighter than the 43mm ‘upright’ fork and yokes of the XRV750L Africa Twin.

Matching the supple front suspension and generous ground clearance the Showa rear shock delivers 220mm axle travel. Its upper mount is set low for mass-centralisation and it features a 46mm cylinder and remote reservoir (as used by the CRF motocrossers) for stable damping control under more extreme off-road riding conditions.

Spring preload can be adjusted via a dial on the shock body; rebound and compression damping are also fully adjustable.

The Monoblock cast aluminium swingarm in cross-section has hexagonal trapezoid spars, with the right (muffler) side thicker in depth – to maintain lateral rigidity balance – and shaped to clear the exhaust.

Tough 6000-series forged aluminium is used for the Pro-Link linkage, saving weight while improving durability. The swingarm mounts to the engine cases through 17mm hollowed co-axial bolts.

2016 Honda CRF1000L Africa Twin
2016 Honda CRF1000L Africa Twin

The CRF1000L Africa Twin uses the same wheel size as the CRF450R Rally, 21-inch front and 18-inch rear; this allows a useful choice of off-road tyres to be applied.

Widths of the rims are 2.15-inch/4-inch and 20mm front and rear hollow axle shafts improves rigidity while saving weight. On the rear wheel’s left side the spokes are arranged tangentially, to make space, and on the right the layout is linear to the hub and rim for strength.

Compact two-piece radial-mount four-piston calipers are designed to work the 310mm ‘wave’ floating discs through sintered pads (similar to the setup used by the CRF450R Rally) and serve up consistent stopping power and feel on-road or off.

The pads’ bracket cotter pins have been done away with, simplifying the design and shaving grams, while aluminium disc hubs – the first on any Honda ­– also save weight.

The rear 256mm ‘wave’ disc is also CRF-derived and has been optimised for the Africa Twin, with hole punching and shaping to deliver secure braking performance. Lightweight two-channel ABS can be turned off for the rear caliper only.

The OE 90/90-21 and 150/70-18 Dunlop tyres – featuring large groove widths and narrow pitches between adjacent grooves – use a carcass and compound developed specifically to work well on tarmac or trail.

2016 Honda CRF1000L Africa Twin
2016 Honda CRF1000L Africa Twin
2017 Honda CRF1000L Africa Twin Styling & Equipment

Minimal bodywork provides protection for the rider without bulk; the negative LCD display stacks rider information vertically rally-style for fast reading.

New switchgear is ergonomically designed for ease of use and mounted on a tapered aluminium handlebar. Lighting is full LED.

The styling concept of the CRF1000L Africa Twin is one of ‘unlimited adventure’. The compact power unit features minimum exterior parts and this is reflected in the slim body and 18.8L fuel tank, which is designed to increase rider control and movement.

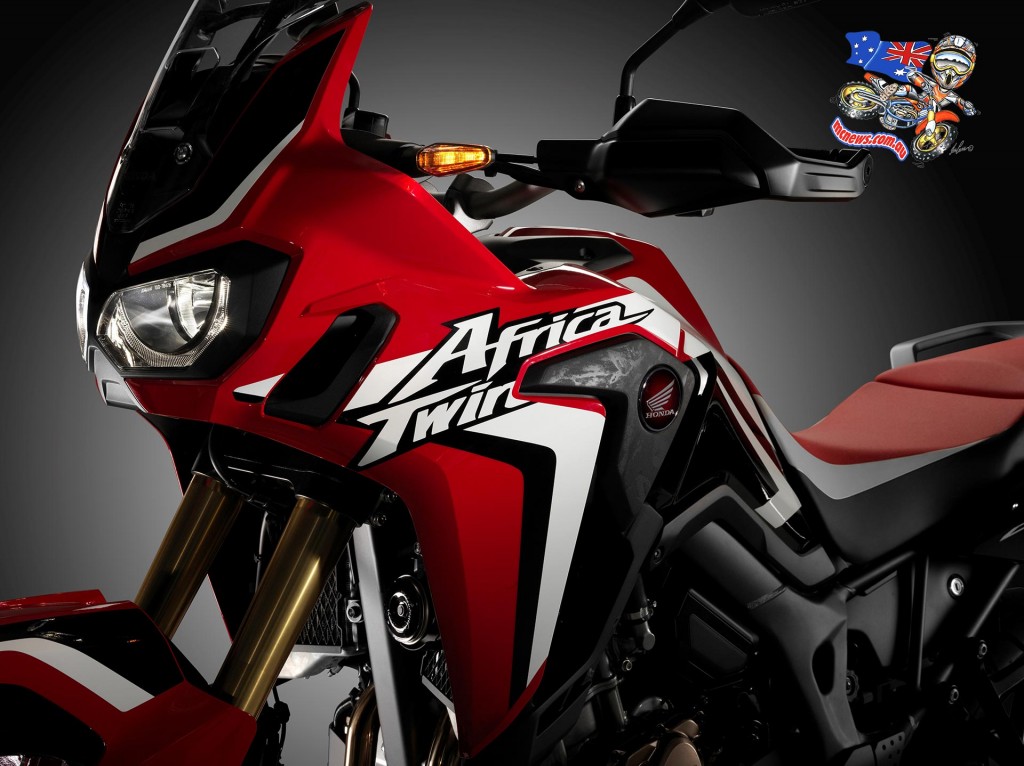

It also features limited overhang, greatly improving chance of damage in a minor spill. Fittingly dual LED headlights pay homage to the XRV750L Africa Twin, reinforced with a ‘twin ring’ signature halo of LED light. The rear light is also LED.

To give maximum wind protection while touring – without hindering freedom off-road – the cowl and screen are an integrated unit. The screen’s centre duct controls turbulent air and allows a higher screen height, while dual side ducts deflect wind around shoulders and arms. A 90mm taller/30mm wider screen is available as an option for extended touring.

Internal airflow for the engine has also been carefully managed with baffle plates, bypass conduits and doglegs. To channel consistent air to the airbox – while under acceleration or steady load – the four ducts feeding from the radiator area are supplemented by duct ports in three locations; three on the front spoiler, twelve on the inner cover and two on the rear of the inner cover.

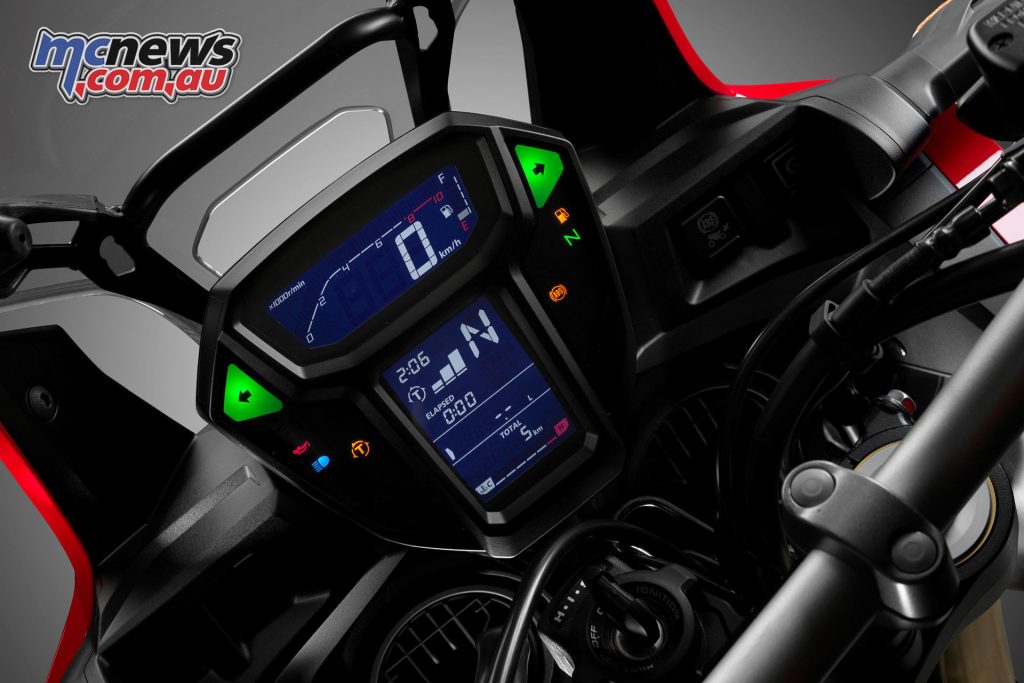

A negative LCD meter, vertically stacked, follows closely the dash layout of a rally race bike, allowing information to be rapidly assessed with little eye movement left or right.

2016 Honda CRF1000L Africa Twin
2016 Honda CRF1000L Africa Twin

Three rows (clock, gear position, HSTC, odometer. trip meter, ambient temperature gauge and fuel gauge) display in the bottom section, and can be switched around by the rider through use of a cursor.

The upper section LCD displays the essential speed, rpm and fuel. DCT information – with D-S mode selection and G switch setup – is clustered together.

The switchgear for both manual and DCT machine has been designed to improve rider control and ease of use. The dash functions are controlled from a button on the left switchgear, as is control of HSTC, with the indicator switch set closer to the handlebar. The right hand switchgear has an integrated start/engine stop switch, plus a hazard light button.

2016 Honda CRF1000L Africa Twin
2016 Honda CRF1000L Africa Twin

To manage the CRF1000L Africa Twin in DCT form the left switchgear incorporates an ‘up’ shift trigger on its rear – in a place naturally found by a forefinger – with the ‘down’ shift trigger on the front ready for a thumb. The right switchgear features an AT/MT (automatic/manual) select button and N-D-S (neutral, drive, sport) switch.

The parking brake is operated by pulling a lever on the left handlebar, with four levels of braking force to suit conditions – up to an 18% gradient with two people and full load – and slipping on the small lock lever; it’s taken off by simply squeezing the lever. A plastic guard shields the parking brake caliper and rear disc.

The tapered aluminium handlebar is both tough and attractive. It’s made in Japan from a new grade material with a high strength to thickness ratio, meaning it’s manufactured with 3mm walled tubing. It clamps on a 28.45mm diameter, tapers to 22.2mm and is 50% lighter – and much stronger – than a conventional steel handlebar.

Rubber mounts reduce impact shock off-road while brass inserts minimise the vibration fatigue of long-distance touring; bar end weights incorporate with knuckle guards for hand protection.

The CRF1000L Africa Twin will be available in four colour options, with a new Candy Prominence Red added to the line-up: Candy Prominence Red, CRF Rally Red (SE), Africa Twin Tricolor (SE), Matte Ballistic Black Metallic

Racing is in Honda’s DNA and the CRF Rally, with its Extreme Red and Victory Red stripes, plus three-tone seat echoes HRC’s CRF450R Rally machine. The Tricolour option pays its dues to the heritage of the original XRV750L Africa Twin, with unmistakable lines and paint to celebrate the machine’s return.



A full range of genuine Honda accessories will be available, including top box, panniers, smoke screen, high screen, upper and lower wind deflectors, rubber pillion step, DCT foot shifter, heated grips, 12V socket, fog lamp including cowl bar, wheel stripes and alarm system.
