Bultaco Metralla II Kit America | A Special Road Racer

Phil Aynsley by Phil Aynsley
December 31, 2017
in Features, Motorcycle News

The 1967 Bultaco Metralla II Kit America

Isle Of Man TT 250 Winner

There are production racers… and there are production racers. One of the best examples of taking a road going bike to the extreme is the 1967 Bultaco Metralla II Kit America.

 About 5,500 MkIIs were built from 1966 until 1974.



The Mk II version of the Metralla was introduced in 1966 and was a basic but highly competent 250cc road bike. Its 27.5hp (at 7,500rpm), dry weight of 102kg and a 5-speed gearbox enabled a top speed of 160kph. About 5,500 MkIIs were built from 1966 until 1974.

 Stock produces 27bhp @ 7500 with the Kit America taking it to 32bhp @8200rpm



In 1967 Bultaco offered a race kit (called the Kit America in Spain), that included a tank, seat, clip-on bars, small fairing, rear mounted foot controls, ported barrel, a high compression head, modified piston, close-ratio gearbox, FEMSA electronic ignition, spark plug and expansion chamber exhaust pipe. This resulted in a “production” bike that had 32hp at 8,200rpm, weighed 98kg and a top speed of 175kph.

 The America II Kit was easy to install.



In the words of the factory “The kit can be easily installed by the customer himself, and all that is required is a set of spanners, a medium cut file, a drilling machine, three drills, and a dose of enthusiasm”!

 Bill Smith won at the 1967 IOMTT with an average speed of 88.63mph.



RelatedPosts

Beta 250 GS

Only a handful of Beta 250 GS motorcycles were imported to Australia

June 25, 2025
Ducati Rolly

Ducati’s most basic motorcycle – The Rolly

June 18, 2025

Such was the Kit America’s competitiveness (and the loose rules for the IOM Production TT) that a three bike factory team was entered in the 1967 250 Production TT with Bill Smith winning (with an average speed of 88.63mph), Tommy Robb in second and Aussie Kevin Cass in sixth.

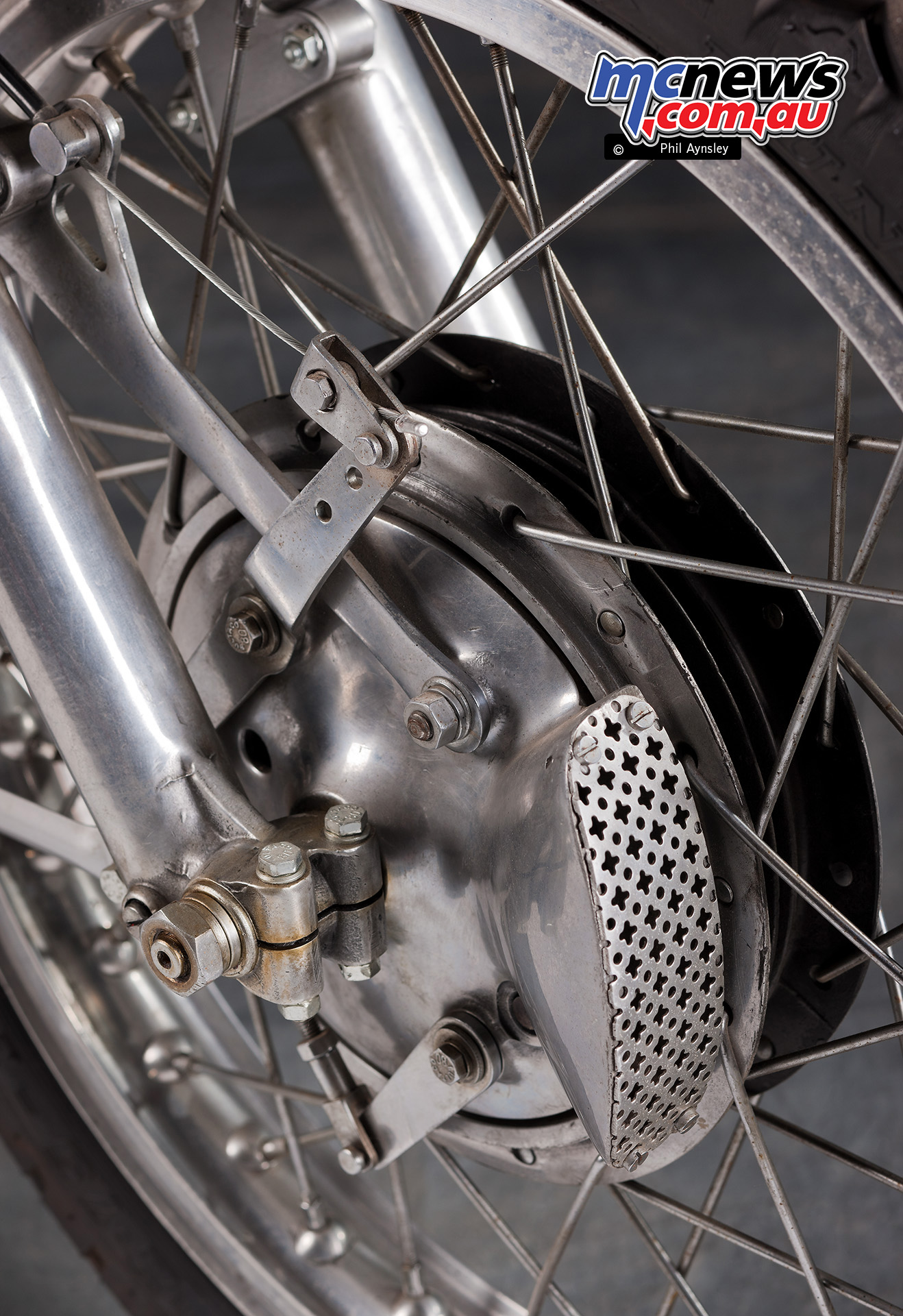

The drum breaks didn't get an upgrade from the kit.
 The drum breaks didn’t get an upgrade from the kit.

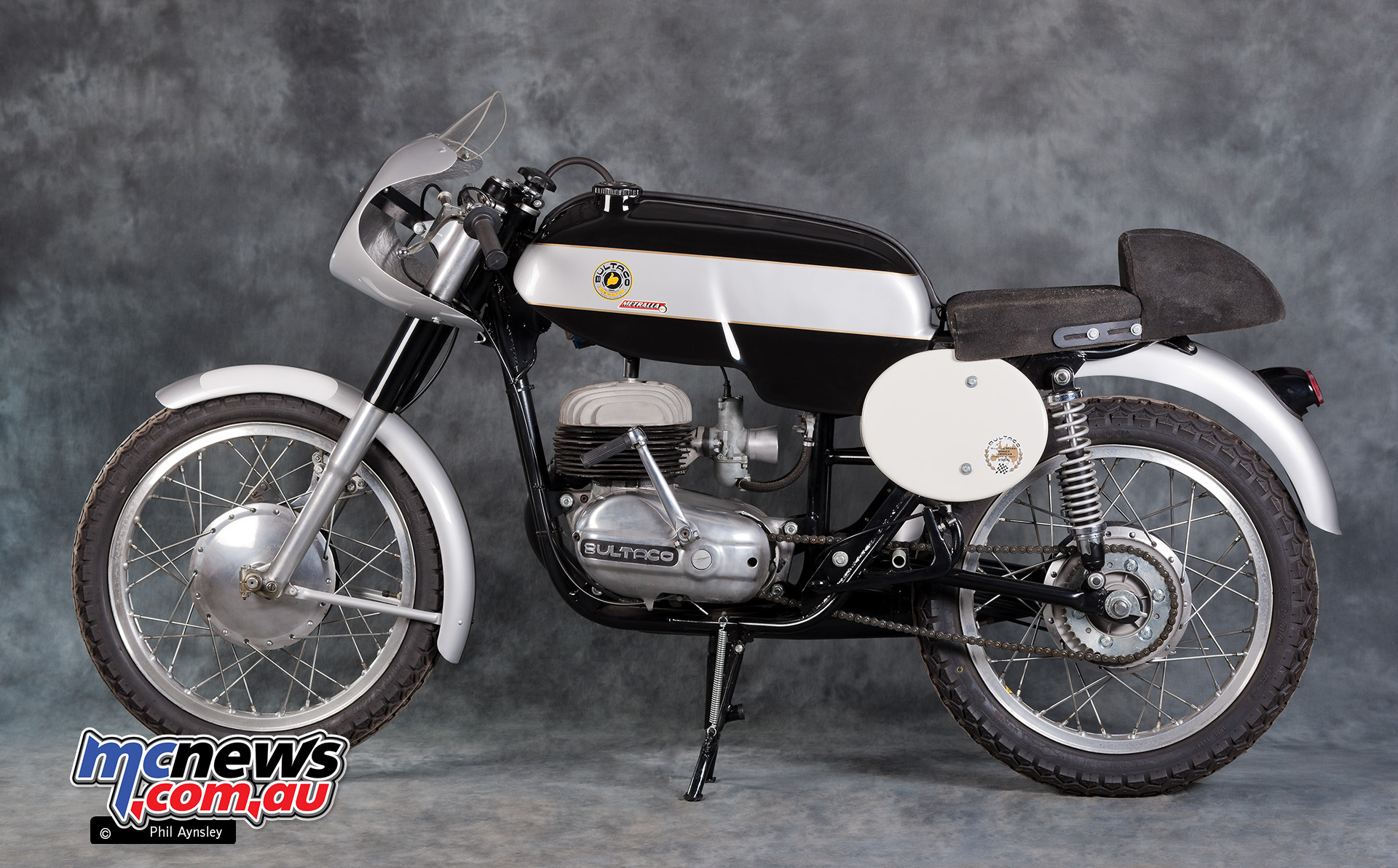

 Bultaco Metralla II Kit America

The bike shown here was photographed in Spain by Phil Aynsley in 2010.

DISCUSS IN OUR FORUM
Tags: Classic MotorcyclesIOM TTIsle of Man TTMetralla IIOld School RacersPhil AynsleyTT
ShareTweetShare
Phil Aynsley

Phil Aynsley

Phil Aynsley sadly passed away in 2023 after a life spent travelling the world photographing many of the rarest and most beautiful motorcycles ever made. We are proud to continue showcasing his catalogue of work on MCNews.com.au.
