2017 Ducati Multistrada 950 revealed at EICMA

Ducati present a new smaller capacity version for the Multistrada family, in the Multistrada 950

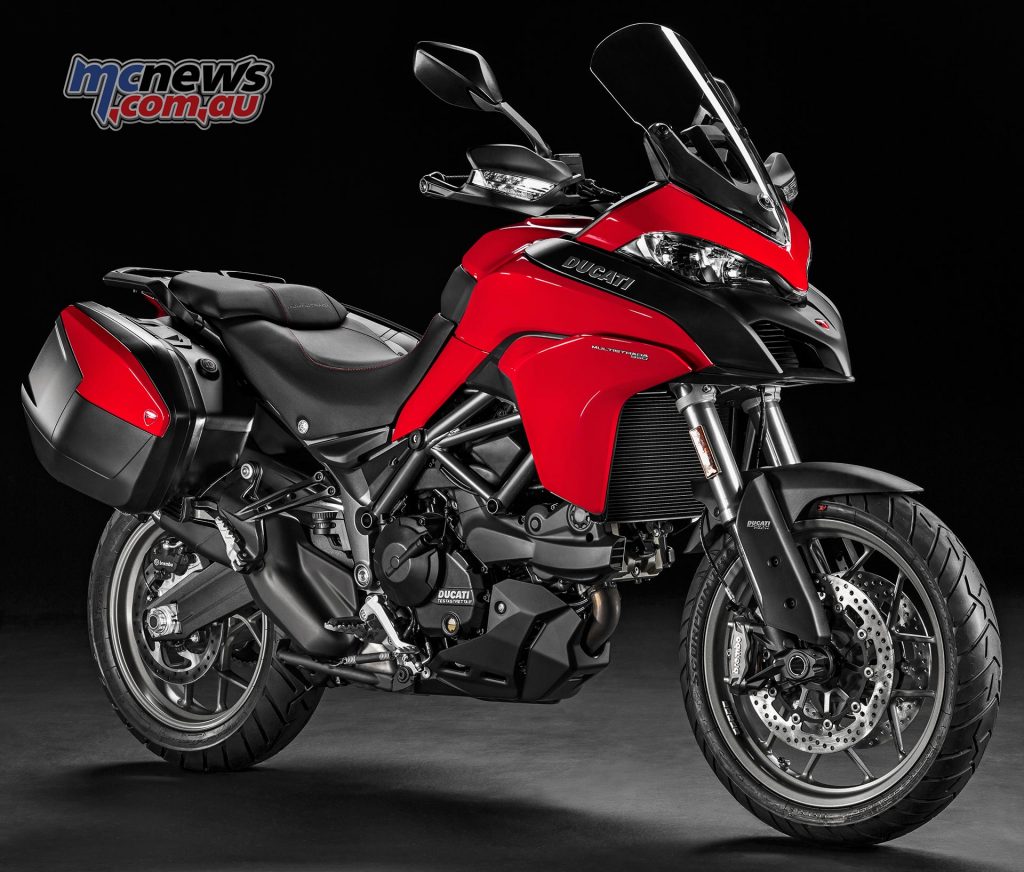

2017-ducati-multistrada-950-12
2017 Ducati Multistrada 950 – with panniers

Ducati presents the new Multistrada 950, the new smaller capacity multibike designed to provide all the excitement of the Multistrada in a way that makes it more accessible and versatile.

Combining the Multistrada family’s trademark design and chassis geometry, the Multistrada 950 is lighter than the Multistrada 1200 and has a seat height of 840 mm. The 19in light alloy front wheel ensures comfort and fun on any road surface, asphalted or not.

Suspension with a generous 170 mm of travel and a twin-sided swingarm keep comfort levels high while giving the Multistrada 950 outstanding agility. The 20-litre tank puts plenty of miles between refuelling stops.

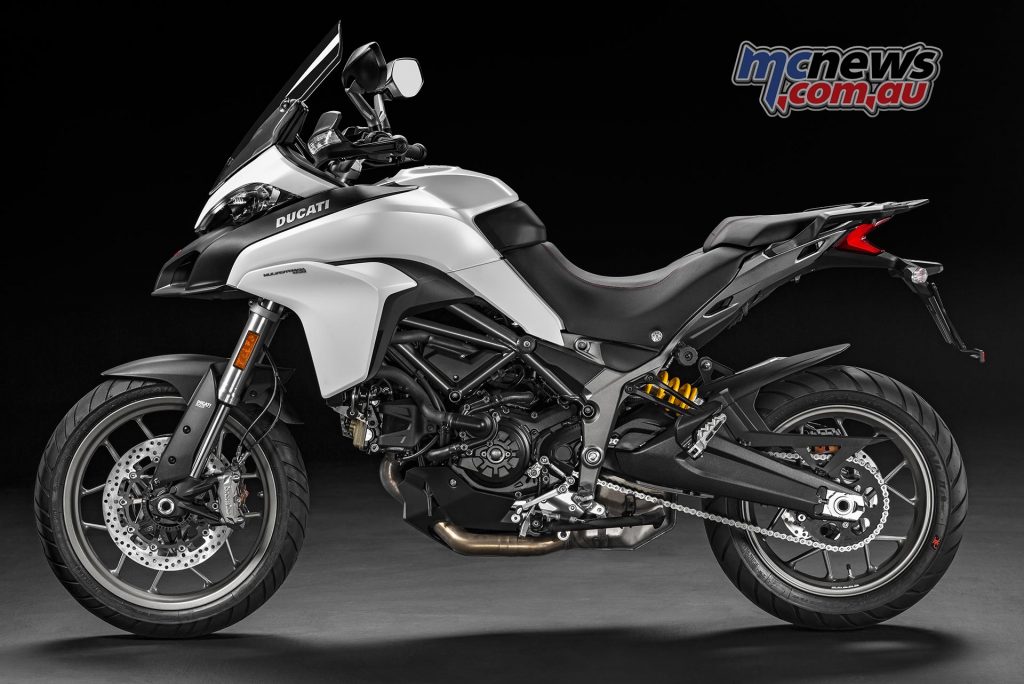

2017-ducati-multistrada-950-24
2017 Ducati Multistrada 950

The 937 cm3 Testastretta engine gives the Multistrada 950 true Ducati verve – and makes it accessible to everyone. This engine delivers 113 hp (83.1 kW) at 9,000rpm and a maximum torque of 96.2Nm at 7,750rpm. The four Riding Modes (Touring, Sport, Urban and Enduro) give the Multistrada 950 true four-bikes-in-one capability.

Maintenance is as worry-free as it gets: the 937 cm3 Ducati Testastretta 11° twin cylinder engine has a maintenance interval of 15,000 km (9,000 miles) or 12 months, with valve clearance inspections every 30,000 km (18,000 miles).

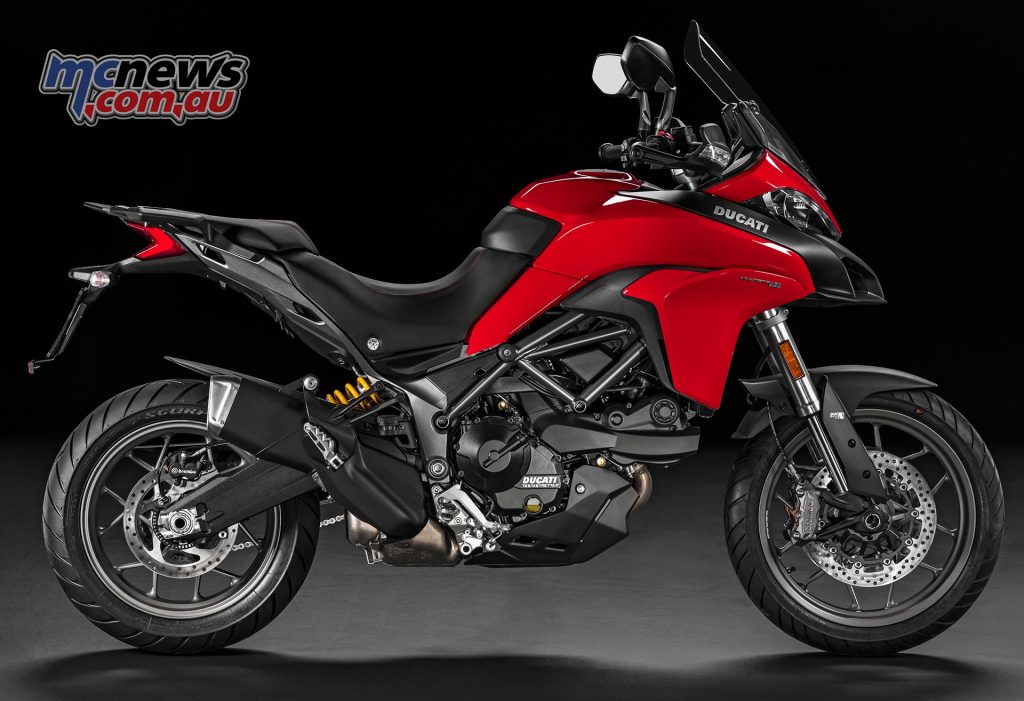

2017-ducati-multistrada-950-13
2017 Ducati Multistrada 950

The Multistrada 950 is both confidence-inspiring and safe thanks to the Ducati Safety Pack, which includes the latest Bosch 9.1 MP ABS with three-level adjustment and eight-level Ducati Traction Control. These safety systems apply different intervention levels depending on the selected Riding Mode; riders can personalise them to set up the Multistrada 950 to match their individual needs and riding skills.

Ducati Multistrada 950 colours
  • Ducati Red with Racing Grey frame and matt grey wheels
  • Star White Silk with Racing Grey frame and matt grey wheels

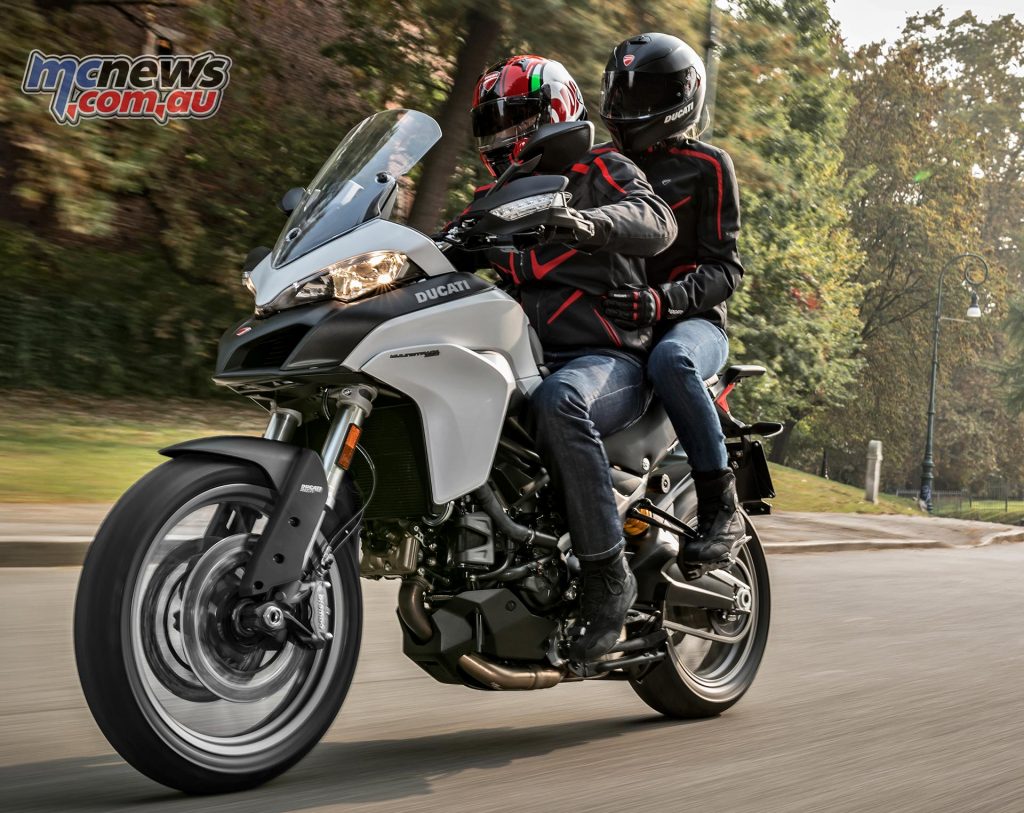

2017-ducati-multistrada-950-2
2017 Ducati Multistrada 950 – Star White Silk – two-up
Ducati Multistrada 950 main features
  • 937 cm³ Testastretta 11° engine with 113hp at 9,000rpm and 96.2Nm at 7,750rpm
  • Euro 4 emissions
  • Exhaust with single silencer
  • Tubular steel Trellis frame with cast aluminium twin-sided swingarm
  • Seat height 840 mm
  • Height-adjustable screen
  • Fuel tank capacity 20 litres
  • Wheels with six Y-spokes, Pirelli Scorpion Trail II tyres, 120/70 ZR17, 170/60 ZR17
  • Fully adjustable 48 mm Kayaba fork with 170 mm of travel
  • Fully adjustable Sachs shock absorber, allowing 170 mm of rear wheel travel
  • Four Riding Modes (Sport, Touring, Urban, Enduro)
  • Ducati Safety Pack (3-level ABS, 8-level DTC)
  • LCD Instrumentation

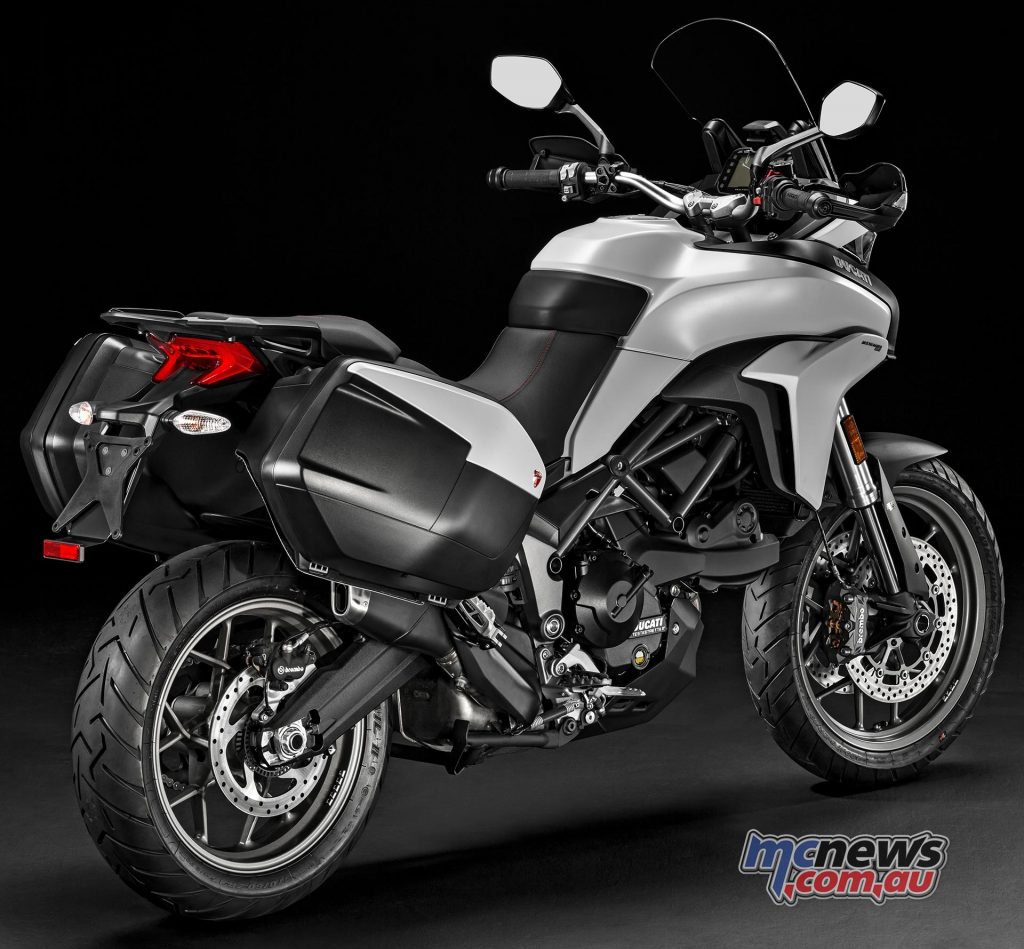

2017-ducati-multistrada-950-17
2017 Ducati Multistrada 950 – with a number of personalisation packages available
Personalisation packages
  • Touring Pack: side panniers and centre stand
  • Sport Pack: type-approved Ducati Performance exhaust by Termignoni (complies with EU homologation standards), billet aluminium frame plugs, billet aluminium front brake fluid reservoir plug
  • Urban Pack: top case, tank bag with tank lock and USB hub to charge electronic devices
  • Enduro Pack: supplementary LED lights, Ducati Performance components by Touratech: engine crash bars, aluminium radiator guard, aluminium sump guard, broader kickstand base and off-road rider pegs
2017 Ducati Multistrada 950 - lower and higher height seats are available as optional accessories
2017 Ducati Multistrada 950 – lower and higher height seats are available as optional accessories
Design & Ergonomics

When the Ducati Design Center started working on the Multistrada 950 the goal was to develop a compact, eye-pleasing bike that had to be, above all else, a true Multistrada, taking its cue from the two bigger-engined Multistrada family members. The front-on view, with the distinctive headlight, ‘beak’, adjustable screen, two ‘wings’ and tank come from the Multistrada 1200.

The rider’s seat with narrow mid-section, the passenger seat, rear grab rail, the design of the exhaust and swingarm and the wheel sizes were, instead, taken from the Multistrada 1200 Enduro.

The bodywork colour that extends to the seat and the numerous black-painted parts – such as the engine guard, silencer and swingarm – make the Multistrada 950 look lighter and alloy wheels with thin Y-spokes look as similar as possible to wire spokes. Other Multistrada 950 hallmarks include the high-tech front headlight and LED tail light.

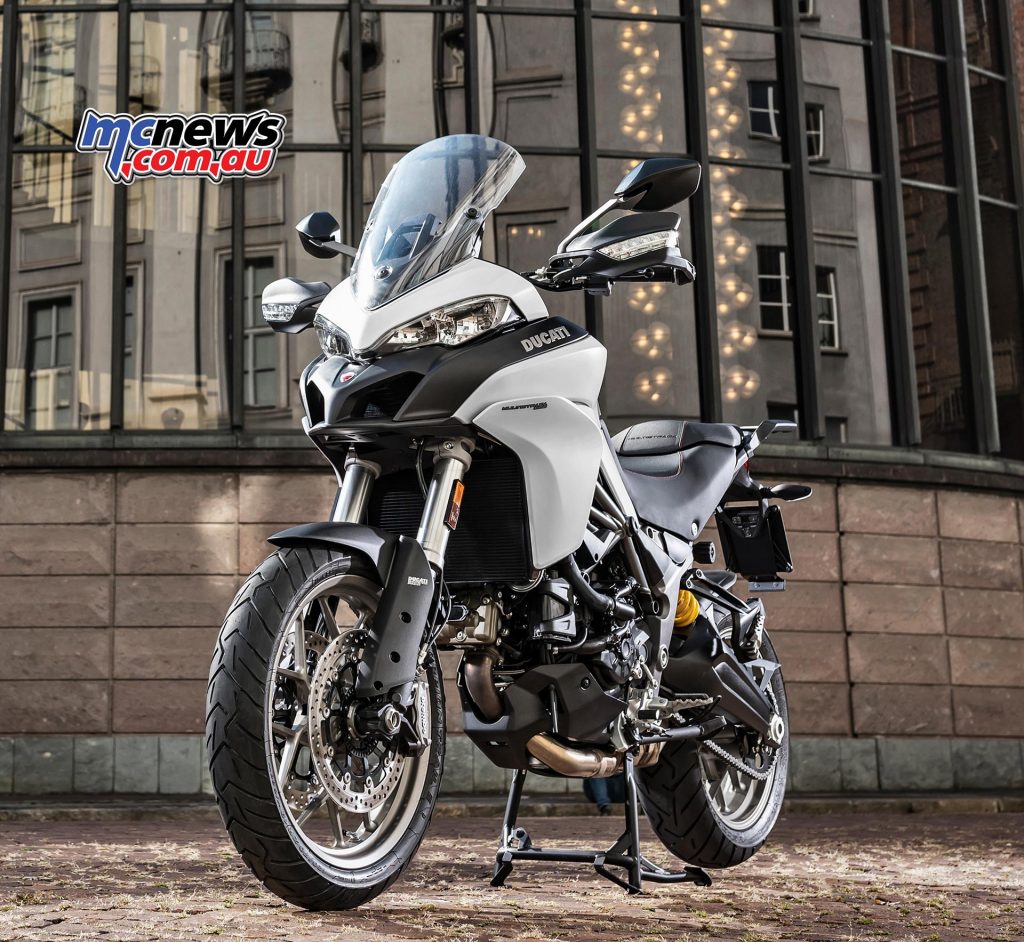

2017-ducati-multistrada-950-4
2017 Ducati Multistrada 950 – designed with touring in mind

Built with long-range touring in mind, the Multistrada 950 has been designed to ensure outstanding comfort, even when the bike is fully laden. It can easily seat two people, even with top case and side panniers on board.

A 1594 mm wheelbase distributes rider and luggage (where applicable) weight, benefiting the vehicle’s dynamic performance. Foot pegs have been lined with rubber inserts to dampen vibration.

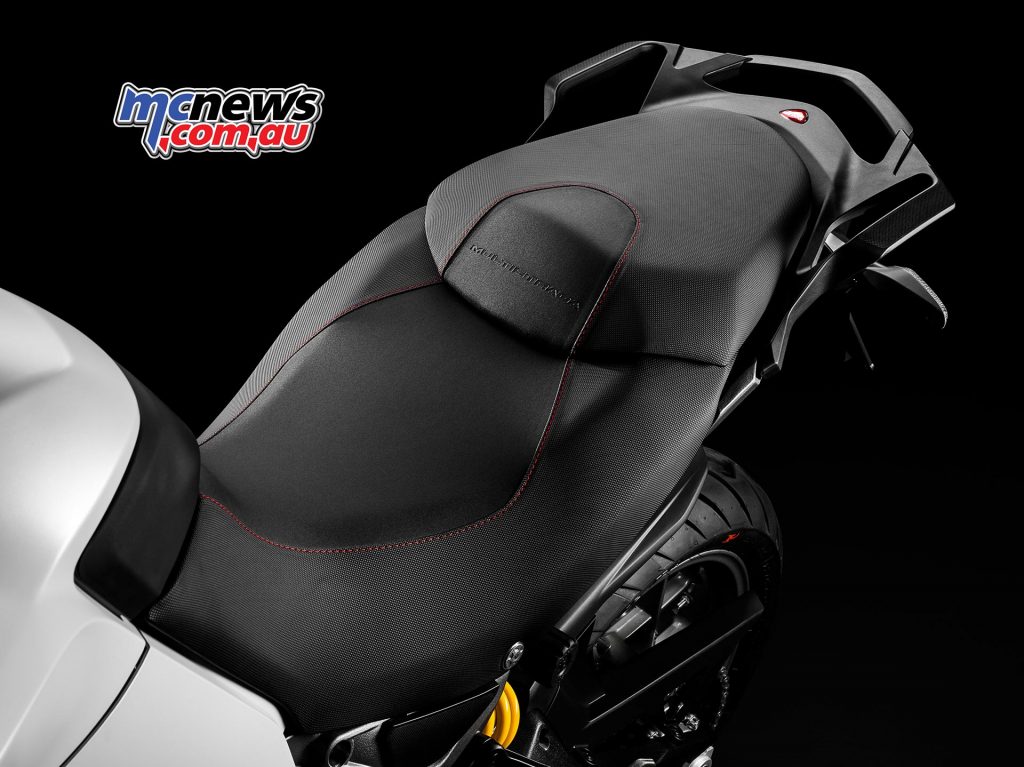

The Multistrada 950 seat is 840 mm off the ground (a lower 820 mm seat and a higher 860 mm one are available as Ducati Performance accessories) and the wide tapered handlebars have been designed to optimise comfort, provide a dominant riding position and make the most of the generous steering lock. And it’s been mounted on silent-blocks to filter out vibration, giving an optimal balance between comfort and ‘feel’.

A spacious stowage area under the passenger seat can be used for tools, the motorcycle handbook and personal items and there’s also a USB port underneath the seat to charge smartphones or other devices.

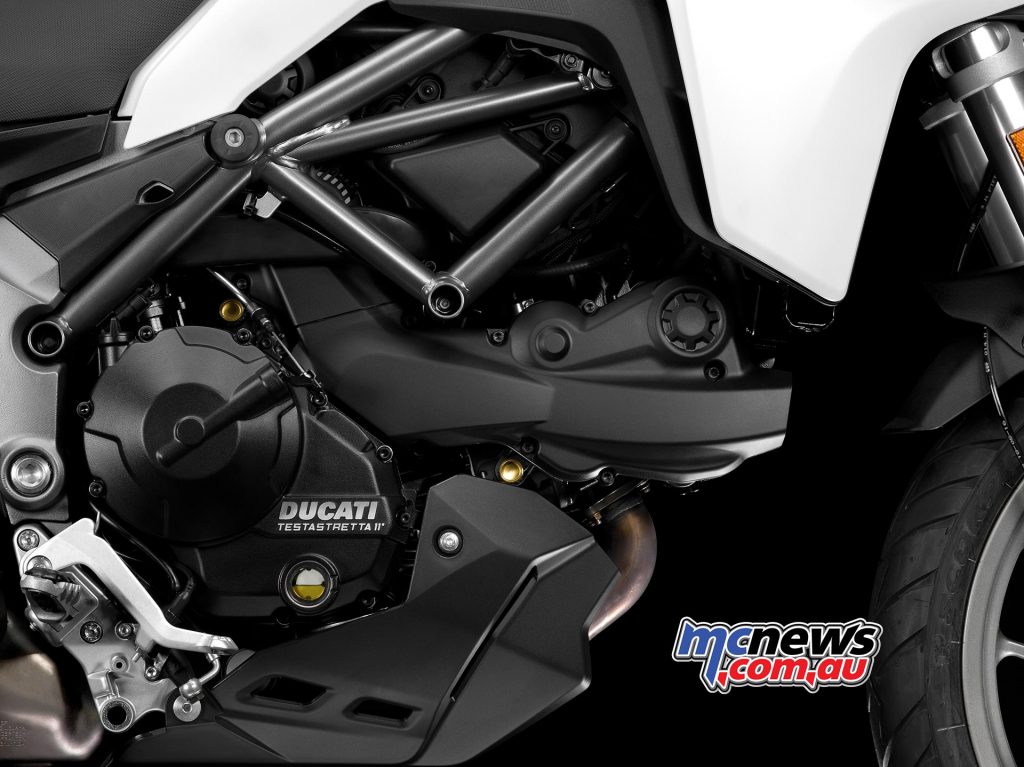

2017-ducati-multistrada-950-9
2017 Ducati Multistrada 950 – powered by the overhauled twin cylinder 937 cm3 Testastretta 11°
Engine

The Multistrada 950 is powered by the twin cylinder 937 cm3 Testastretta 11°, now extensively overhauled. EURO 4-rated, it has four valves per cylinder, liquid cooling and bore and stroke measurements of 94 x 67.5mm respectively. Power amounts to 113hp at 9,000rpm and a maximum torque of 96.2Nm at 7,750rpm. The compression ratio is 12.6:1.

The twin cylinder Testastretta 11° engine on the Multistrada 950 features two new cylinder heads with a redesigned oil circuit and secondary air intake ducts on the covers. The Multistrada 950 gulps in the fuel mix through new 53 mm cylindrical-section throttle bodies controlled by an advanced Ride-by-Wire system.

This engine also features a new control unit and electronic injection system. The exhaust system is of the two-into-one-into-two type with lateral silencer.

The clutch is of the oil bath type with slipper function and low-effort lever control.

The 937 cm3 Ducati Testastretta 11° twin cylinder engine has a maintenance interval of 15,000km (9,000 miles) or 12 months, with valve clearance inspection every 30,000 km (18,000 miles).

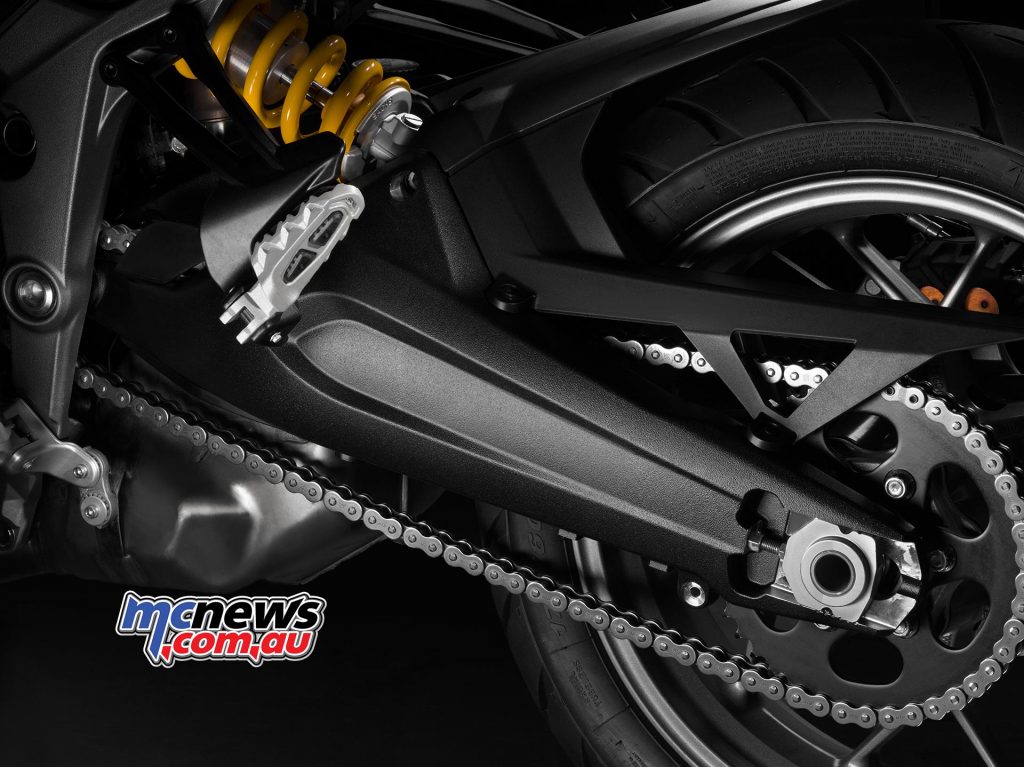

2017-ducati-multistrada-950-5
2017 Ducati Multistrada 950 – shell-cast aluminium twin-sided swingarm
Chassis

On the Multistrada 950 the frame design features a front Trellis made up of large-diameter yet thin tubing, plus two lateral aluminium sub-frames to ensure maximum torsional rigidity. The Multistrada 950 has a minimum ground clearance of 183.5 mm. The shell-cast aluminium twin-sided swingarm is painted black.

The Multistrada 950 has front USD 48mm forks with 170 mm of travel, a dedicated cast fork leg, plus adjustable spring pre-load and hydraulic compression and rebound damping. At the rear, a Sachs shock connects the swingarm to the left sub-frame. Spring pre-load is adjustable (via a knob-operated hydraulic press), as is hydraulic compression and rebound damping.

The spring is progressive, consequently increasing ride comfort even with the bike fully loaded. Rear suspension travel is 170 mm.

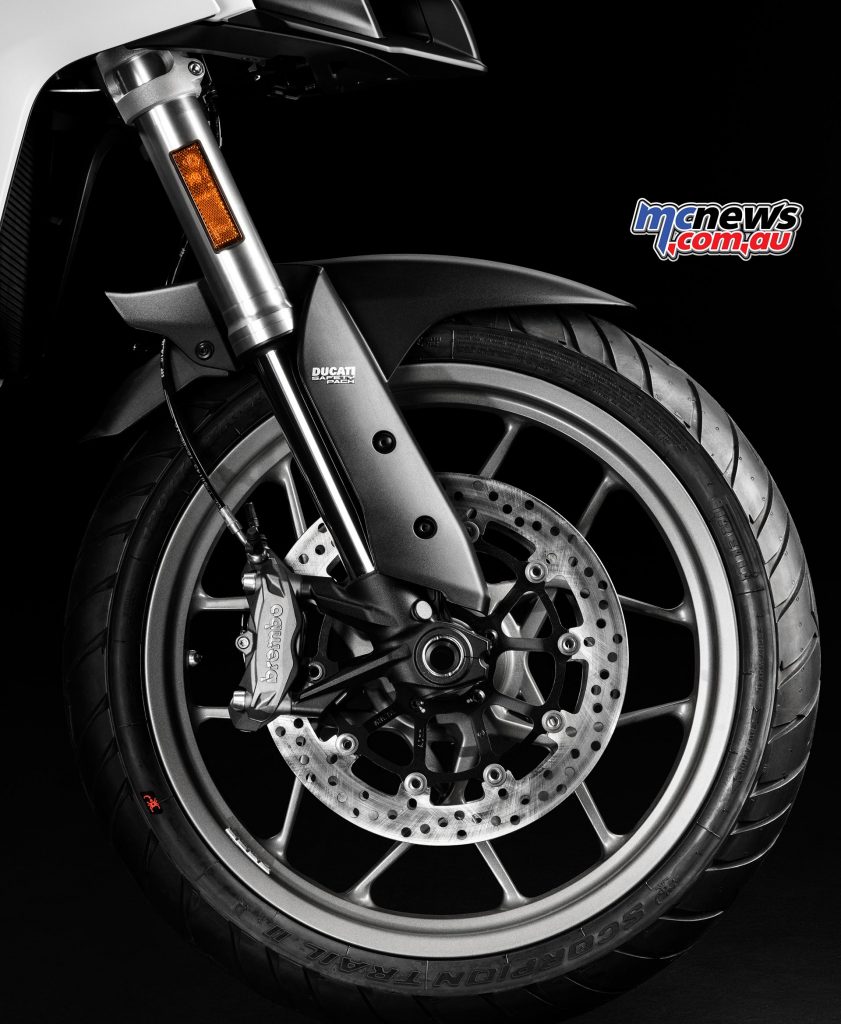

2017-ducati-multistrada-950-7
2017 Ducati Multistrada 950 – USD 48mm forks, Brembo M4.32 monobloc radial calipers with 320mm rotors

The Multistrada 950 is equipped with alloy wheels that mount Pirelli SCORPION Trail II tyres: 120/70 R19 at the front and 170/60 R17 at the rear. This tyre is a perfect blend of off-road racing capacity and great road performance. Designed for the most demanding motorcyclists, its plus-points include high mileage, consistent performance throughout its life-cycle and first-class performance in the wet.

The Multistrada 950 features Brembo M4.32 monobloc radial calipers with four 32 mm diameter pistons and two pads, an axial pump and dual 320 mm front discs. At the rear a 265 mm disc is gripped by a floating caliper, again by Brembo. Such top-drawer components ensure unbeatable performance, a feature that has always been a Ducati hallmark.

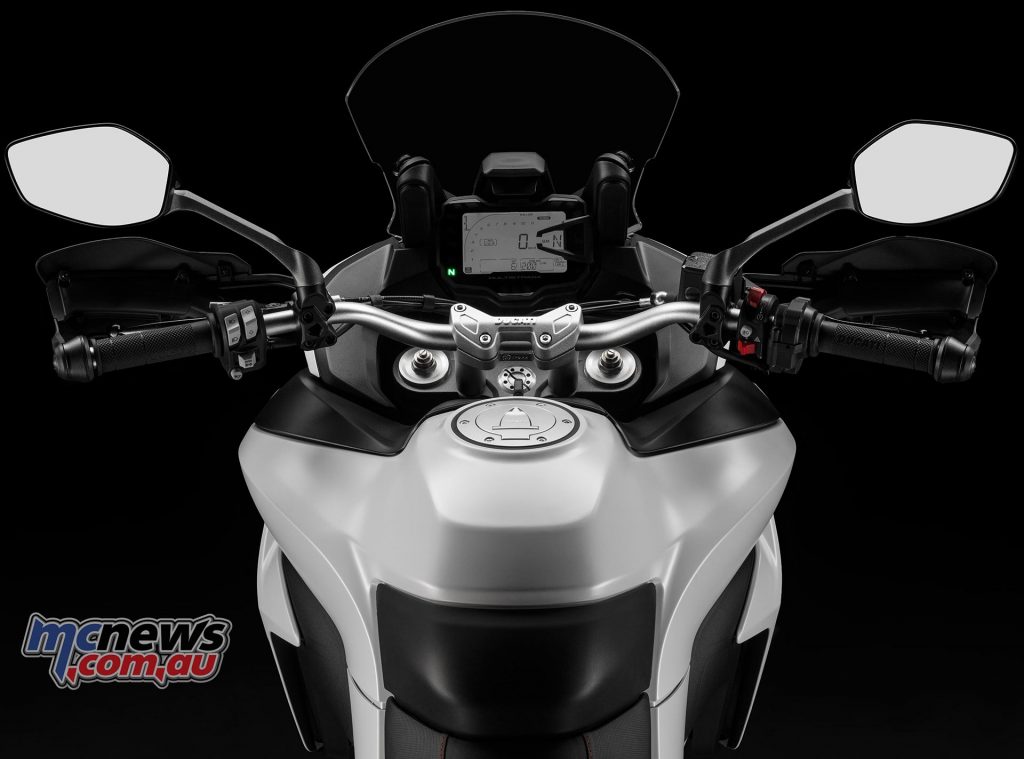

2017-ducati-multistrada-950-10
2017 Ducati Multistrada 950 – LCD display, showing DRM, DTC, and ABS settings
Electronics

The Multistrada 950 is equipped with a DSP (Ducati Safety Pack) that includes ABS and Ducati Traction Control, enhancing bike performance, optimising control and boosting safety levels.

This package is managed via four different Riding Modes, each of which (Sport, Touring, Urban and Enduro) gives the Multistrada 950 a distinctive personality thanks to different ABS and DTC (Ducati Traction Control) settings.

Multistrada 950 standard equipment also includes a Brembo braking system with ABS, controlled by the Bosch 9.1 MP control unit with integrated pressure sensor, which is part of the Ducati Safety Pack (DSP).

The 3-level system ensures short stopping distances and stability whatever the riding conditions thanks to full integration with Riding Modes. Level 1 adapts ABS intervention to off-road use: there is no intervention on the rear wheel and no rear wheel anti-lift.

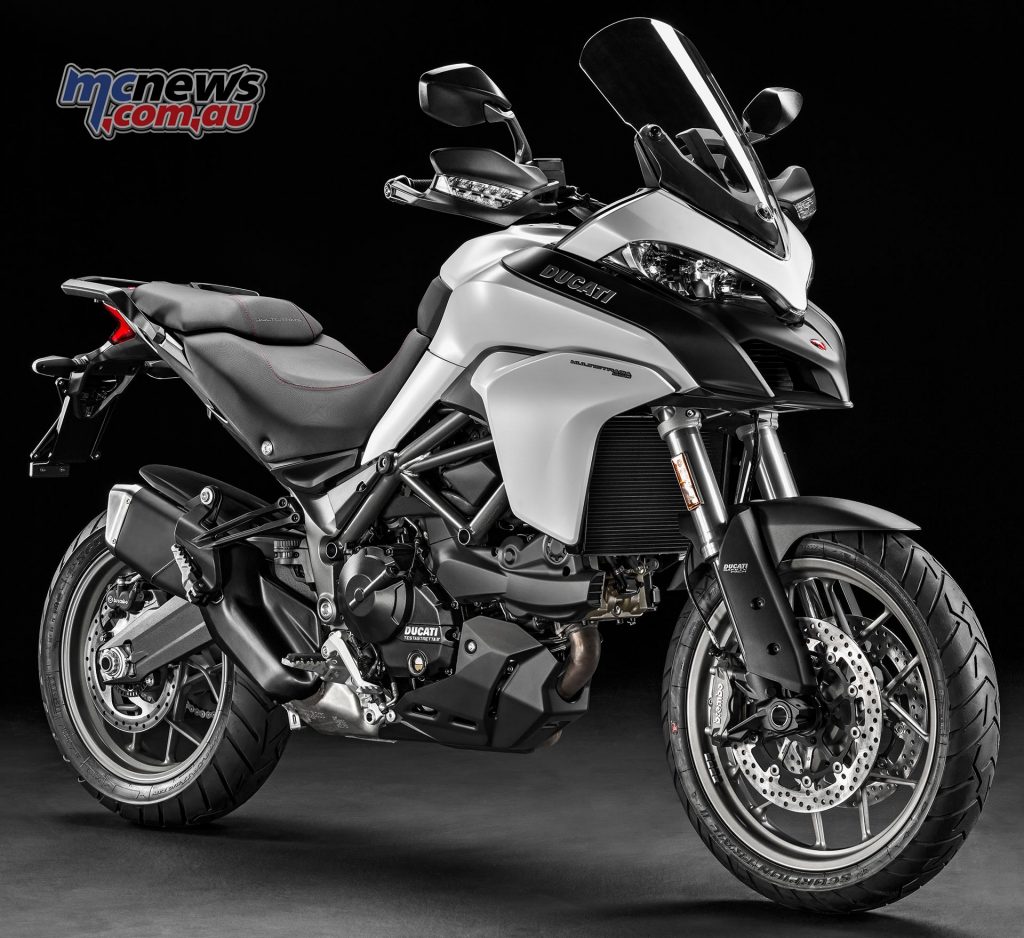

2017-ducati-multistrada-950-27
2017 Ducati Multistrada 950

Level 2 sees the ABS act on both the front and rear wheels but rear wheel anti-lift remains deactivated. Lastly, the highest level 3 setting provides maximum braking stability and rear wheel lift-up prevention. The ABS system can be deactivated in any Riding Mode and will stay off until the next Key-On.

The DTC (Ducati Traction Control) on the Multistrada 950 detects and subsequently controls any rear wheelspin, enhancing both bike performance and active safety.

The Multistrada 950 features the latest DTC software version, optimised to ensure a soft response thanks to intervention on both spark advance and throttle body control.

The system lets riders select from among 8 different profiles, each calibrated to provide a rear wheelspin tolerance that matches progressive levels of riding ability (classified from 1 to 8).

2017-ducati-multistrada-950-21
2017 Ducati Multistrada 950

Level 1 minimises system intervention and is, together with level 2, best suited to off-road use. Level 8, instead, maximises intervention and is ideal on wet roads. Ducati sets DTC levels for each of the four Riding Modes; however, these can be personalised to meet riders’ specific needs and saved on the individual menu settings.

The DTC function can be switched off in any Riding Mode and will then stay off until the next Key-On.

Ducati Riding Modes, first introduced on the Multistrada in 2010, let riders select different pre-set modes that optimise bike behaviour according to their individual riding styles and road conditions.

The Multistrada 950 has four Riding Modes (Sport, Touring, Urban and Enduro), each programmed to act on the electronic Ride-by-Wire (RbW) engine control system and the ABS and DTC levels.

The available modes stem from a combination of cutting-edge dedicated technologies. Riding Modes can be changed on the go, while personalised ABS and DTC settings need to be made with the bike at standstill with the throttle closed.

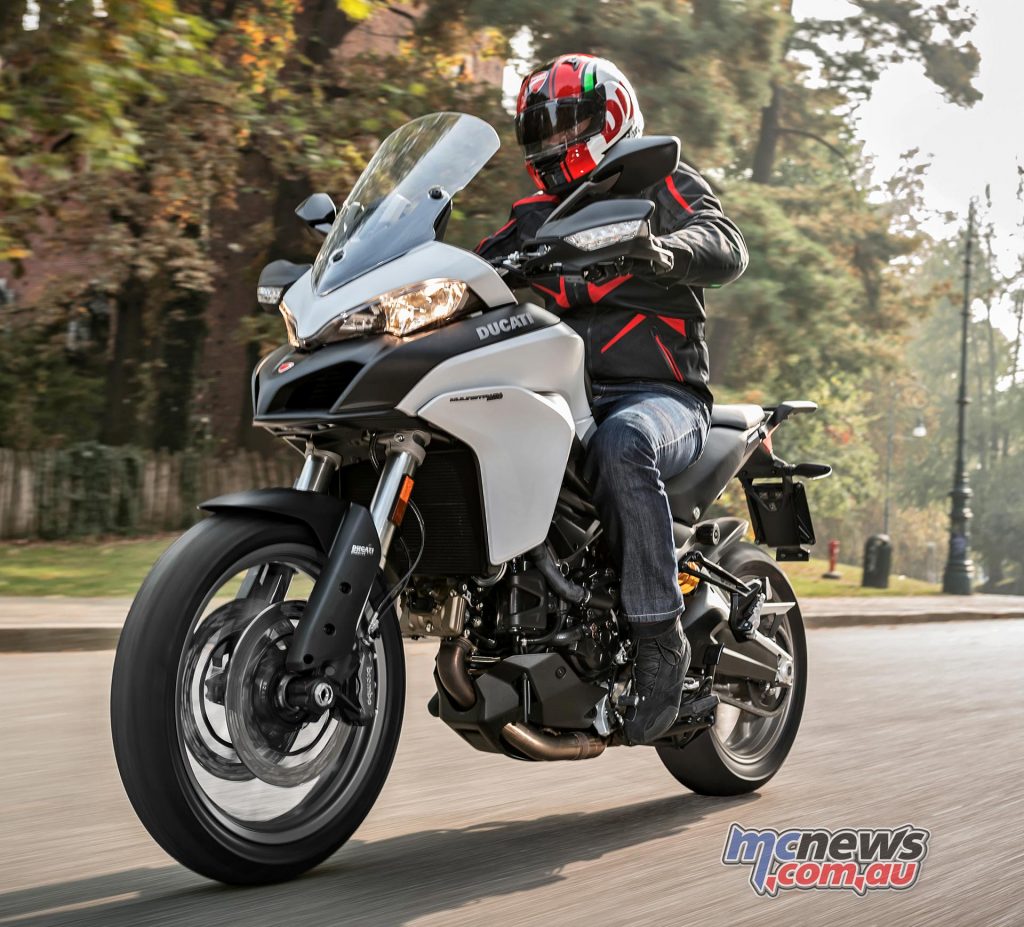

2017-ducati-multistrada-950-1
2017 Ducati Multistrada 950 – with four riding modes, two offering reduced 75hp output
Ducati Riding Modes
  • Touring Riding Mode delivers 113 hp with progressive Ride-by-Wire throttle twist response, DTC is set higher (level 5) as is the ABS (level 3), maximising both braking stability and wheel lift-up prevention.
  • Selecting Sport Riding Mode transforms the Multistrada 950 into an adrenalin-fuelled 113 hp machine. This Riding Mode is characterised by a direct Ride-by-Wire throttle twist response, a low DTC setting (level 4) and low ABS setting (level 2) with no rear wheel lift-up prevention.
  • Urban Riding Mode delivers a maximum power of 75 hp with progressive Ride-by-Wire throttle twist response; DTC is set to an even higher intervention level (level 6) and the ABS setting is at level 3, maximising braking stability and wheel lift-up prevention.
  • Enduro Riding Mode gives the Multistrada 950 a maximum power of 75 hp with progressive Ride-by-Wire throttle twist response; DTC intervention is suitable (level 2) for off-road use and the ABS setting is low (level 1), deactivating rear wheel lift-up prevention.

The Multistrada 950 instrument panel consists of a large easy-to-see LCD that provides the rider with primary and secondary information. The unit gives info on speed, rpm, total distance ridden, selected gear, trip1 and trip2, engine coolant temperature, fuel level and, of course, a clock.

And that’s not all: the display shows the selected Riding Mode, miles remaining, real-time fuel consumption, average fuel consumption, average speed, air temperature, travel time and road ice warning.

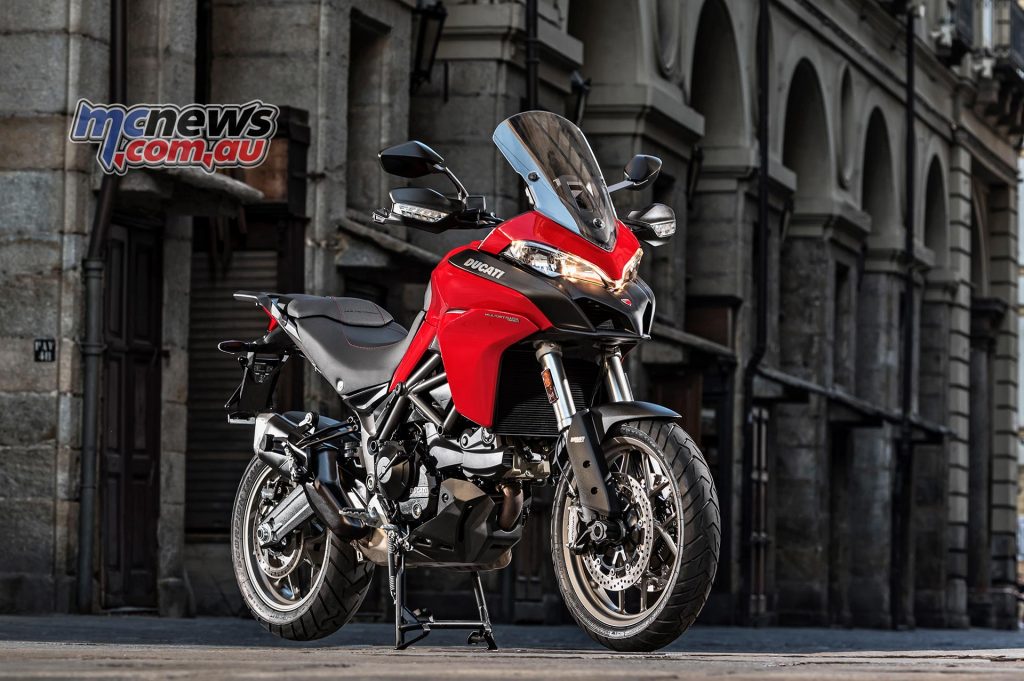

2017-ducati-multistrada-950-3
2017 Ducati Multistrada 950

Like other bikes in the Multistrada family, the 950 has an assertive-looking, high-tech headlight. At the rear there is a LED tail light. A hazard warning lights function is also available on the Multistrada 950; this is activated by pressing the dedicated key.
