KTM 1290 Super Adventure R | KTM 1090 Adventure R

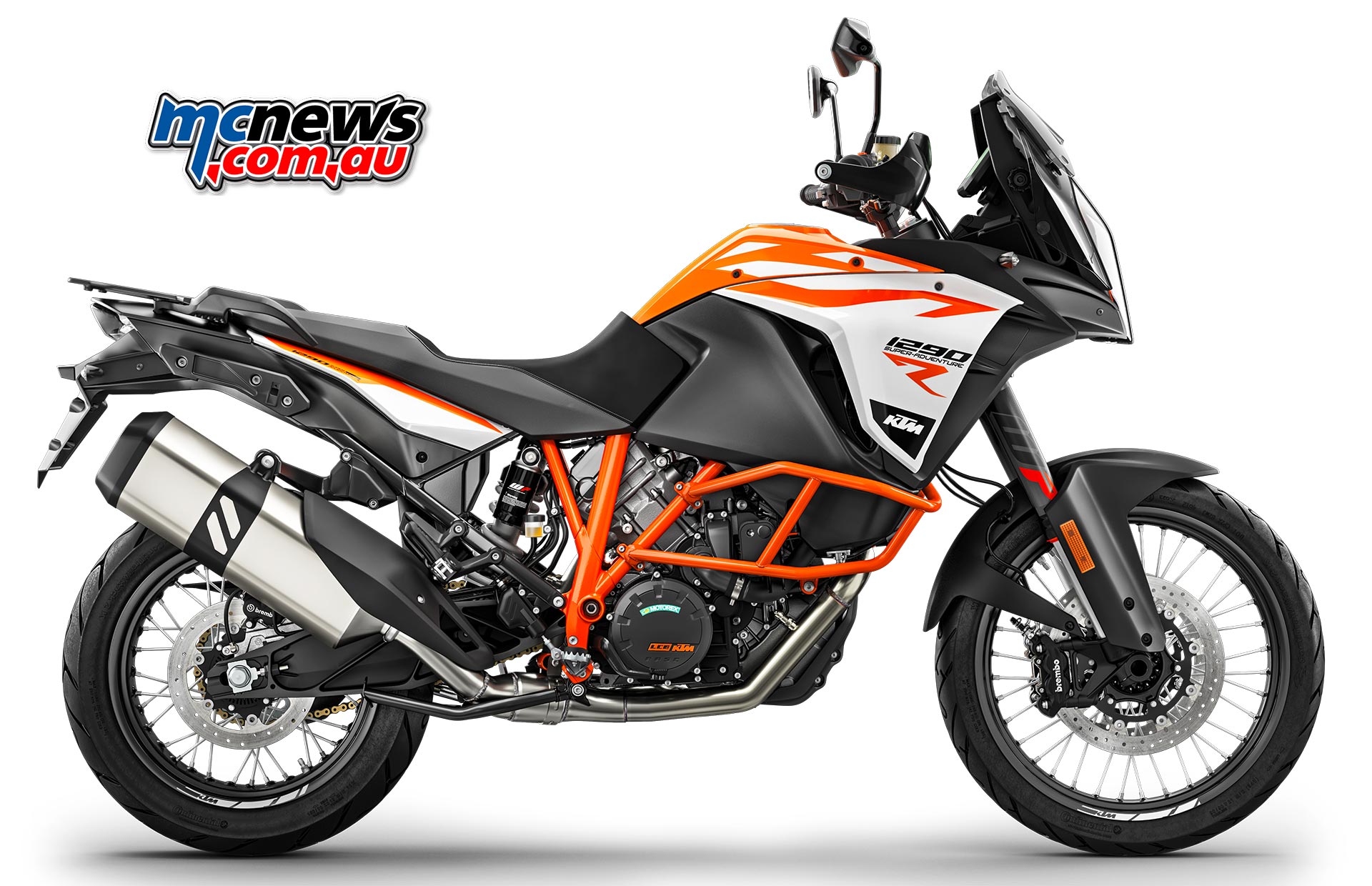

KTM 1290 Super Adventure R
KTM 1290 Super Adventure R and 1090 Adventure R scheduled to arrive in Australia in May, 2017
For all those tempted by experiences far off the beaten track, KTM has put the new KTM 1290 Super Adventure R onto its large, 18 and 21 inch laced wheels.
KTM claim the new 1290 Super Adventure R is the highest-performing fully offroad capable Travel Enduro on the market at 160 hp (118 kW), it is ready to back up the promise of its breathtaking KISKA design and authentic rally looks at any time.
Wherever the tarmac ends, the 1290 Super Adventure R becomes the quickest connection between two places. That is ensured by plenty of suspension travel, a fully adjustable WP Suspension chassis and tubeless enduro tyres.
At the same time, the most sophisticated electronic assistance package on the market, the Motorcycle Stability Control (MSC) with leanangle sensitive ABS and traction control, delivers maximum safety and perfect control in any riding situation.
A new 6.5’’ TFT display takes care of optimum rider information, and thanks to the new LED headlights with electronically controlled LED cornering lights, riders will never lack visibility even in the darkest night.
KTM 1290 Super Adventure R Technical Specifications
- Engine – 1301cc, 75-degree v-twin
- Bore x Stroke – 108x71mm
- Power – 160hp at 8750rpm
- Torque – 140Nm at 6750rpm
- Compression Ratio – 13.1:1
- Induction – Keihin EFI 52mm throttle bodies
- Engine Management – Keihin EMS with RBW, cruise control, twin plugs per cylinder
- Transmission – Six speed, slipper clutch
- Frame – Chromium-Molybdenum-Steel trellis frame, powder coated
- Front Suspension – 48mm WP inverted forks, 220mm travel
- Rear Suspension – WP PDS shock, 220mm travel
- Brakes – Brembo four-piston radial calipers and 320mm discs (F); 267mm rear disc Brembo fixed caliper (R). Bosch 9ME ABS
- Rims – Spoked alloy; 2.5×21″ (F); 4.5×18″ (R), tubeless
- Tyres – 90/90-21 (F); 150/70-18 (R)
- Steering Head Angle – 64-degrees
- Trail – 123mm
- Wheelbase – 1580 +/- 15mm
- Ground Clearance – 250mm
- Seat Height – 890mm
- Fuel Capacity – 23 litres
- Dry Weight – 217kg – 240kg with all fluids and full tank of fuel
KTM 1090 Adventure R
The adventure bike for all who refuse to stop just because the tarmac ends, and thus have the highest requirements regarding the cross-country mobility of their Travel Enduro.
At 125 hp (92 kW), the new KTM 1090 Adventure R has long stroked, fully adjustable suspension components by WP Suspension, laced wheels in the enduro dimensions of 18 and 21 inches, and a chassis fully supporting unrestrained offroad riding.
Roads may end, but the riding fun on the “R” goes on – thanks to multi-mode ABS, traction control and four KTM ride modes. It can be so easy to escape the daily grind.
KTM 1090 dventure R Technical Specifications
- Engine – 1050, 75-degree v-twin
- Bore x Stroke – 103x631mm
- Power – 125hp at 8500rpm
- Torque – 109Nm at 6500rpm
- Compression Ratio – 13.0:1
- Induction – Keihin EFI 52mm throttle bodies
- Engine Management – Keihin EMS with RBW, cruise control, twin plugs per cylinder
- Transmission – Six speed, slipper clutch
- Frame – Chromium-Molybdenum-Steel trellis frame, powder coated
- Front Suspension – 48mm WP inverted forks, 220mm travel
- Rear Suspension – WP PDS shock, 220mm travel
- Brakes – Brembo four-piston radial calipers and 320mm discs (F); 267mm rear disc Brembo fixed caliper (R). Bosch 9M+ ABS
- Rims – Spoked alloy; 2.5×21″ (F); 4.5×18″ (R), tubeless
- Tyres – 90/90-21 (F); 150/70-18 (R)
- Steering Head Angle – 64-degrees
- Trail – 123mm
- Wheelbase – 1580 +/- 15mm
- Ground Clearance – 250mm
- Seat Height – 890mm
- Fuel Capacity – 23 litres
- Dry Weight – 207kg – 230kg with all fluids and full tank of fuel
