Mondial 175 | Turismo Veloce | Sport | Gran Sport

Phil Aynsley by Phil Aynsley
September 20, 2018
in Features, Motorcycle News
A A
Share on FacebookShare on TwitterShare

Mondial 175 OHC

Mondial Turismo Veloce
Mondial Sport – Mondial Gran Sport

With Phil Aynsley


Mondial is best known for their very successful Grand Prix 125 and 250 bikes (125cc World Champion in 1949, 1950, 1951 & 1957 / 250cc World Champion in 1957) the company had its origins with the F.B. company.

PA Mondial OHC Single TV
F.B Mondial

The company was founded in 1929 by Giuseppe Boselli (who was earlier involved with GD and CM motorcycle companies) together with his three brothers.

PA Mondial OHC Single TV

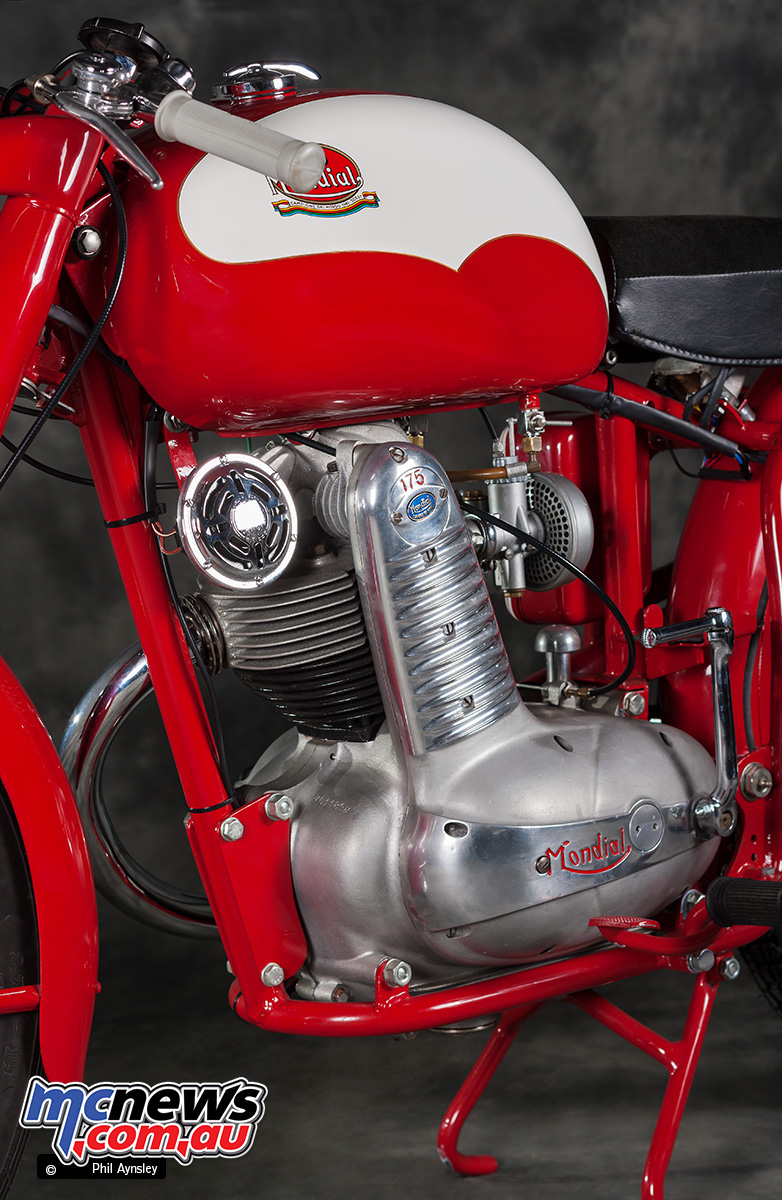

Mondial produced high performance, small capacity road bikes until the ’60s – Mondial 175 TV or Turismo Veloce

They manufactured three-wheeled delivery vehicles up until the factory was destroyed in WWII. In 1948 Giuseppe purchased an advanced DOHC 125cc single designed by Alfonso Drusiani and soon after hired him to run the new racing department.

PA Mondial OHC Single Sport

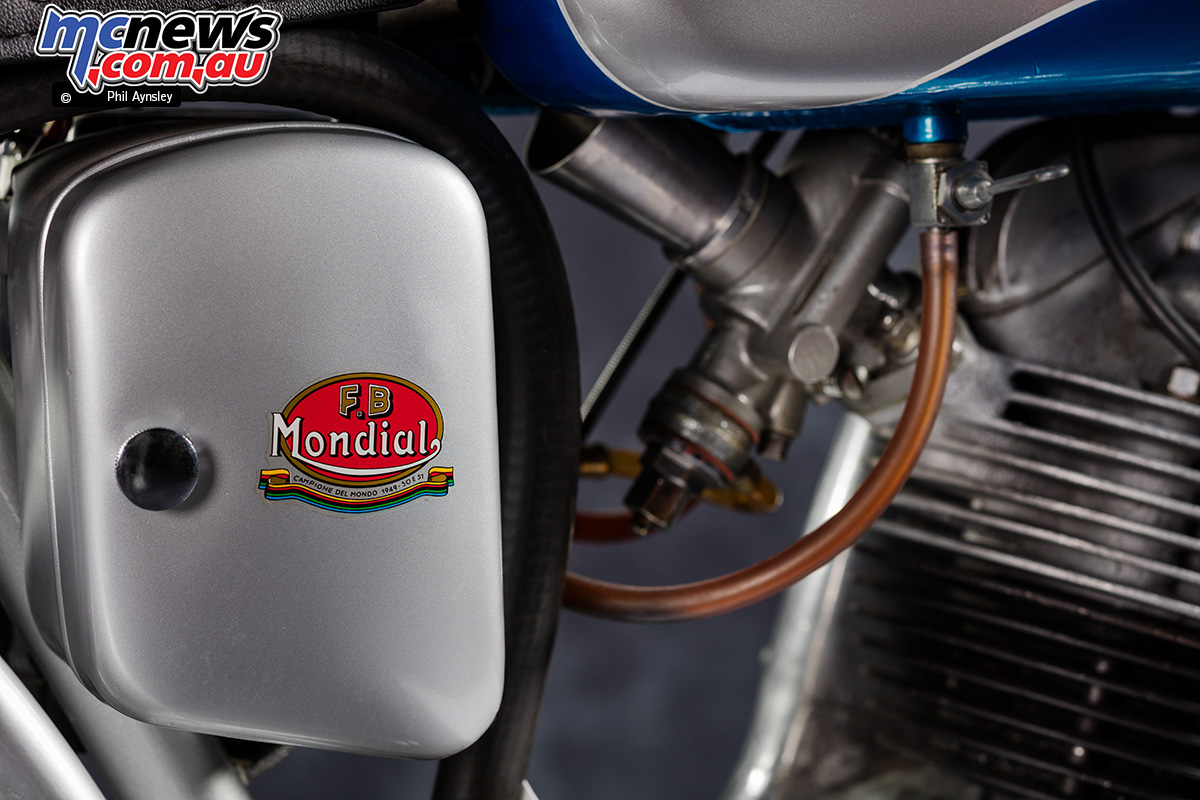

The Mondial 175 Sport

Mondial produced small numbers of high performance, small capacity road bikes from 1948 through to 1960. After 1960 the company ceased production of their own engines apart from the two-stroke 48cc motor and bought in 125cc two-stroke motors from Sachs and Minarelli.

PA Mondial OHC Single GS

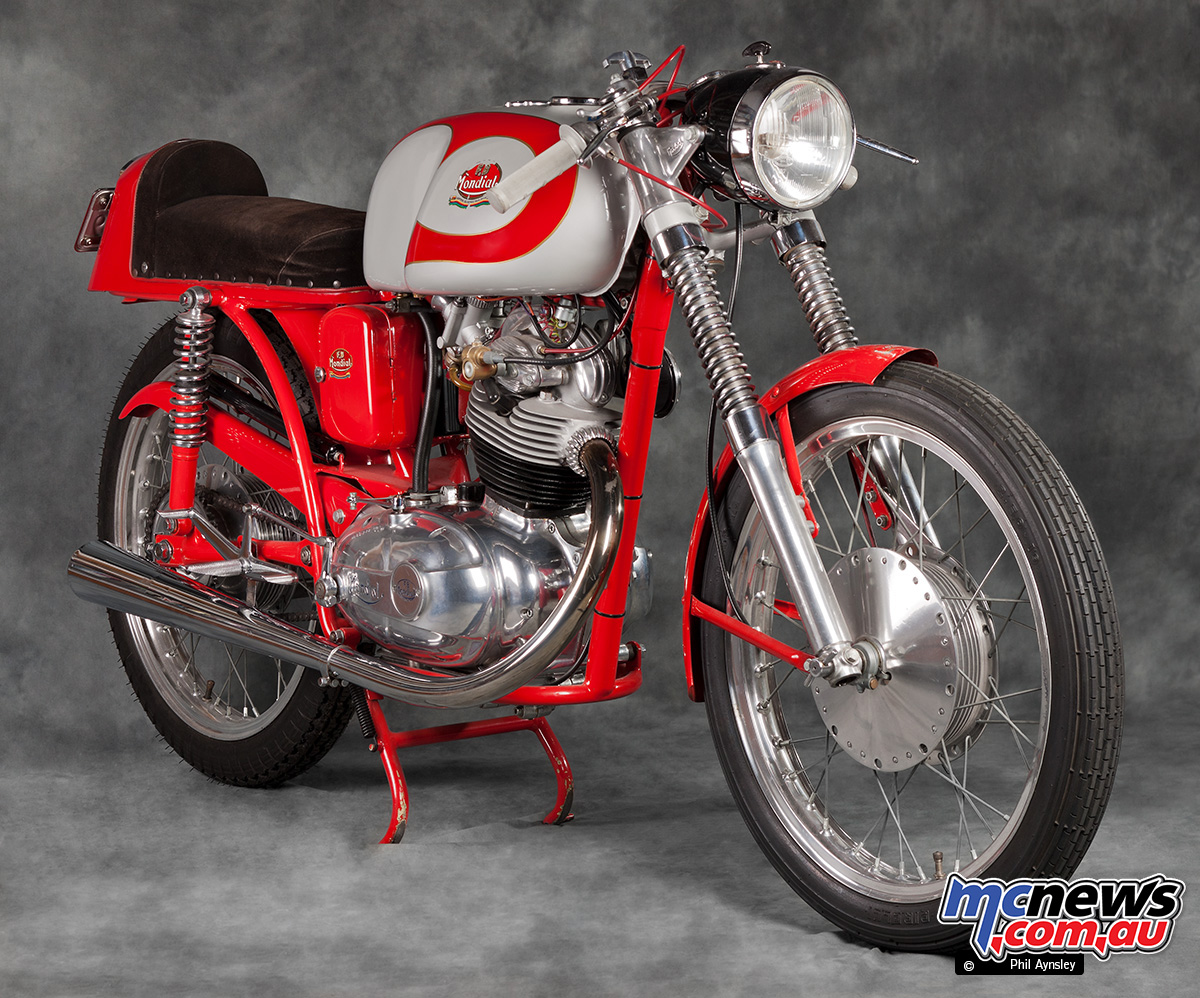

The Mondial 175 Gran Sport was particularly rare

The Sachs/Minarelli engines would be used until the factory closed at the end of 1979, although from ‘66 to ‘70 the company resurrected their 1950s 160cc two-stroke motor for use in the Sprint model.

PA Mondial OHC Single Sport

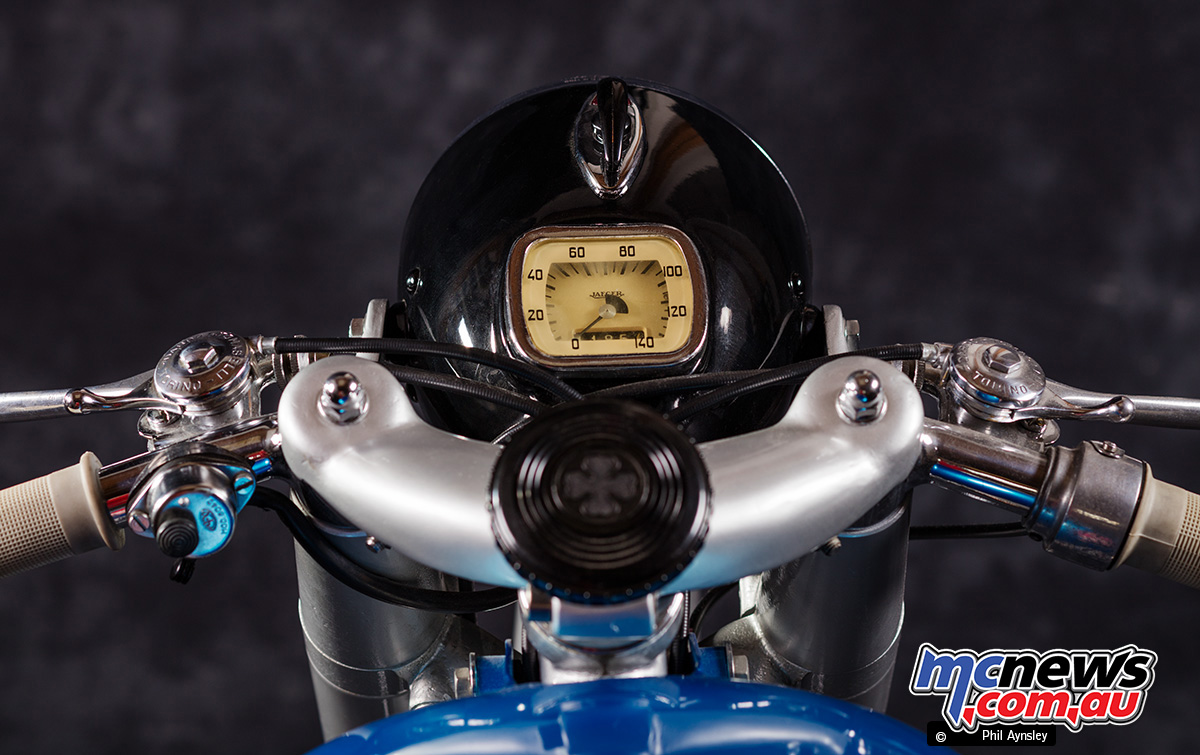

Mondial 175 Sport

The company’s range of OHC 175cc singles produced in the late ‘50s were quintessential Italian sports bikes and available in three models, the TV, Sport and Gran Sport.

PA Mondial OHC Single TV

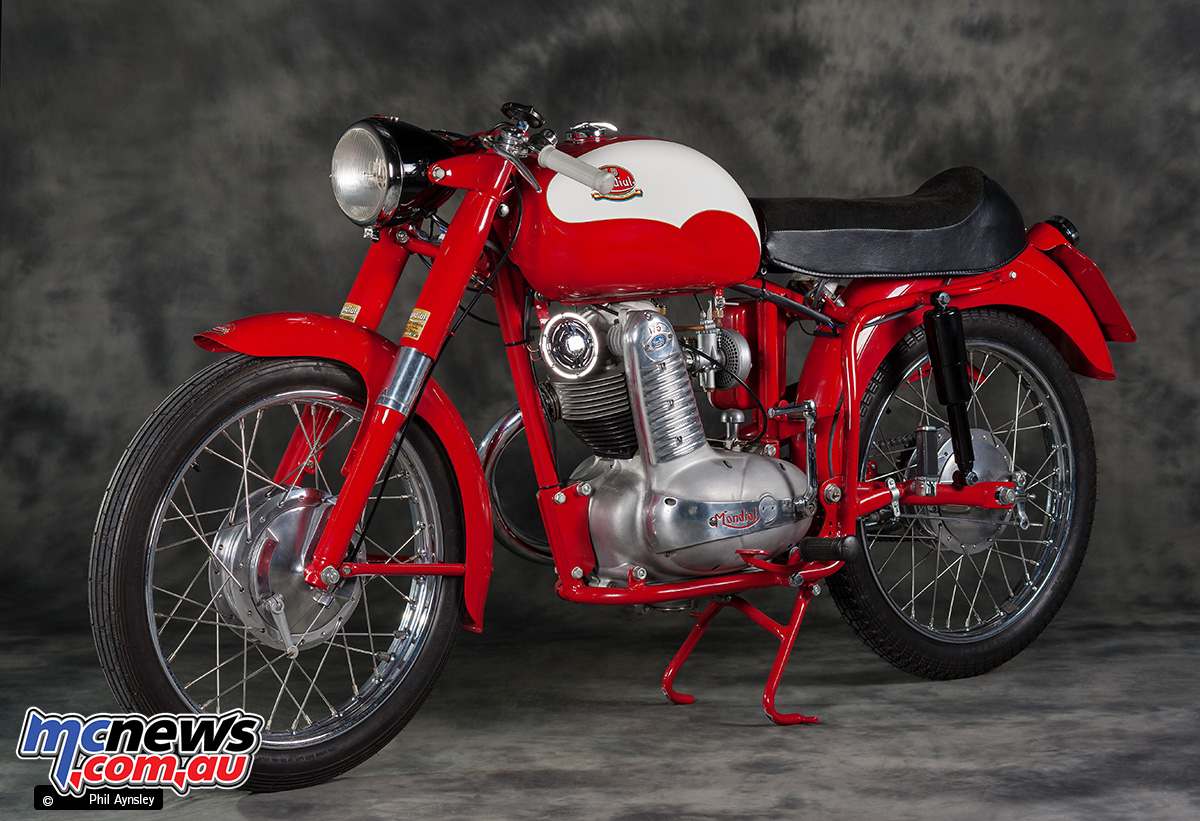

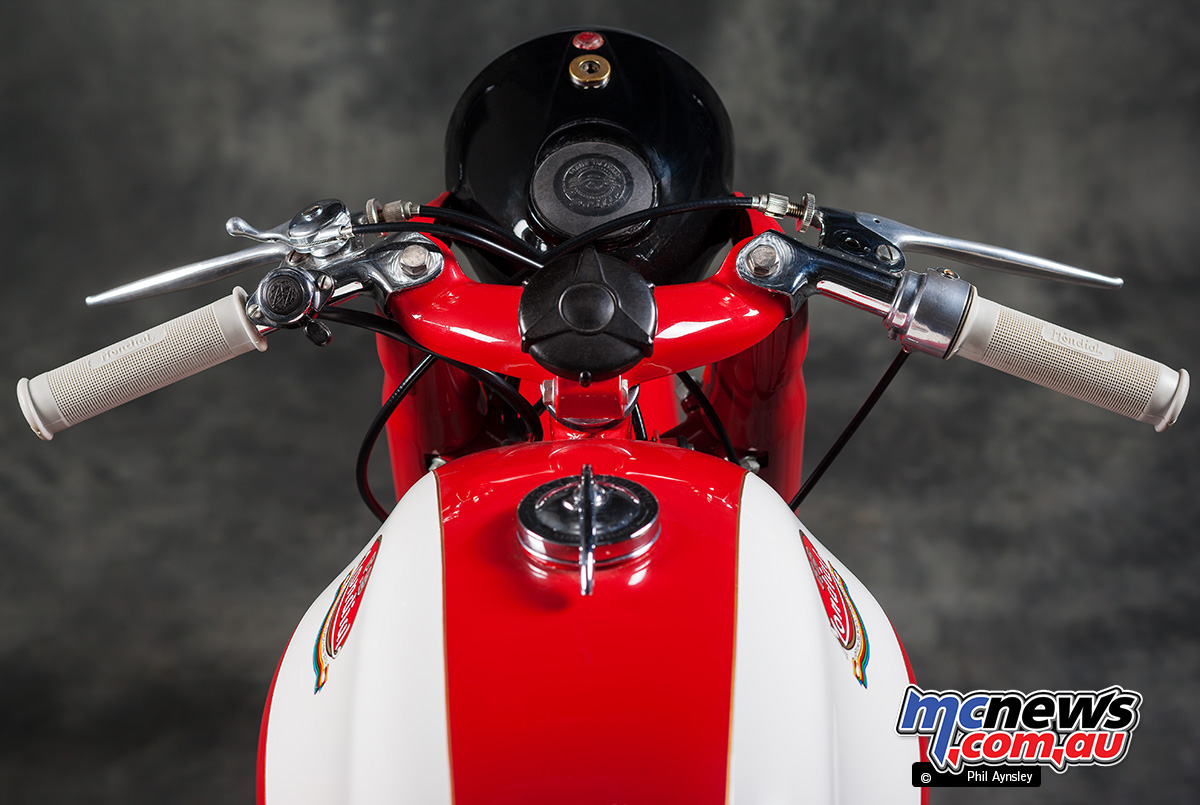

Mondial 175 TV or Turismo Veloce

The Turismo Veloce was the base model, introduced in 1956, and was Mondial’s second large capacity design to enter production (the 1951 200 was the first). The OHC was driven by a chain and a four speed gearbox was fitted.

PA Mondial OHC Single TV
Speeds of up to 110km/h were possible

Output was about 14hp which gave a top speed of 110km/h. This example has a few non original parts – the seat is the wrong shape and has a suede section not found on the original; the shock absorber lower sections should be in metal and the tool box should painted in a solid colour.

PA Mondial OHC Single Sport

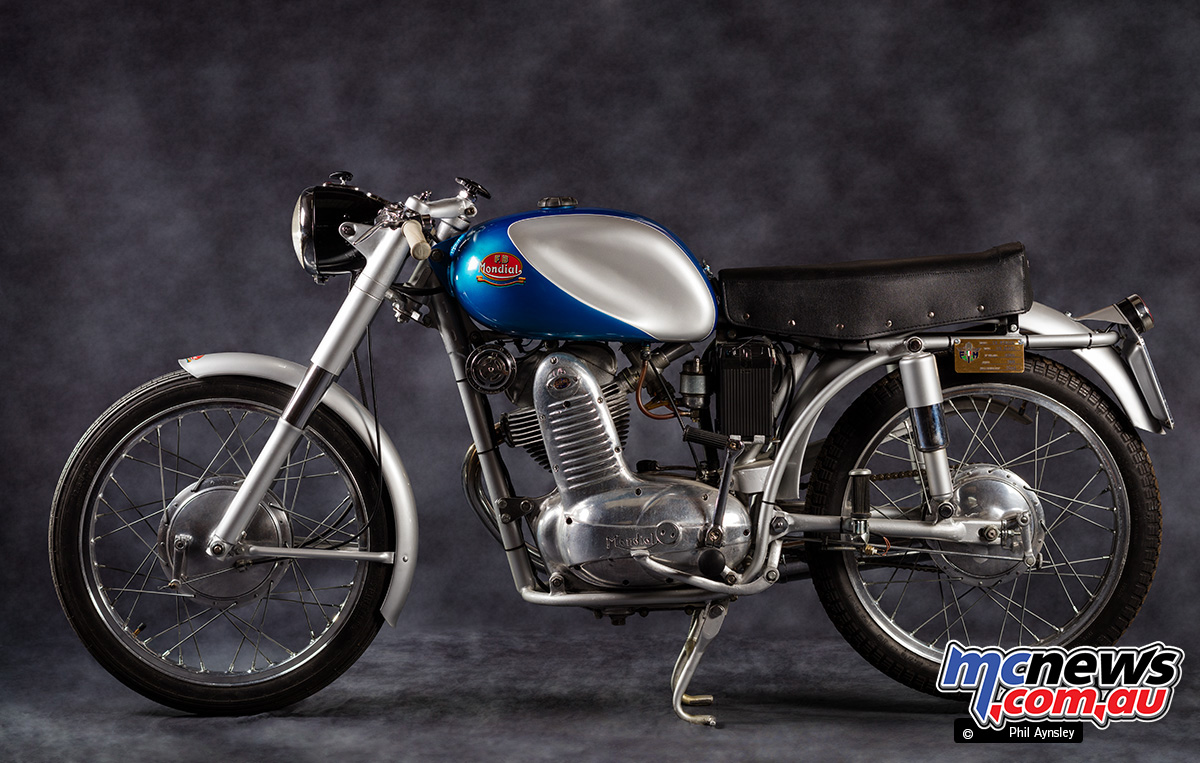

The Mondial 175 Sport was an upgrade over the TV with a higher performance powerplant

Compared to the TV the mid-level Sport had a revised cam, larger valves and a larger carburettor among other upgrades. The frame was also quite different. While it was introduced in the same year as the TV, this is a 1958 example.

PA Mondial OHC Single GS

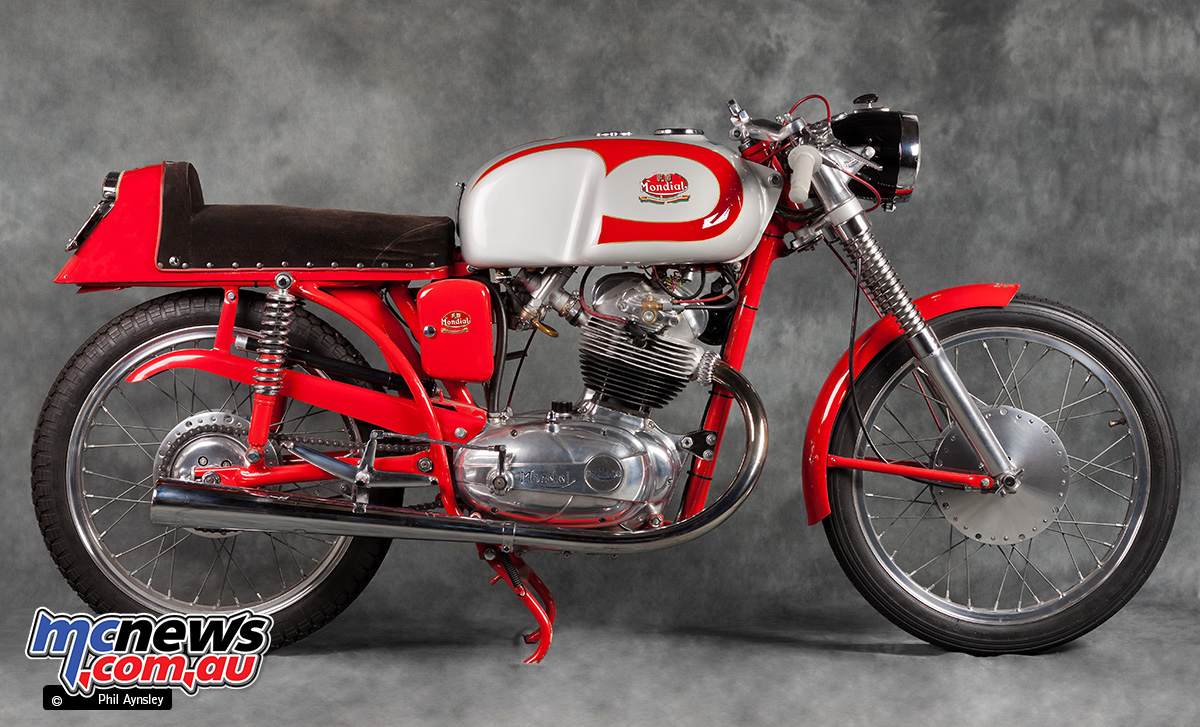

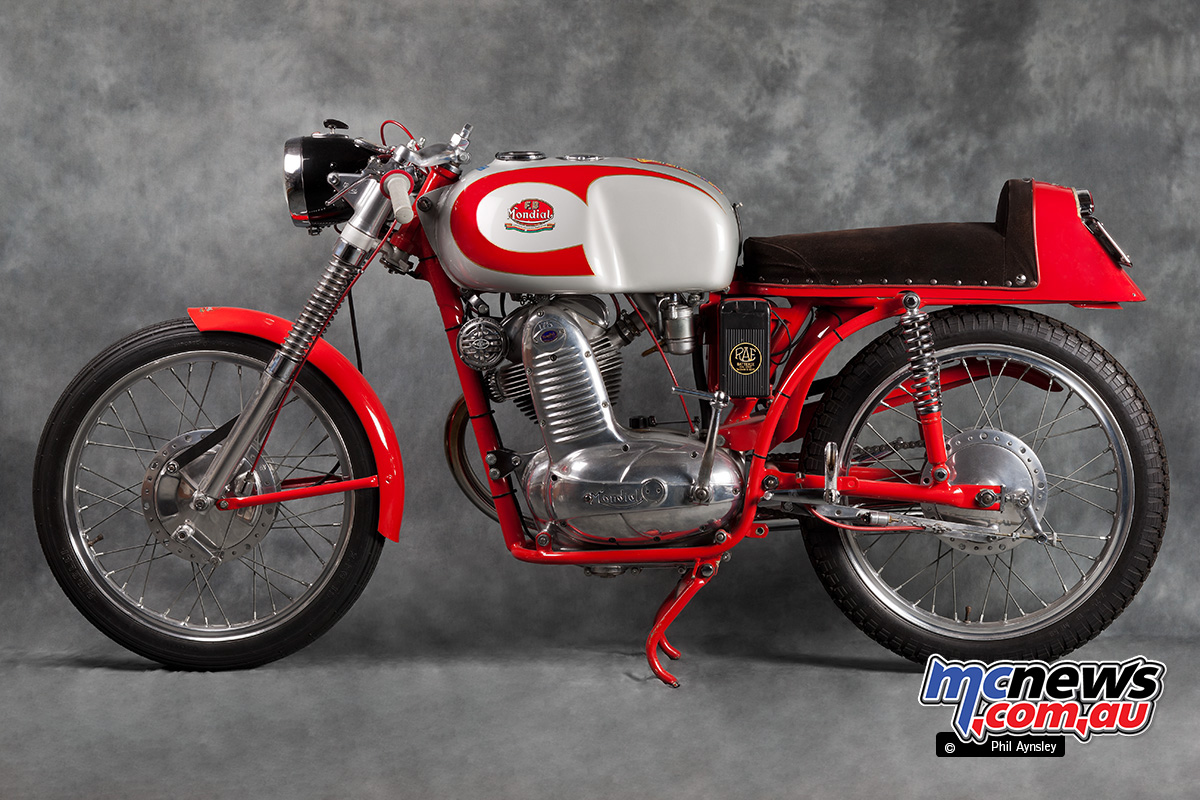

The Mondial 175 Gran Sport was the highest performance version

The Gran Sport was only built in very small numbers and was intended for use in the Italian Formula III road races.

PA Mondial OHC Single GS

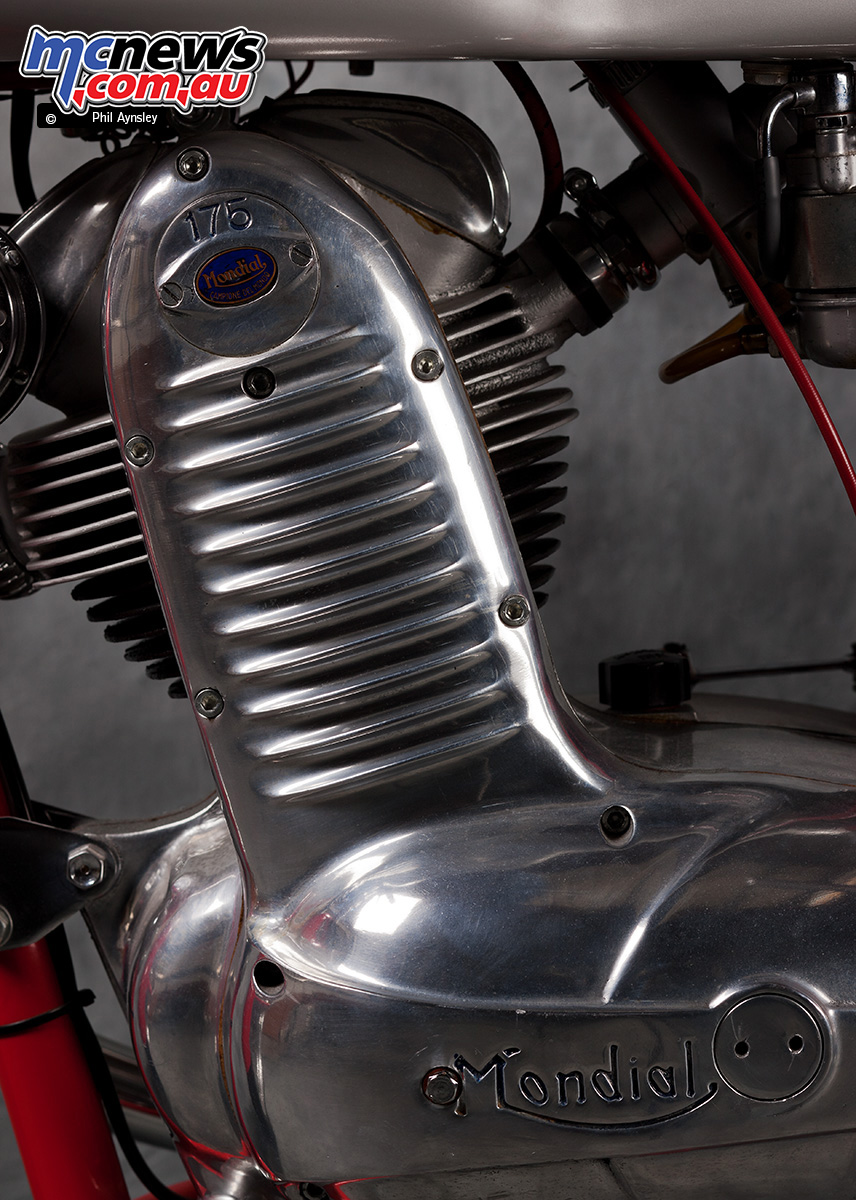

The Gran Sport shared features of the Sport, but was far more highly strung

While externally the motor was almost identical to the Sport, it was in a considerably higher state of tune and had a more over square bore/stroke of 65 x 52.5mm rather than the standard 60 x 62mm.

PA Mondial OHC Single GS

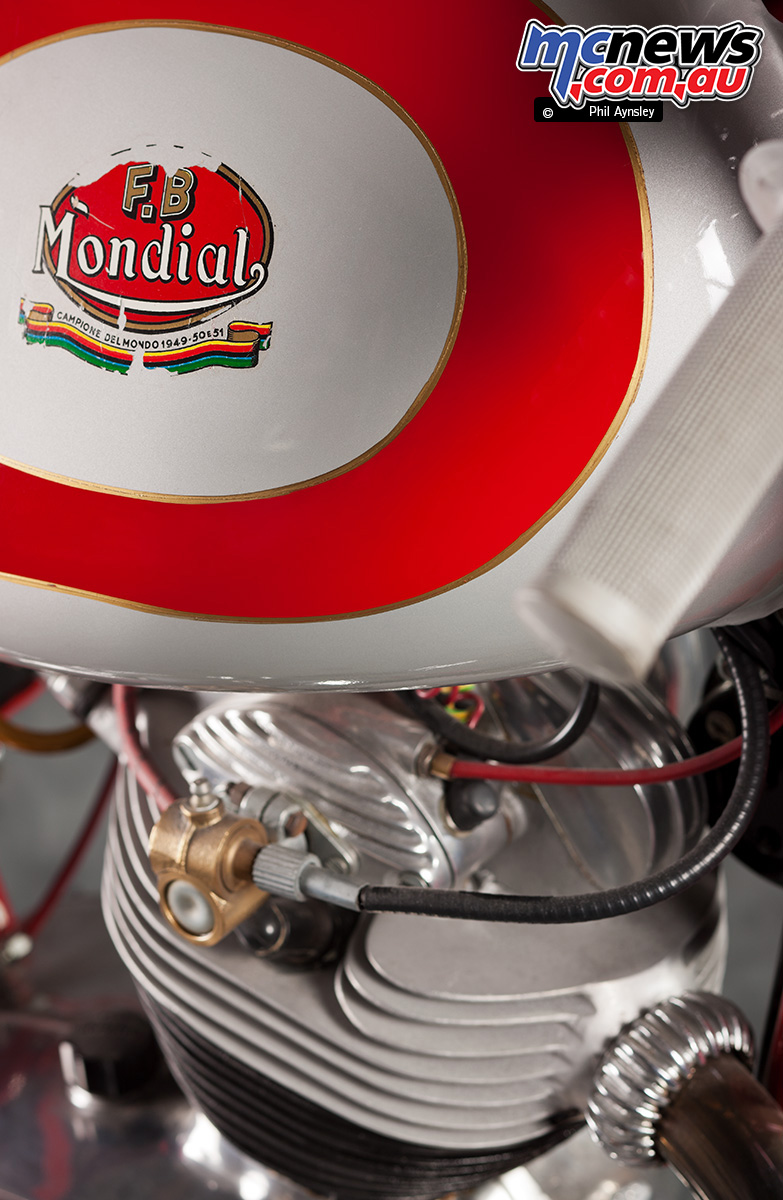

Mondial 175 Gran Sport

It was introduced in 1957. All three of these chain-driven OHC models were discontinued in 1958, after lower cost OHV replacements began production in 1957.

PA Mondial OHC Single GS
Mondial 175 Gran Sport

PA Mondial OHC Single GS
Mondial 175 Gran Sport

PA Mondial OHC Single Sport
Mondial 175 Sport

PA Mondial OHC Single TV
Mondial 175 Turismo Veloce

PA Mondial OHC Single Sport
Mondial 175 Sport

PA Mondial OHC Single TV
Mondial 175 Turismo Veloce

PA Mondial OHC Single Sport
Mondial 175 Sport

PA Mondial OHC Single Sport
Mondial 175 Sport

PA Mondial OHC Single GS
Mondial 175 Gran Sport

PA Mondial OHC Single TV
Mondial 175 Turismo Veloce

PA Mondial OHC Single TV
Mondial 175 Turismo Veloce

PA Mondial OHC Single TV
Mondial 175 Turismo Veloce

PA Mondial OHC Single Sport
Mondial 175 Sport

PA Mondial OHC Single Sport
Mondial 175 Sport

PA Mondial OHC Single GS
Mondial 175 Gran Sport

PA Mondial OHC Single Sport
Mondial 175 Sport
