Cagiva C590 Grand Prix bike
With Phil Aynsley
For the 1990 season, the Cagiva Team fielded three riders – Randy Mamola, Ron Haslam and Alex Barros.
Barros was the best placed rider at the end of a bad season for the team, in 12th place. His best result was a fifth in the Belgian GP and the three riders had a total of 17 top ten places.
The bike was not much changed from the previous year’s machine, but a carbon-framed bike appeared at the Czech GP near the end of the season.

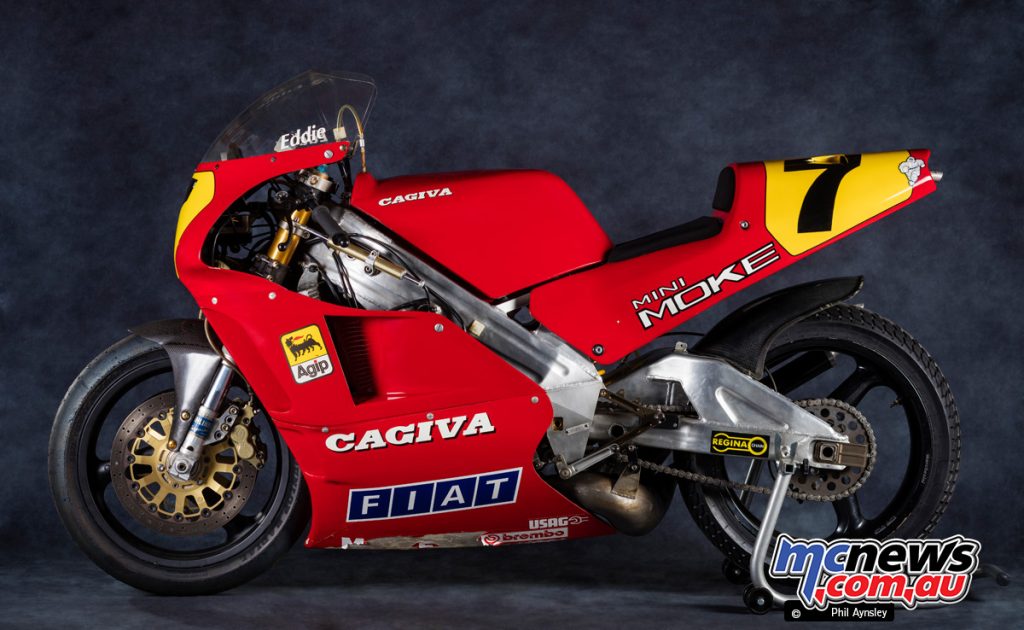

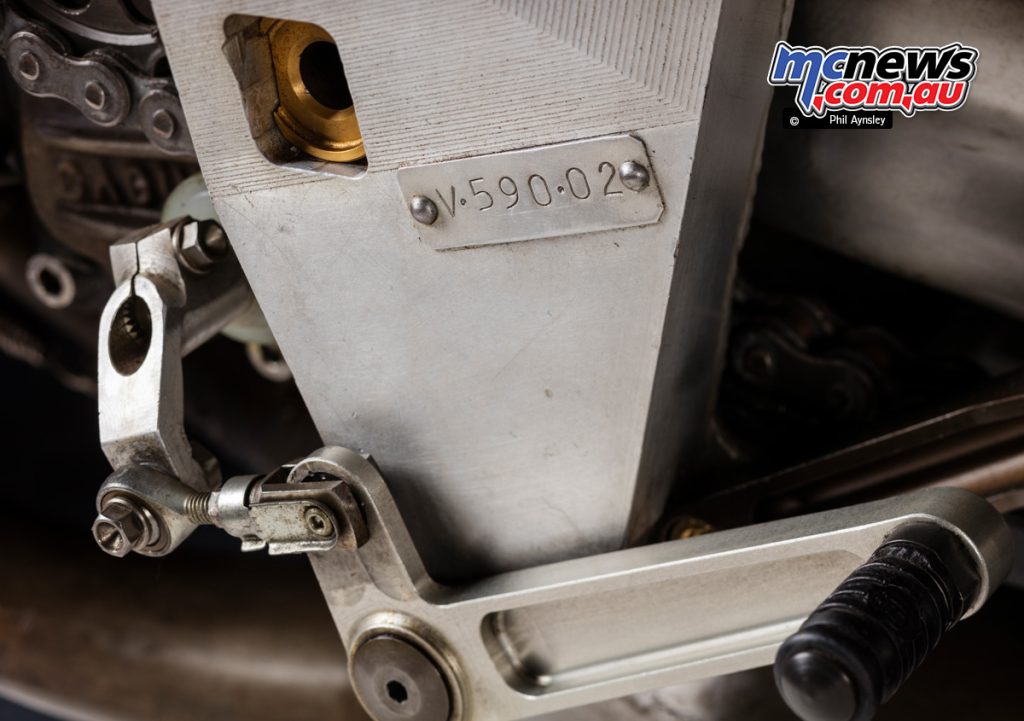

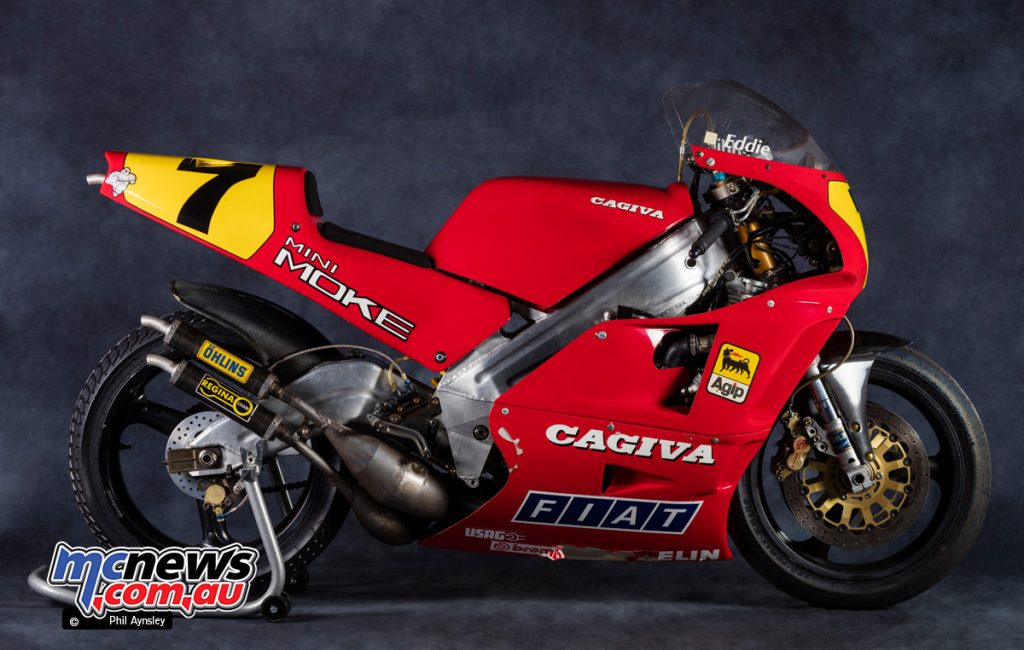

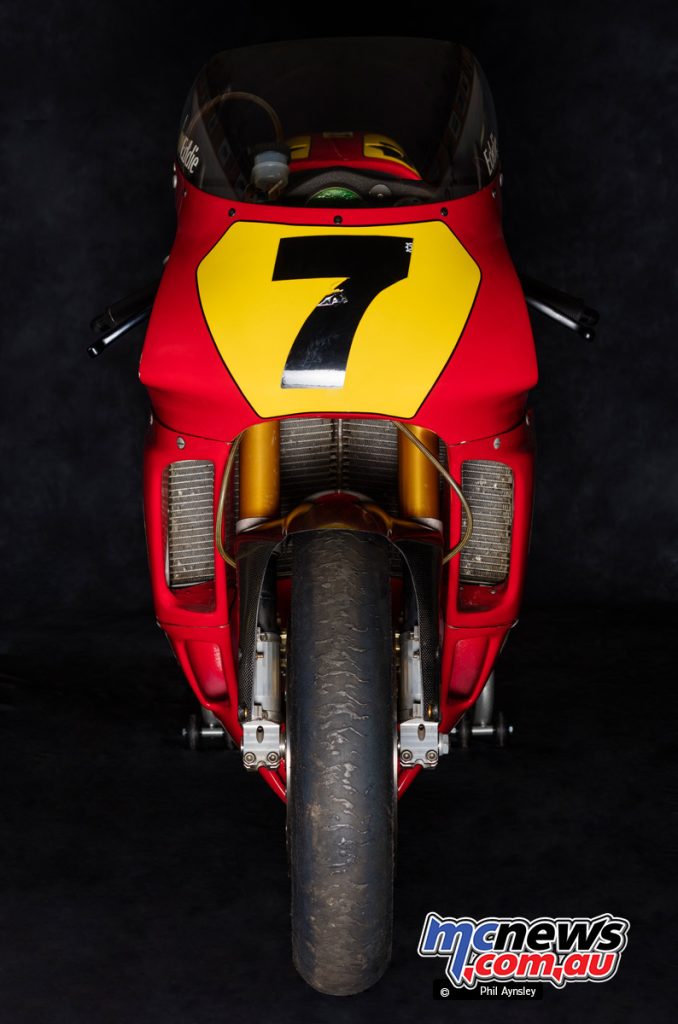

The bike I photographed is incorrectly painted in Eddie Lawson colours and is probably an ex-Mamola bike with chassis number V.590.02 and engine number 48.
You can also check out (links):
Cagiva’s C594 500cc GP Racer | The Cagiva C593
 Randy Mamola’s Cagiva C589 Racer
| 1990 Cagiva C590 Racer | |

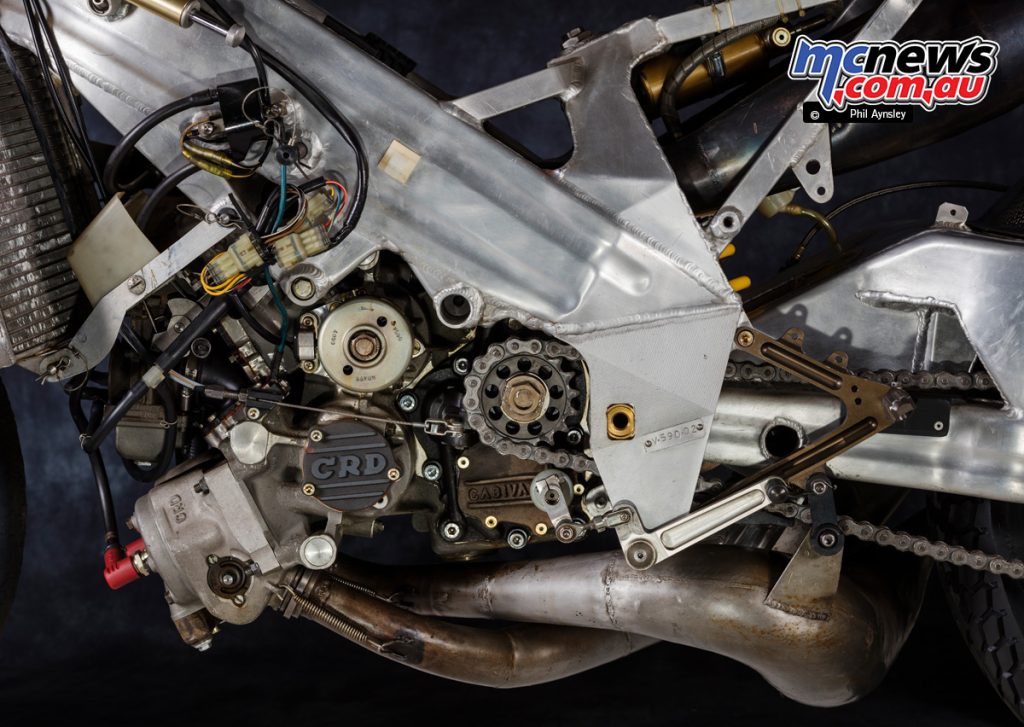

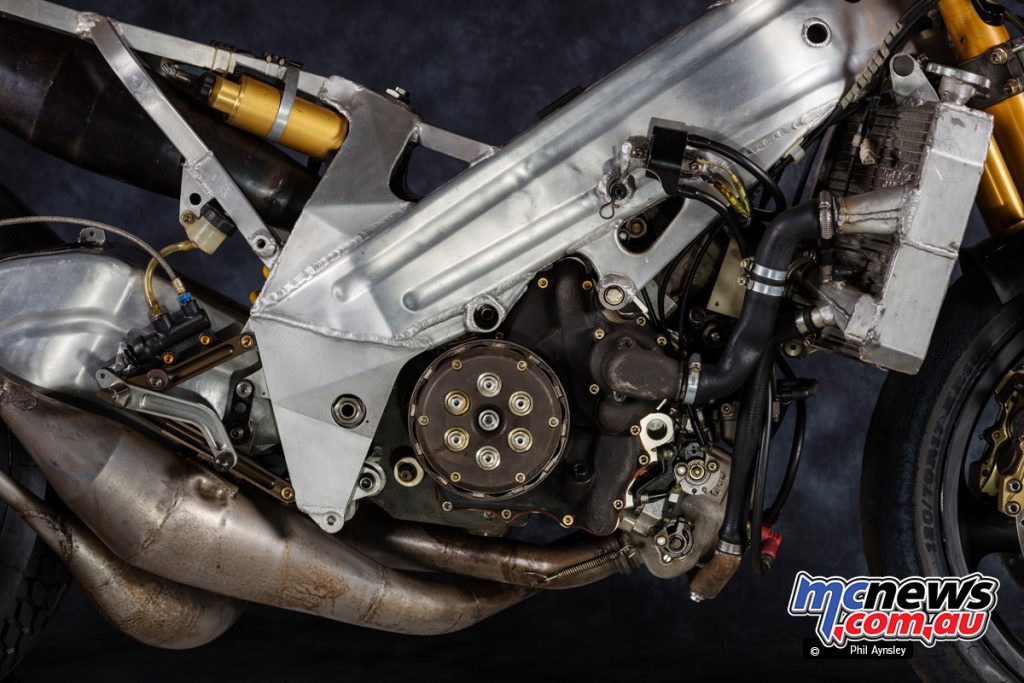

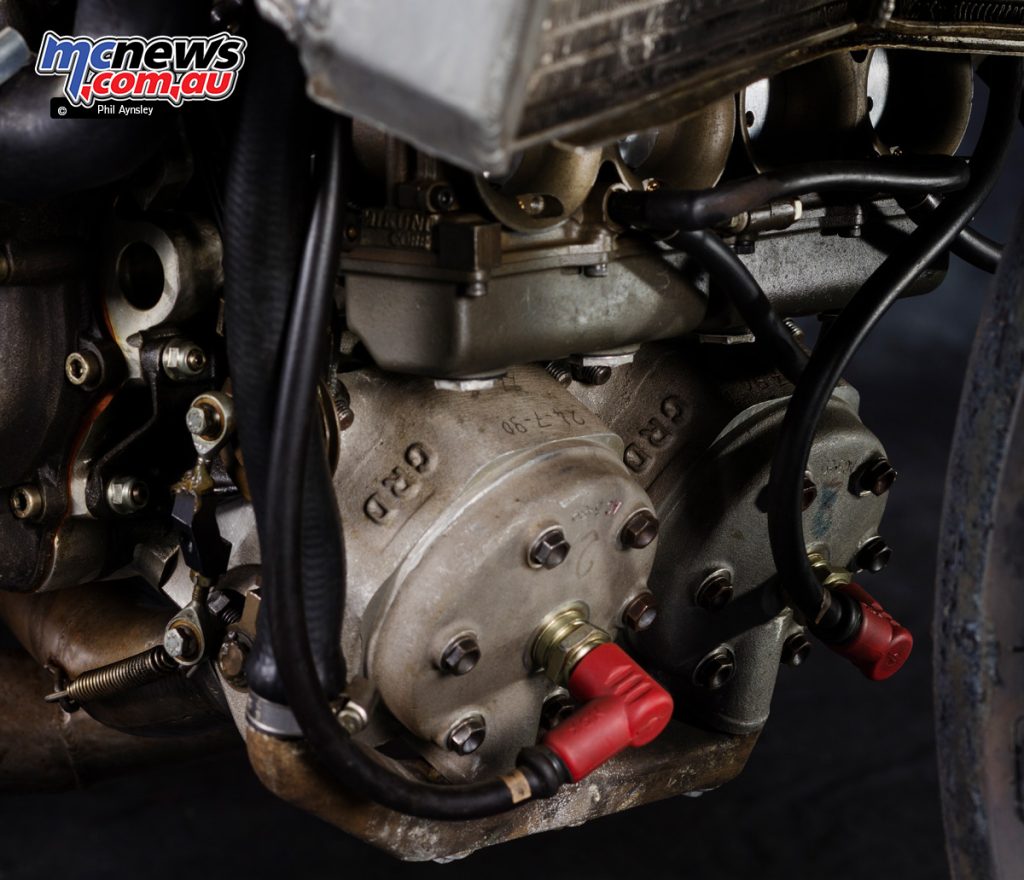

| Engine | 492.6 cc two-stroke, four-cylinder with an 80° V angle |
| Bore x stroke | 56 × 50 mm |
| Power | 110.3 kW (150 HP) at 12000 rpm |
| Torque | 83.3 Nm (61.4 ft-lbs) @ 11500 rpm |

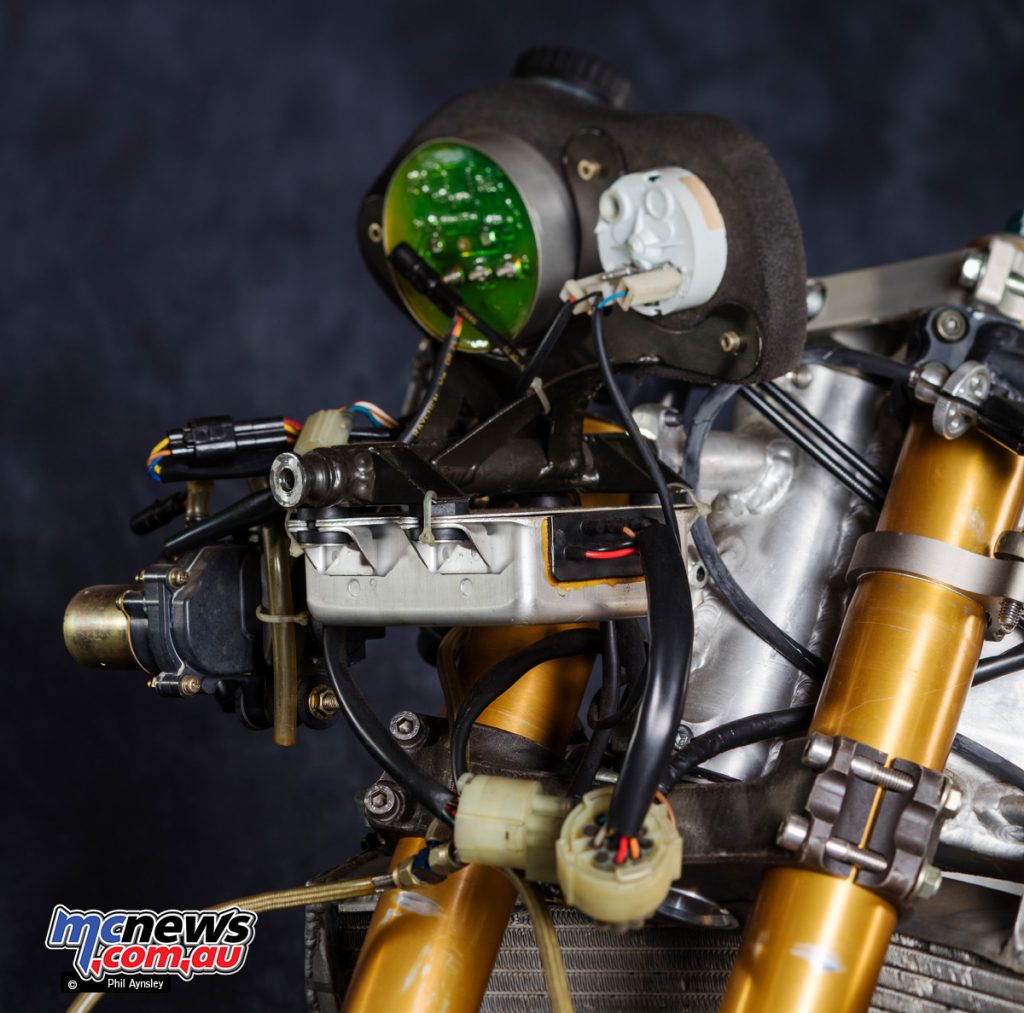

| Ignition | Magneti Marelli CDI |
| Gearbox | Six-speed removable sequential |

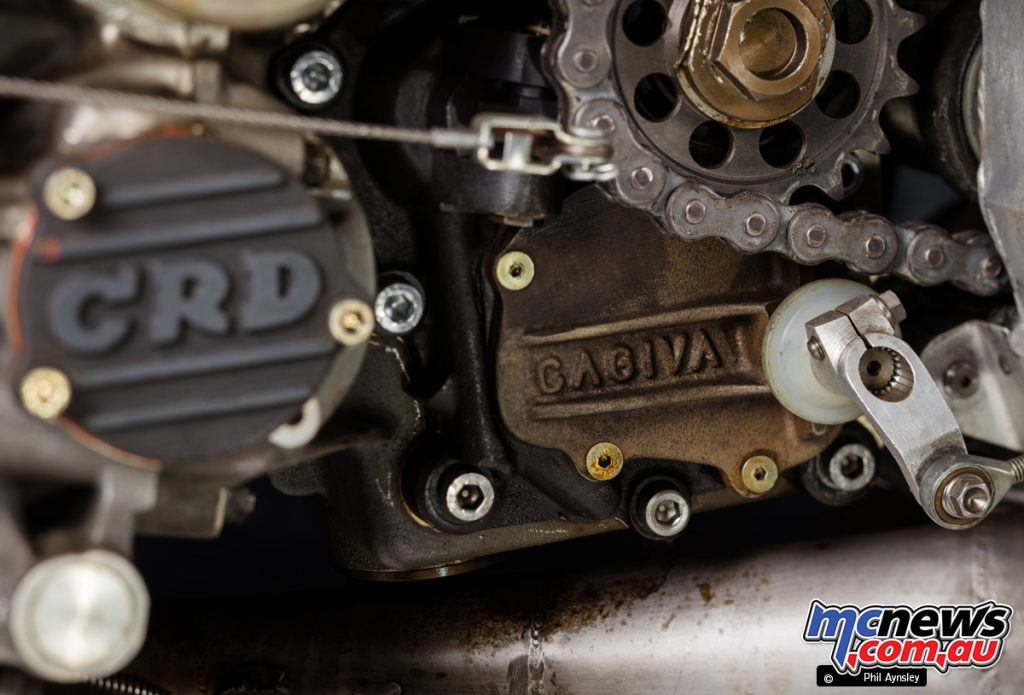

| Final Drive | Chain |

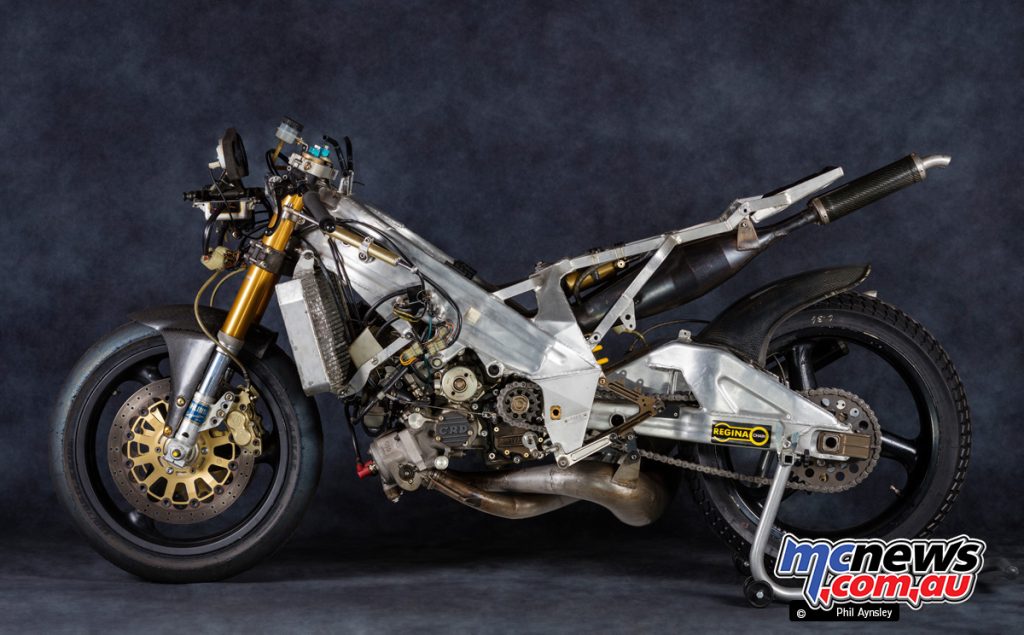

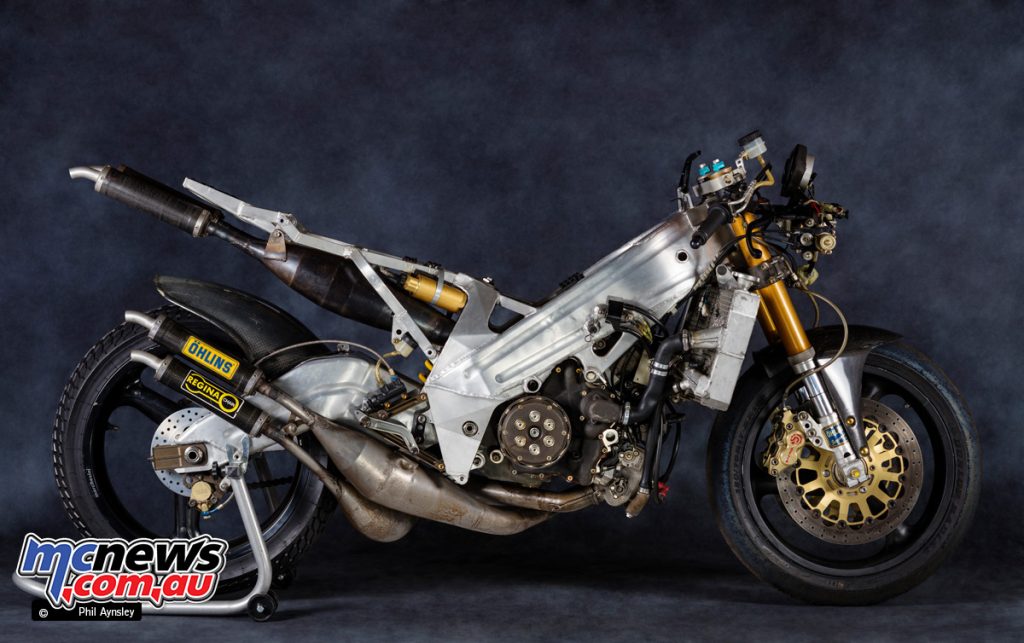

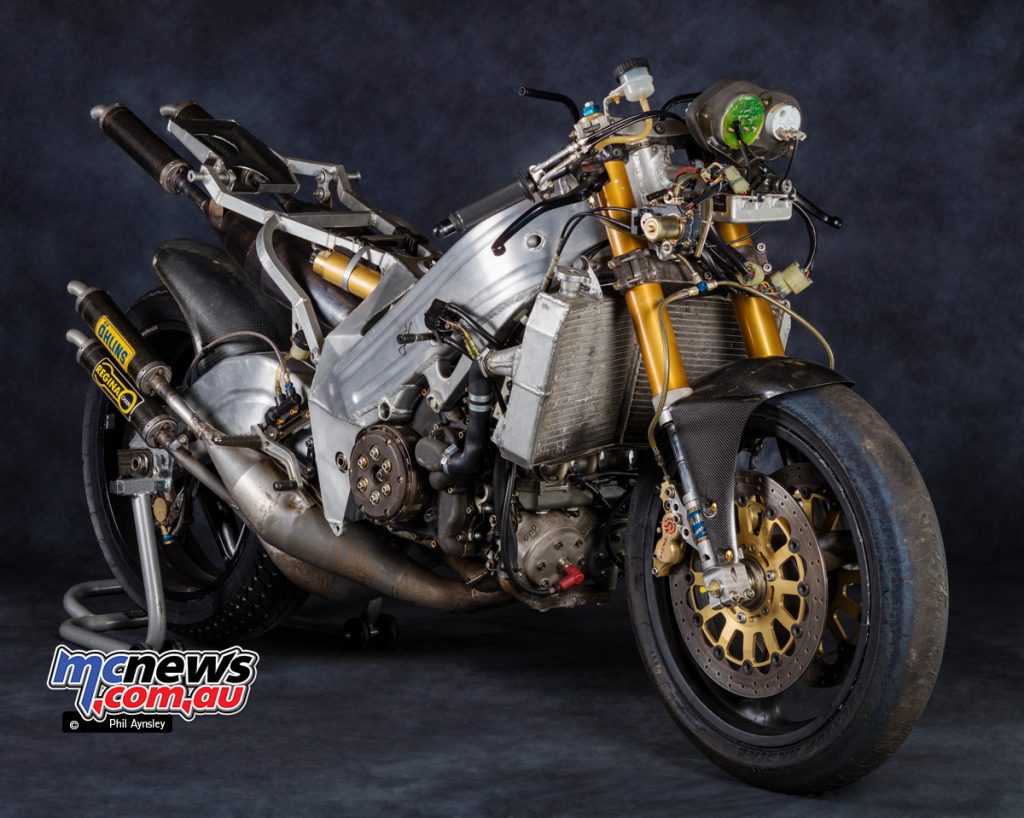

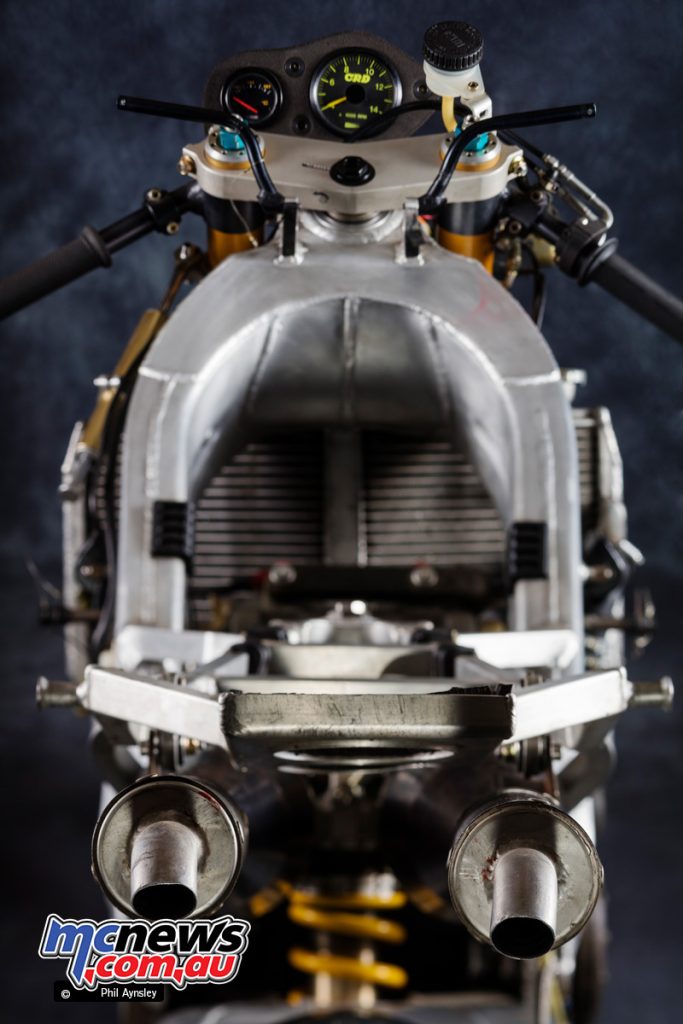

| Frame | Aluminum beam, banana swingarm |

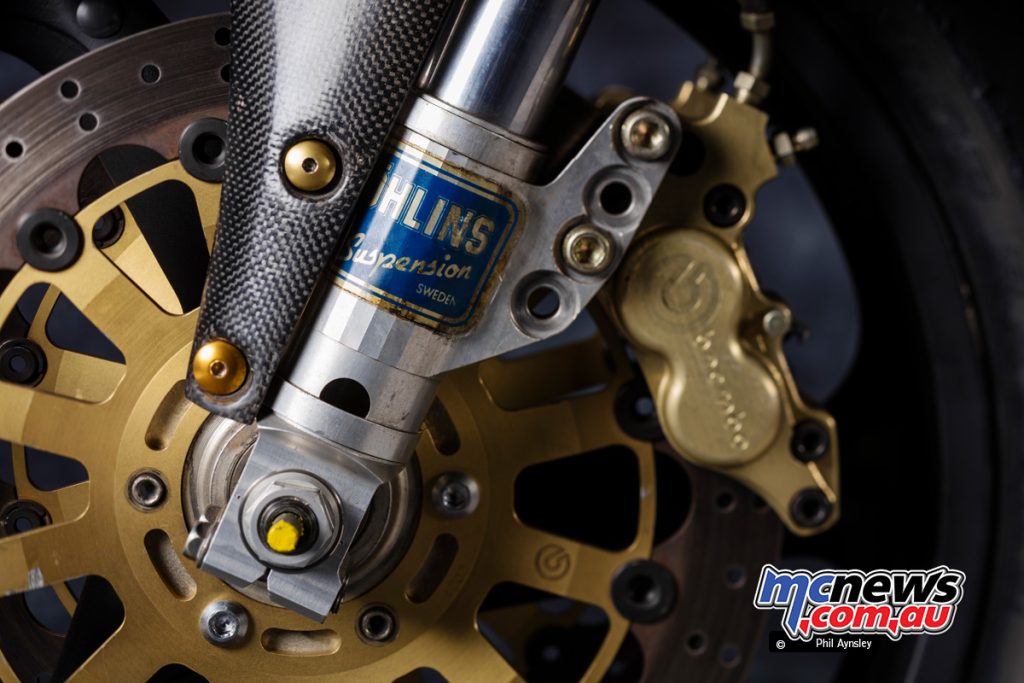

| Suspension | Fully adjustable Öhlins fork/shock |
| Wheels | Marchesini, 3.50 x 17, 6.00 x 18 |
| Brakes | Brembo |
| Wheelbase | 1400 mm |
| Length | 2015 mm |
| Width | 500 mm |
| Seat height | 800 mm |
| Weight | 122 kg (dry) |
