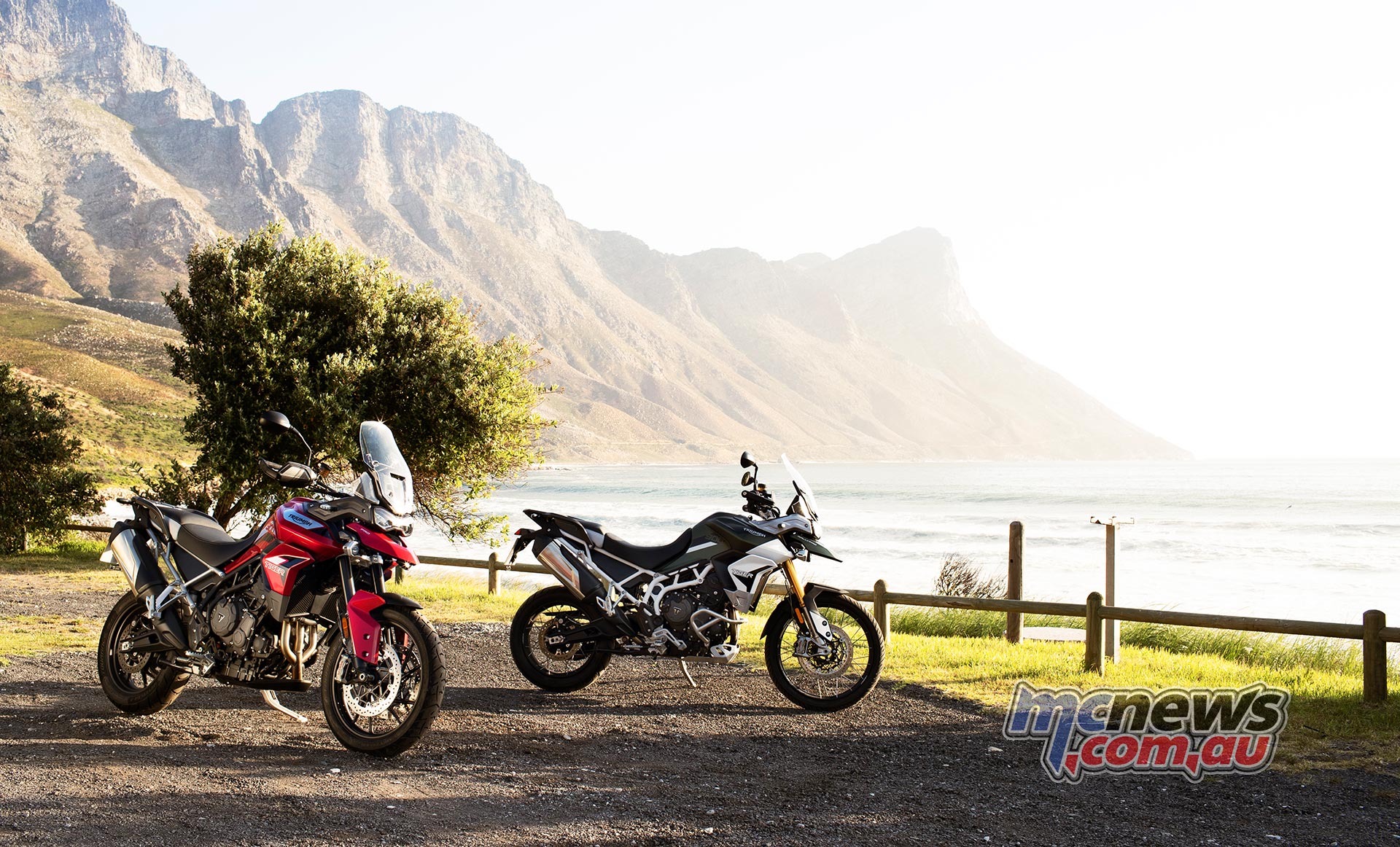

Triumph Tiger GT Action
2020 Triumph Tiger 900 GT

Huge news out of Triumph Motorcycles this morning with the 2020 Tiger 900 officially announced in five variants a standard Tiger 900, Tiger 900 Rally – with up-spec Rally Pro, plus a Tiger 900 GT – also with a GT Pro version available. The 2020 Tiger 900 is expected to arrive in Australia in March, with pricing yet to be announced.

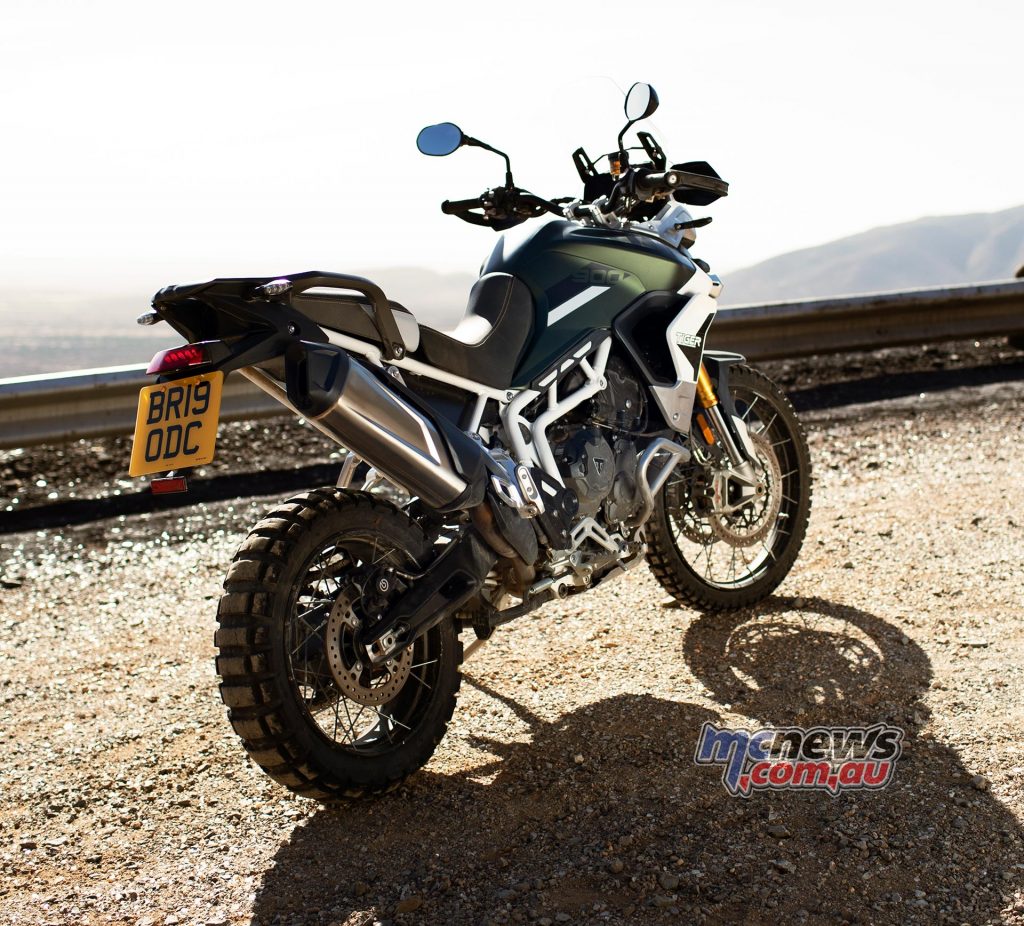

Triumph Tiger Rally

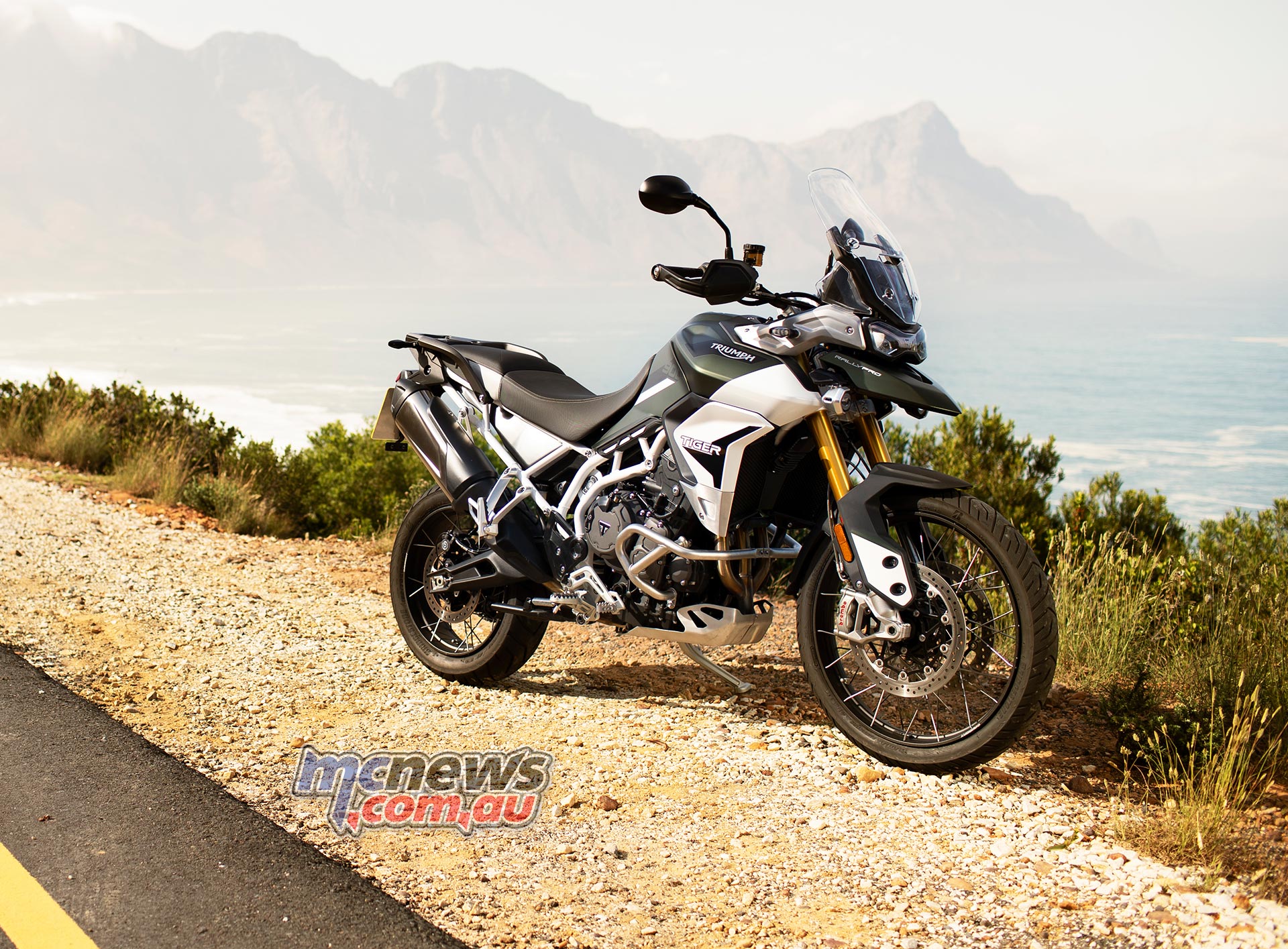

2020 Triumph Tiger 900 Rally

Featuring a new 900cc triple-cylinder powerplant the Tiger 900 boasts 10 per cent more torque than the 800, alongside a nine per cent power boost in the mid-range, while Triumph also introduce a new 1-3-2 firing order for a new character and better feel, which should be particularly noteworthy with a new exhaust soundtrack.

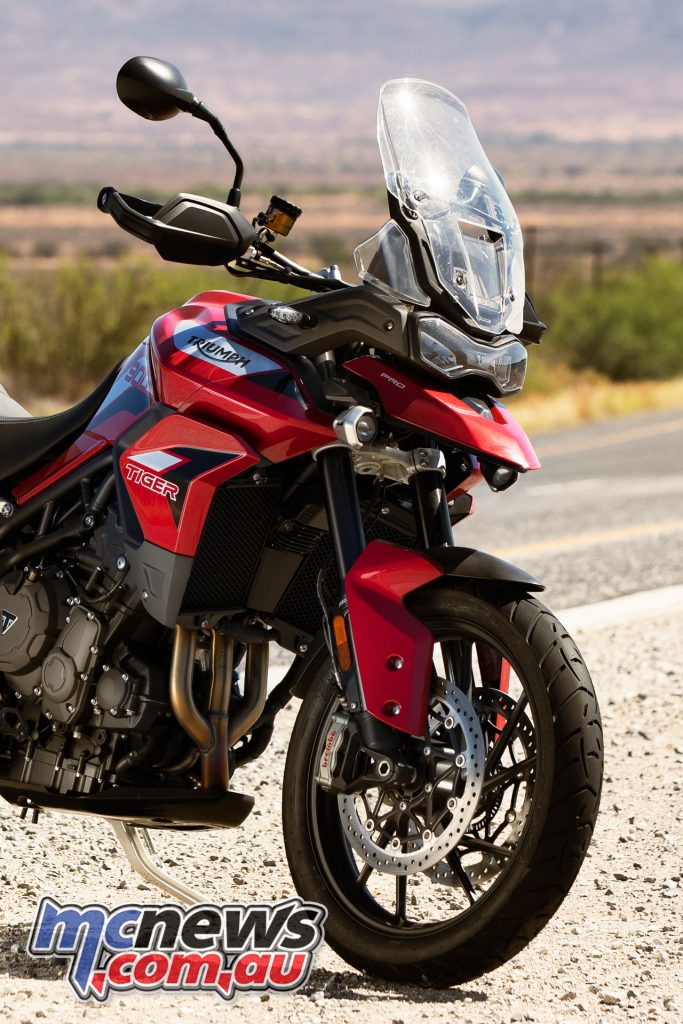

Triumph Tiger GT
2020 Triumph Tiger 900 GT – 888cc triple-cylinder

Other updates include a host of new chassis components, higher spec brakes, new LED lights, new bodywork and much more.

2020 Triumph Tiger 900 features

  • New 900cc triple engine
  • 10% more torque – 87 Nm at 7,250 rpm
  • More power – 9% more in the mid-range
  • New 1,3,2 firing order
  • New lightweight modular frame
  • Brembo Stylema monobloc brakes
  • New 20L tank
  • New 7” TFT instruments (GT/Rally)
  • Updated cornering ABS & traction control (GT/Rally)
  • New LED lighting & DRL
  • Updated styling & bodywork

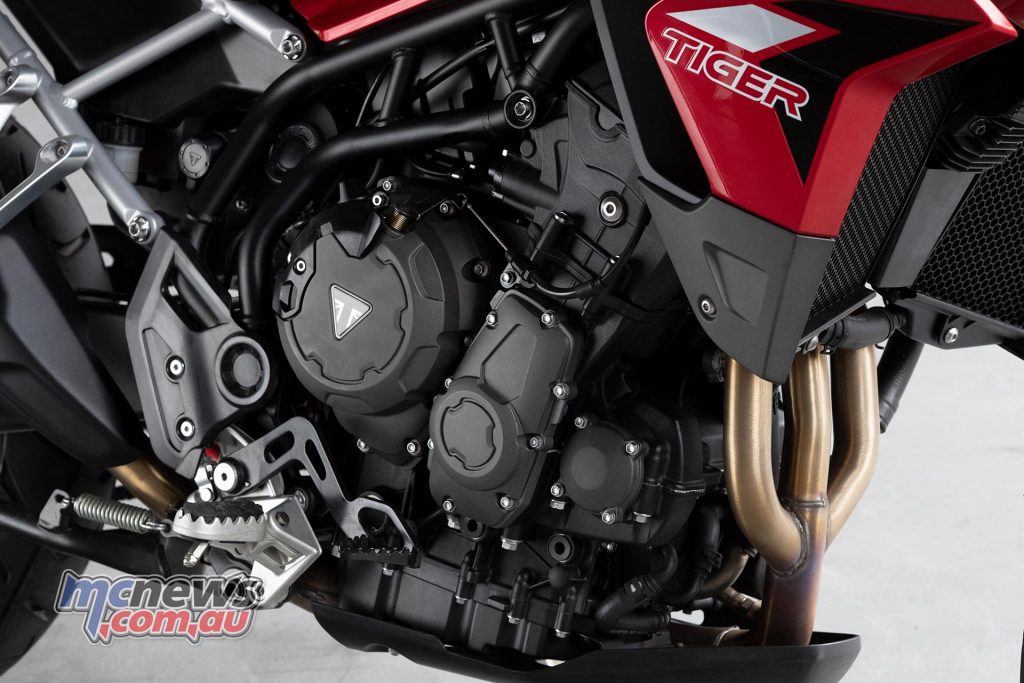

900cc Euro5 triple-cylinder

The new ‘900’ powerplant is an 888cc liquid-cooled 12-valve DOHC in-line three-cylinder, with a bore and stroke of 78 x 61.9mm, with compression run at 11.27:1. Triumph are promising an increase in peak torque by 10 per cent, alongside nine per cent more mid-range power, with a 1-3-2 firing order for a whole new engine character that according to Triumph boosts both tractability and throttle response.

Triumph Tiger Rally
Triumph are promising a new character from the 900 powerplant alongside better tractability

The boost in capacity comes via a 4 mm increase in bore which helps boost torque from 79 Nm to 87 Nm. Peak twist now arrives 800 rpm earlier at 7250 rpm while peak power remains unchanged at 94 horsepower, although Triumph have promised that 10 per cent mid-range boost.

Triumph Tiger GT
The new Tiger 900 features an 888cc in-line triple with 1-3-2 firing order

Triumph also promise more responsive acceleration, with faster with 0-60mph, 0-110mph and 6th gear roll on times, although they haven’t shared the exact improvement.

A new twin-radiator is also featured, allowing a reduced coolant volume with better cooling performance, particularly as felt by the rider, while allowing for a stylish radiator shroud setup that highlights the three-into-one header setup.

Triumph Tiger GT
A new dual-radiator setup has allowed for redesigned radiator cowls

Tiger 900 chassis

The 2020 Tiger 900 is also up to 5kg lighter than the outgoing model, depending which variant you choose, with a new modular steel trellis frame and bolt-on aluminium sub-frame.

Triumph Tiger Rally Pro chassis
The Tiger 900 features a new modular trellis steel frame

Suspension is offered by either Marzocchi on the Tiger 900 GT, or Showa on the Tiger 900 Rally, with the Marzocchi setup including a set of 45mm USD forks with compression and rebound damping. The standard GT features a rear shock with preload and rebound adjustment, with 170mm of travel.

Triumph Tiger GT
The Tiger 900 GT features shorter travel Marzocchi forks, but is a step up from the standard version’s non adjustable items

The GT Pro on the other hand features an electronically adjustable unit that also offers preload and rebound damping. The electronic rear shock will be controllable via a special menu on the TFT display, with nine levels of damping control and four preload settings.

A lower seat height version on the standard GT also looks like it’ll run a shock with a shorter 151mm travel.

Triumph Tiger GT

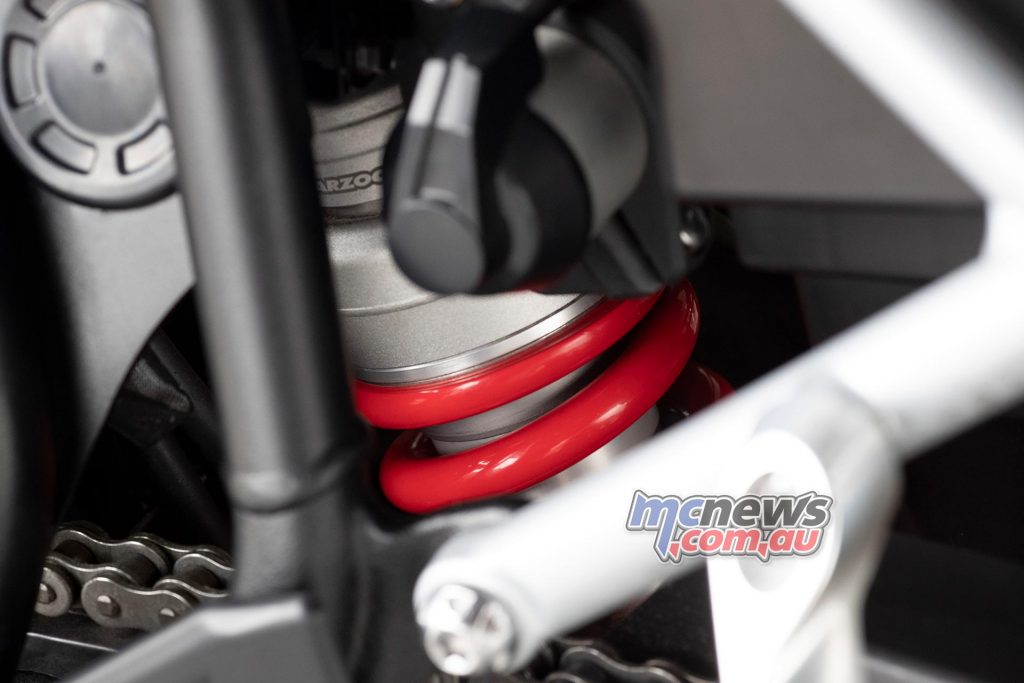

The 2020 Triumph Tiger 900 GT Pro features an electronically adjustable rear shock from Marzocchi

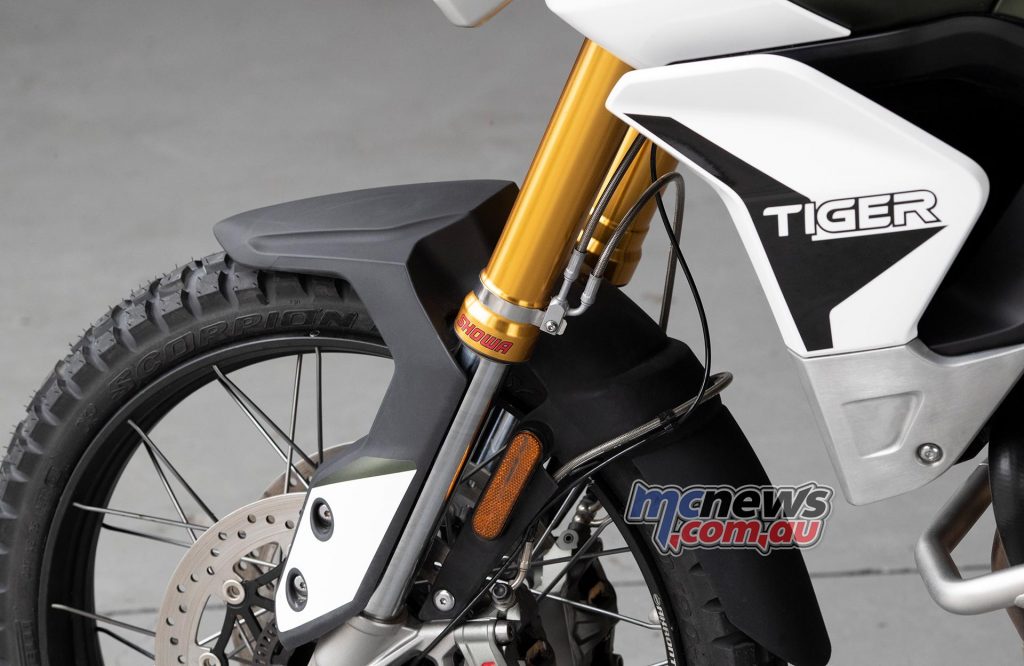

On the Tiger 900 Rally and Rally Pro a set of Showa 45mm USD forks offer preload, rebound and compression adjustment alongside a longer, more off-road orientated 240mm of travel and are matched to a Showa rear shock, featuring preload and rebound adjustability, with 230mm of travel.

This puts the Rally suspension in a similar category to the 790 Adventure R which boasts 245mm travel, while the new Tenere 700 offers 210/200mm but only offers a single model variant.

Triumph Tiger Rally
The Tiger 900 Rally and Rally Pro feature longer travel Showa suspension, with 240/230mm front/rear

A standard Tiger 900 model will also be offered, featuring non-adjustable Marzocchi 45mm forks and a Marzocchi rear shock with preload adjustment only.

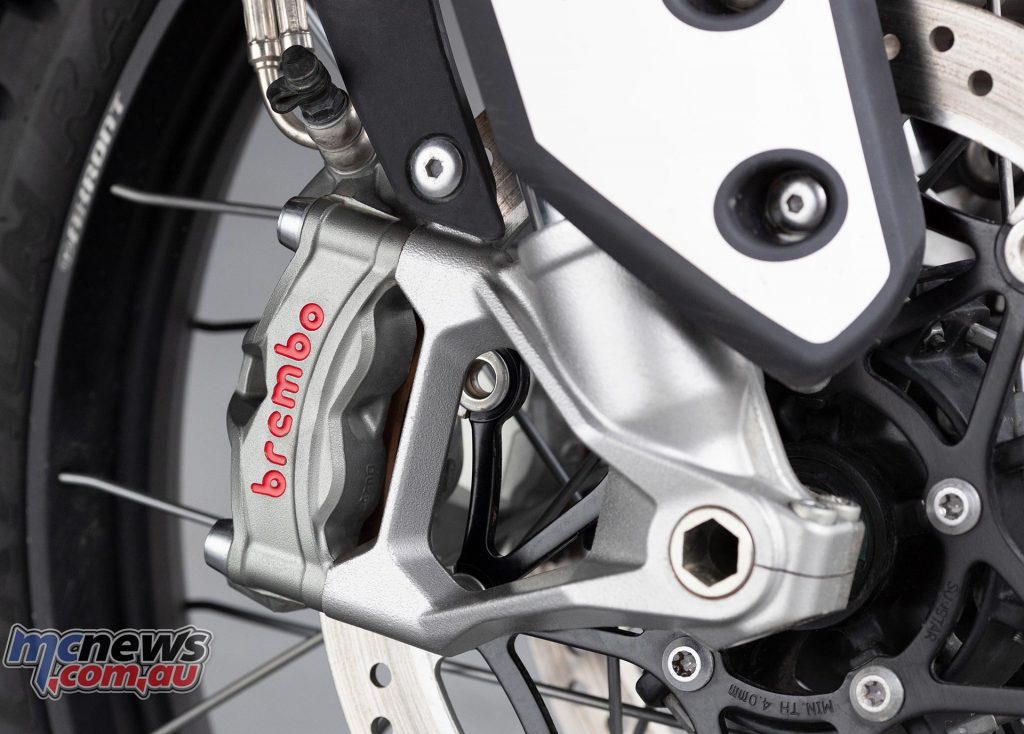

Brakes have also seen an update across all models, with the Tiger 900 boasting Brembo Stylema four-piston monobloc calipers and a radial master-cylinder. Rotors are 320mm items, while the standard Tiger 900 includes ABS, with updated cornering ABS found on the GT and Rally variants.

Triumph Tiger Rally
Stylema Brembo calipers are found across all Tiger 900 models, but the standard version only includes regular ABS

The new tubular steel frame with bolt-on sub-frame and cast aluminium swingarm help deliver great agility and capability, while ergonomics have also been optimised for touring and off-road riding, with a narrow seat, 10mm closer handlebars and more upright seating position.

Triumph Tiger GT
Footpeg placement on each Tiger 900 model is optimised for their expected uses

Each model also features footpeg positions to match the intended riding type, alongside a height adjustable seat with the standard and GT models offering a 810 or 830mm range. The Rally in comparison runs a 850 or 870mm seat height due to the longer travel suspension.

Triumph Tiger GT

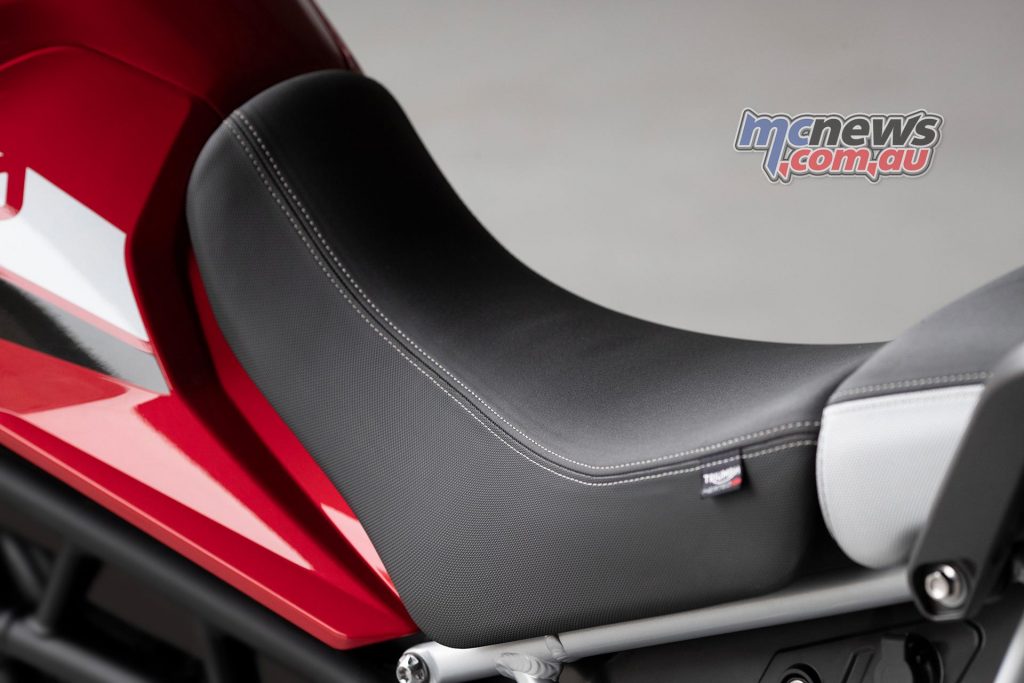

The Tiger 900 GT offers a 810 or 830mm seat height, while the Rally has a taller 850 or 870 height.

The standard Tiger 900 and GT models also run a rake of 24.6 degrees with a trail of 133.3mm, while the Rally models feature a rake of 24.4 degrees and trail of 145.8mm. All models feature the slightly larger 20L fuel tank, with the Tiger 900 weighing in at 192kg dry, the GT at 194kg, GT Pro at 198kg, the Rally at 196kg and the Rally Pro at 201kg.

Triumph Tiger GT

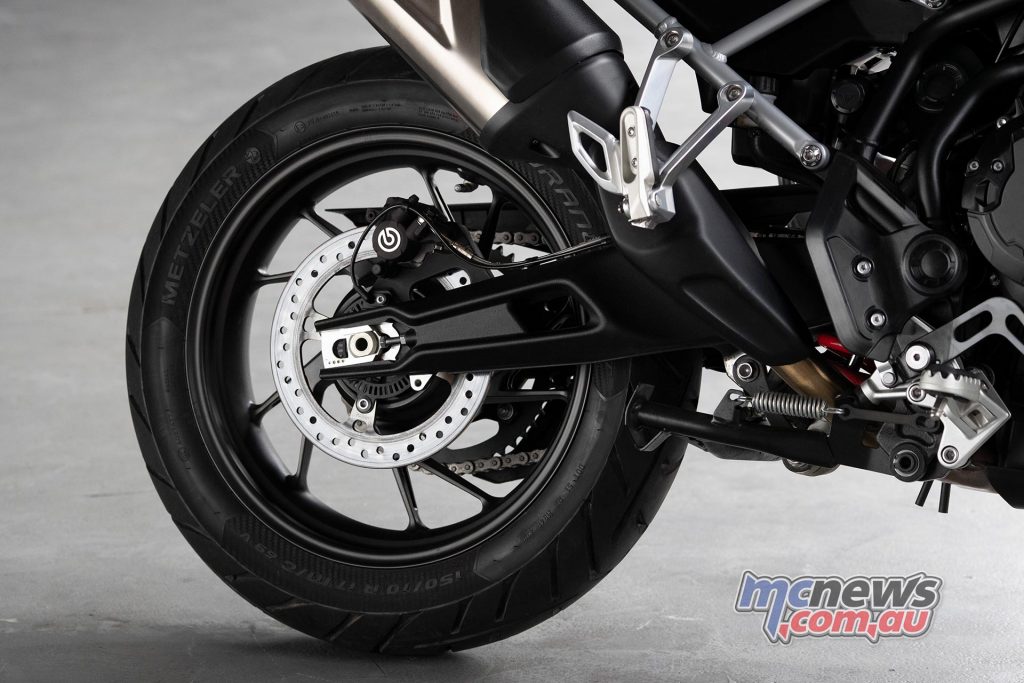

The 2020 Triumph Tiger 900 GT models feature cast alloy wheels, with a 19 inch front and 17 inch rear

The Tiger 900 and Tiger 900 GT variants will all come fitted with cast alloy wheels, with a 19 x 2.50 inch front and 17 x 4.25 inch rear, clad in 100/90 – 19 and 150/70 – 17 inch rubber.

The Tiger 900 Rally and Rally Pro will feature spoked tubeless rims with a 21 x 2.15 inch front and 17 x 4.25 inch rear. Tyres will be a 90/90 – 21 front and 150/70 – 17 inch rear.

Triumph Tiger Rally

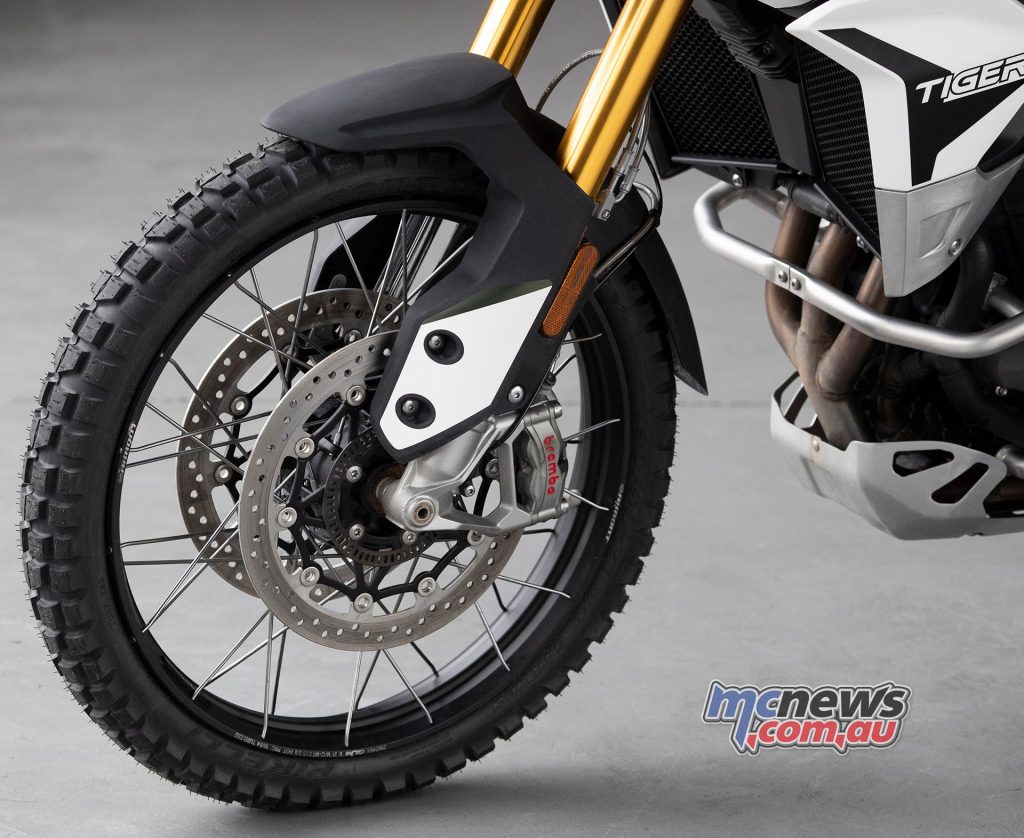

The Tiger 900 Rally variants feature spoked, tubeless rims, with knobby tyres

Tiger 900 Electronics & Rider Aides

The Tiger 900 GT and Rally variants all feature a new 7 inch TFT display compared to the standard models’ 5inch item, with the My Triumph connectivity system found standard on the up-spec GT Pro and Rally Pro models.

Triumph Tiger Rally

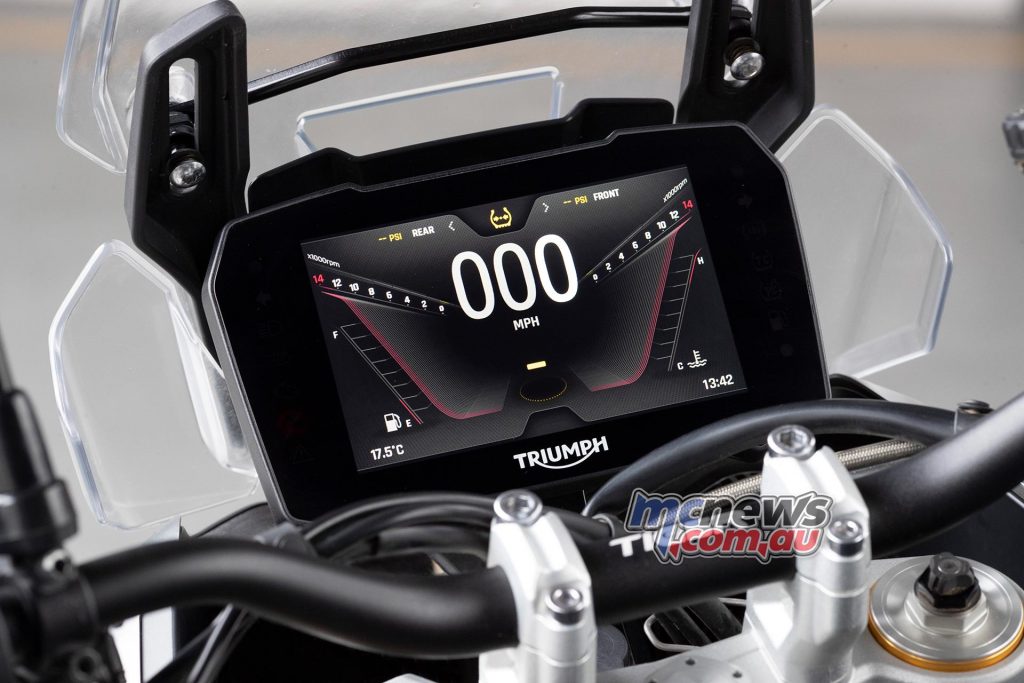

A new 7 inch TFT display is found on GT and Rally models

Both GT and Rally models also include an updated and optimised cornering ABS and cornering traction control system with a Continental IMU which measures roll, pitch, yaw and acceleration.

Up to six riding modes are on offer, although how many you’ll get access too depends on the model variant, with the standard Tiger 900 featuring just Rain and Road modes.

Triumph Tiger Rally
Ride modes start with just two on the standard Tiger 900, while the Rally Pro offers six

Both base Rally and GT models offer Rain, Road, Sport and Off-Road, while the GT Pro adds a rider configurable mode, and the Rally Pro does the same plus Off-Road Pro.

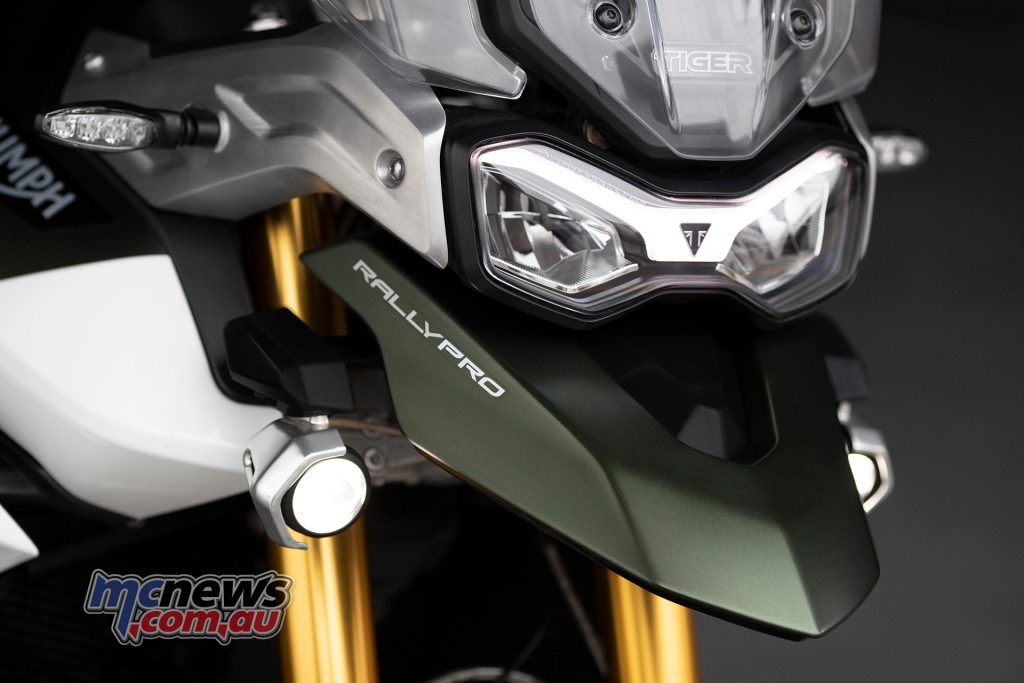

All Tiger 900s will also include new LED lighting and daytime running lights (DRL), with auxiliary fog lights standard fitment on the GT Pro and Rally Pro models.

Triumph Tiger Rally
New LED lights and DRL are featured with additional fog lights on the Pro models

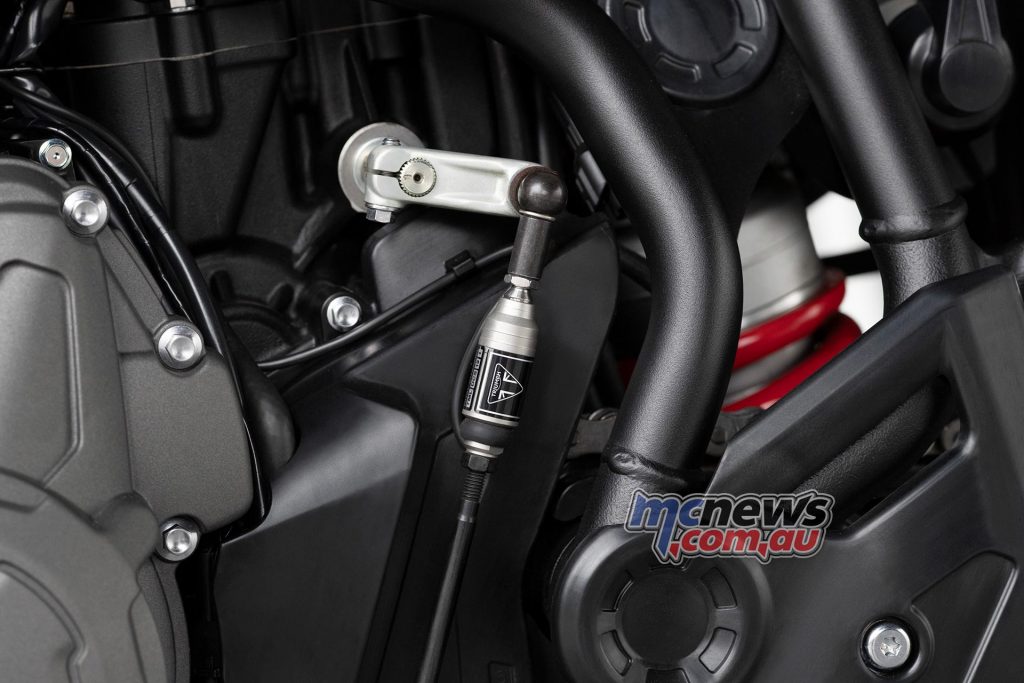

Triumph’s Shift Assist is also found on the Tiger 900 GT Pro and Rally Pro models, and is available as an accessory on all other Tiger 900 models.

Triumph Tiger GT
Both GT and Rally ‘Pro’ models include an up/down quickshifter

Other features include a secure department for a mobile phone, also allowing USB charging, on the GT and Rally models, situated under the seat, while the GT Pro and Rally Pro models include heated seats and a TPMS or Tyre Pressure Monitoring System as standard.

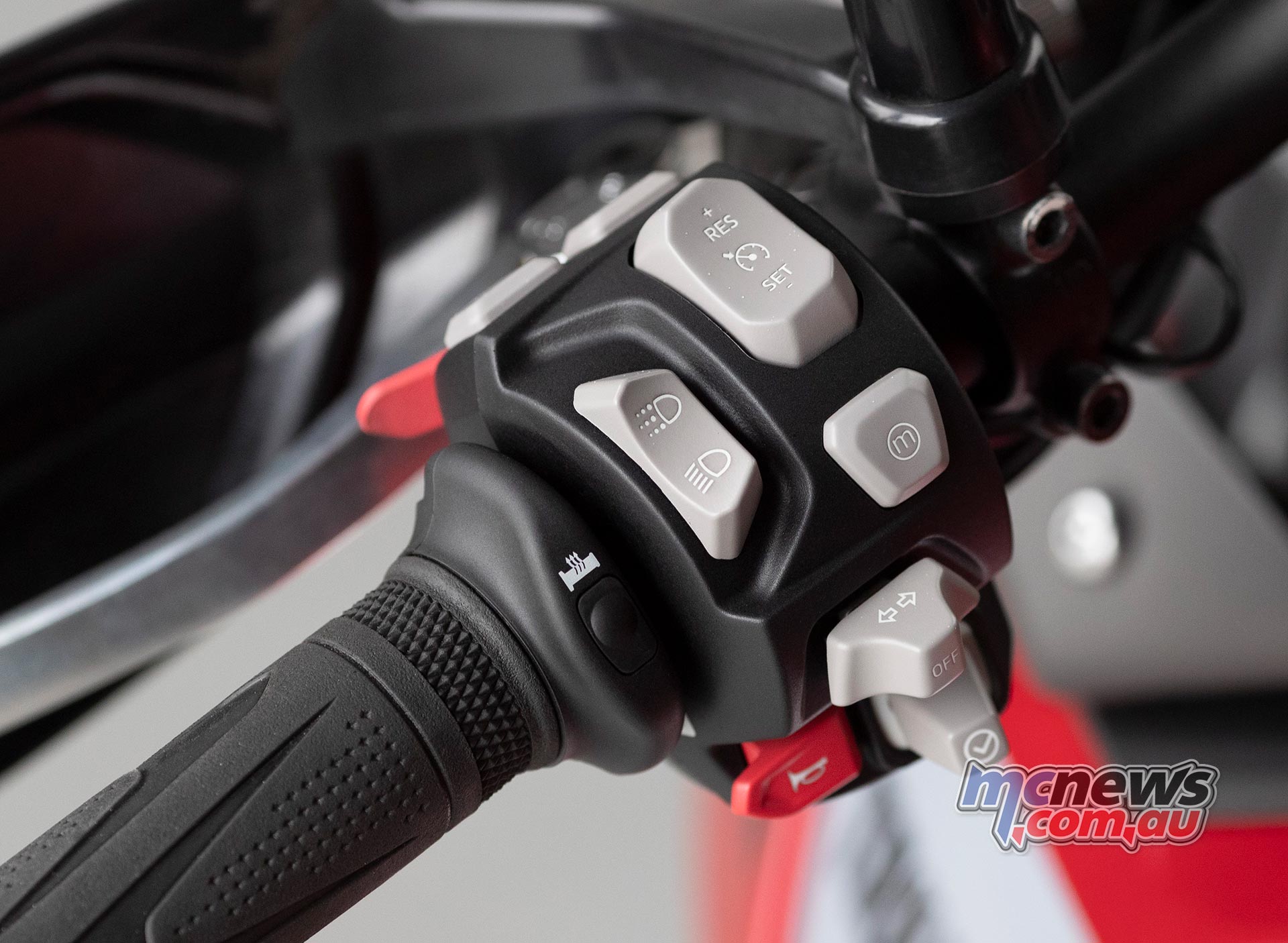

GT and Rally models also include a five-way joystick on the switchblock, with electronic cruise control and heated grips as standard.

Triumph Tiger GT
A five-way joystick allows easy control of the 7 inch TFT features on the GT and Rally

2020 Tiger 900 styling and colours

Triumph are showing off new styling for the Tiger 900, with more aggressive and cleaner bodywork, as well as the pronounced beak and smaller headlight setup.

The Tiger 900 will be available in Pure White, with the Tiger 900 Rally and Rally Pro to be available in Matt Khaki, Sapphire Black and Pure White, with a white frame.

Triumph Tiger Rally
2020 Triumph Tiger 900 Rally

The Tiger 900 GT and GT Pro will be available in Korosi Red, Sapphire Black and Pure White.

The Tiger 900 GT Low Ride Height, or LRH, offers a 760 to 780mm seat height care of a dedicated suspension setup and lower seat.

Triumph Tiger GT Action
2020 Triumph Tiger 900 GT

Triumph are also promising an accessory range of over 65 items, with a Trekker kit including Trekker panniers, top box and back rest, sliding carriage kit, tank pad and screen deflector.

An Expedition kit aimed at more off-road orientated riding includes Expedition panniers, 40 litre roll bag, headlight guard, fork protectors, aluminium radiator guard, upper engine bars and LED fog lights.

Triumph Tiger Rally
2020 Triumph Tiger 900 Rally

The 2020 Triumph Tiger 900 range are expected to be available in Australia in March, 2020, with pricing and further details yet to be announced.


2020 Triumph Tiger 900 Specifications

2020 Triumph Tiger 900 Rally Pro Specifications

Specifications
ENGINE
Engine Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity 888 cc
Bore Stroke 78 x 61.9 mm
Compression 11.27:1
Max Power 95.2 PS / 93.9 bhp (70 kW) @ 8,750 rpm
Max Torque 87 Nm @ 7,250 rpm
System Multipoint sequential electronic fuel injection
Exhaust Stainless steel 3 into 1 header system, side mounted stainless steel silencer
Final Drive O-ring chain Clutch Wet, multi-plate
Gearbox Six-speed
CHASSIS
Frame Tubular steel frame, bolt on sub frame
Swingarm Twin-sided, cast aluminium alloy
Front Wheel Spoked Tubeless, 21 x 2.15 in
Rear Wheel Spoked Tubeless, 17 x 4.25 in
Front Tyre 90/90-21
Rear Tyre 150/70R17
Front Suspension Showa 45mm upside down forks, manual preload, rebound damping and compression damping adjustment, 240mm travel
Rear Suspension Showa rear suspension unit, manual preload and rebound damping adjustment, 230mm wheel travel
Front Brake Twin 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder, Optimised Cornering ABS
Rear Brake Single 255mm disc.  Brembo single piston sliding caliper.  Optimised cornering ABS.
DIMENSIONS
Width Handlebars 935mm
Height (Excl. Mirrors) 1452-1502mm
Seat Height 850-870mm
Wheelbase 1551mm
Rake 24.4º
Trail 145.8mm
Dry Weight 201 kg
Tank Capacity 20 L
Fuel Consumption 5.2l/100 km (55.4 MPG)
CO2 Emissions EURO 5 Standard: 119 g/km

2020 Triumph Tiger 900 GT Pro Specifications

Specifications
ENGINE
Engine Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity 888 cc
Bore Stroke 78 x 61.9 mm
Compression 11.27:1
Max Power 95.2 PS / 93.9 bhp (70 kW) @ 8,750 rpm
Max Torque 87 Nm @ 7,250 rpm
System Multipoint sequential electronic fuel injection
Exhaust Stainless steel 3 into 1 header system, side mounted stainless steel silencer
Final Drive O-ring chain Clutch Wet, multi-plate
Gearbox Six-speed
CHASSIS
Frame Tubular steel frame, bolt on sub frame
Swingarm Twin-sided, cast aluminium alloy
Front Wheel Cast alloy, 19 x 2.5 in
Rear Wheel Cast alloy, 17 x 4.25 in
Front Tyre 100/90-19
Rear Tyre 150/70R17
Front Suspension Marzocchi 45mm upside down forks, manual rebound and compression damping adjustment, 180mm travel
Rear Suspension Marzocchi rear suspension unit, electronically adjustable preload and rebound damping, 170mm wheel travel
Front Brake Twin 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder, Optimised Cornering ABS
Rear Brake Single 255mm disc.  Brembo single piston sliding caliper.  Optimised cornering ABS.
DIMENSIONS
Width Handlebars 930mm
Height (Excl. Mirrors) 1410-1460mm
Seat Height 810-830mm
Wheelbase 1556mm
Rake 24.6º
Trail 133.3mm
Dry Weight 198 kg
Tank Capacity 20 L
Fuel Consumption 5.2l/100 km (55.4 MPG)
CO2 Emissions EURO 5 Standard: 119 g/km

2020 Triumph Tiger 900 Rally Specifications

Specifications
ENGINE
Engine Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity 888 cc
Bore Stroke 78 x 61.9 mm
Compression 11.27:1
Max Power 95.2 PS / 93.9 bhp (70 kW) @ 8,750 rpm
Max Torque 87 Nm @ 7,250 rpm
System Multipoint sequential electronic fuel injection
Exhaust Stainless steel 3 into 1 header system, side mounted stainless steel silencer
Final Drive O-ring chain Clutch Wet, multi-plate
Gearbox Six-speed
CHASSIS
Frame Tubular steel frame, bolt on sub frame
Swingarm Twin-sided, cast aluminium alloy
Front Wheel Spoked Tubeless, 21 x 2.15 in
Rear Wheel Spoked Tubeless, 17 x 4.25 in
Front Tyre 90/90-21
Rear Tyre 150/70R17
Front Suspension Showa 45mm upside down forks, manual preload, rebound damping and compression damping adjustment, 240mm travel
Rear Suspension Showa rear suspension unit, manual preload and rebound damping adjustment, 230mm wheel travel
Front Brake Twin 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder, Optimised Cornering ABS
Rear Brake Single 255mm disc.  Brembo single piston sliding caliper.  Optimised cornering ABS.
DIMENSIONS
Width Handlebars 935mm
Height (Excl. Mirrors) 1452-1502mm
Seat Height 850-870mm
Wheelbase 1551mm
Rake 24.4º
Trail 145.8mm
Dry Weight 196 kg
Tank Capacity 20 L
Fuel Consumption 5.2l/100 km (55.4 MPG)
CO2 Emissions EURO 5 Standard: 119 g/km

2020 Triumph Tiger 900 GT (LHR) Specifications

Specifications
ENGINE
Engine Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity 888 cc
Bore Stroke 78 x 61.9 mm
Compression 11.27:1
Max Power 95.2 PS / 93.9 bhp (70 kW) @ 8,750 rpm
Max Torque 87 Nm @ 7,250 rpm
System Multipoint sequential electronic fuel injection
Exhaust Stainless steel 3 into 1 header system, side mounted stainless steel silencer
Final Drive O-ring chain Clutch Wet, multi-plate
Gearbox Six-speed
CHASSIS
Frame Tubular steel frame, bolt on sub frame
Swingarm Twin-sided, cast aluminium alloy
Front Wheel Cast alloy, 19 x 2.5 in
Rear Wheel Cast alloy, 17 x 4.25 in
Front Tyre 100/90-19
Rear Tyre 150/70R17
Front Suspension Marzocchi 45mm upside down forks, manual rebound and compression damping adjustment, 180mm travel (140mm GT LRH)
Rear Suspension Marzocchi rear suspension unit, manual preload and rebound damping adjustment, 170mm wheel travel (151mm LRH)
Front Brake Twin 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder, Optimised Cornering ABS
Rear Brake Single 255mm disc.  Brembo single piston sliding caliper.  Optimised cornering ABS.
DIMENSIONS
Width Handlebars 930mm
Height (Excl. Mirrors) 1410-1460mm (1385-1435 mm LRH)
Seat Height 810-830mm (760-780mm LRH)
Wheelbase 1556mm (1545mm LRH)
Rake 24.6º (24.1 º LRH)
Trail 133.3mm (130.0mm LRH)
Dry Weight 194 kg (193 kg LRH)
Tank Capacity 20 L
Fuel Consumption 5.2l/100 km (55.4 MPG)
CO2 Emissions EURO 5 Standard: 119 g/km

2020 Triumph Tiger 900 Specifications

Specifications
ENGINE
Engine Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity 888 cc
Bore x Stroke 78 x 61.9 mm
Compression 11.27:1
Max Power 95.2 PS / 93.9 bhp (70 kW) @ 8,750 rpm
Max Torque 87 Nm @ 7,250 rpm
System Multipoint sequential electronic fuel injection
Exhaust Stainless steel 3 into 1 header system, side mounted stainless steel silencer
Final Drive O-ring chain Clutch Wet, multi-plate
Gearbox Six-speed
CHASSIS
Frame Tubular steel frame, bolt on sub frame
Swingarm Twin-sided, cast aluminium alloy
Front Wheel Cast alloy, 19 x 2.5 in
Rear Wheel Cast alloy, 17 x 4.25 in
Front Tyre 100/90-19
Rear Tyre 150/70R17
Front Suspension Marzocchi 45mm upside down forks, non-adjustable
Rear Suspension Marzocchi rear suspension unit, manual preload adjustment, 170mm rear wheel travel
Front Brake Twin 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder, ABS
Rear Brake Single 255mm disc. Brembo single piston sliding caliper, ABS
DIMENSIONS
Width 830mm
Height (Excl. Mirrors) 1410-1460mm
Seat Height 810-830mm
Wheelbase 1556mm
Rake 24.6º
Trail 133.3mm
Dry Weight 192 kg
Tank Capacity 20 L
Fuel Cons. 5.2l/100 km (55.4 MPG)
CO2 Em. EURO 5 Standard: 119 g/km

2020 Triumph Tiger 900 Rally & Rally Pro images

2020 Triumph Tiger 900 GT & GT Pro images

Triumph Rocket GT Triumph Tank Logo

Triumph tie-up with Bajaj India formalised for new mid-capacity motorcycles

Triumph  Bajaj Global Partnership Commences Triumph Motorcycles and Bajaj Auto India, the world's third largest motorcycle manufacturer, have today formally commenced their long term, non-equity...
Triumph Tiger Alpine Desert Duo

2020 Triumph Tiger 1200 Desert and Alpine Special Editions

2020 Triumph Tiger 1200 Desert and Alpine Special Editions If Triumph's new Tiger 1200 has already piqued your interest then these two special editions of...
Triumph Street Triple RS Trev Cover

2020 Triumph Street Triple 765 RS Review | Motorcycle Tests

2020 Triumph Street Triple RS Review Motorcycle Test by Trevor Hedge Images iKap / Triumph Only two years after the last significant update Triumph have come out...
Yamaha XSR XSRA RW AUS ACT

2020 Yamaha XSR900 arrives | $14,849 Ride-Away

2020 Yamaha XSR900 reaches Australian dealers Yamaha's popular sport-heritage XSR900 receives a new colour scheme for 2020, with a heritage inspired Dynamic White drawing inspiration...
Yamaha Tenere XT Trev

Yamaha Tenere 700 Review | Motorcycle Tests

  Yamaha Tenere 700 Review Motorcycle Test by Trevor Hedge - Images by iKap After one of the longest public gestation periods in motorcycling history, Yamaha’s eagerly...
Triumph Scrambler XC Escape Kit

2019 My Triumph Connectivity System arrives in dealers

2019 My Triumph Connectivity System & My Triumph app Triumph Motorcycles have announced the availability of the 2019 My Triumph Connectivity System, for the Scrambler 1200...
Triumph Speed Triple RS White

Triumph Speed Triple Recall Notice | MY 18-20

Motorcycle Recall Notice An official recall notice has been issued for Triumph Speed Triple S and Speed Triple R motorcycles sold in Australia over the...
Yamaha WRR DPBSE AUS STA Cover

2020 Yamaha WR250R pricing announced | Available now

2020 Yamaha WR250R Unchanged pricing at $9599 incl GST ride away Yamaha Motor Australia is excited to announce the release of the 2020 WR250R, available in...
YAM MW EU BNS STA Cover

2020 Yamaha Tricity 300 | 300cc three-wheel scooter

2020 Yamaha Tricity 300 Yamaha launched their Tricity 125 three-wheeler back in 2014, introducing the brand's first 'Leaning Multi-Wheel vehicle' and evolving into the more...
Yamaha YZF R

2020 Yamaha YZF-R1 and 2020 YZF-R1M here now

2020 Yamaha YZF-R1 and YZF-R1M Yamaha's 2020 YZF-R1 and YZF-R1M are now arriving on dealership floors across Australia.  YMA have confirmed pricing as $26,399 inc GST...
