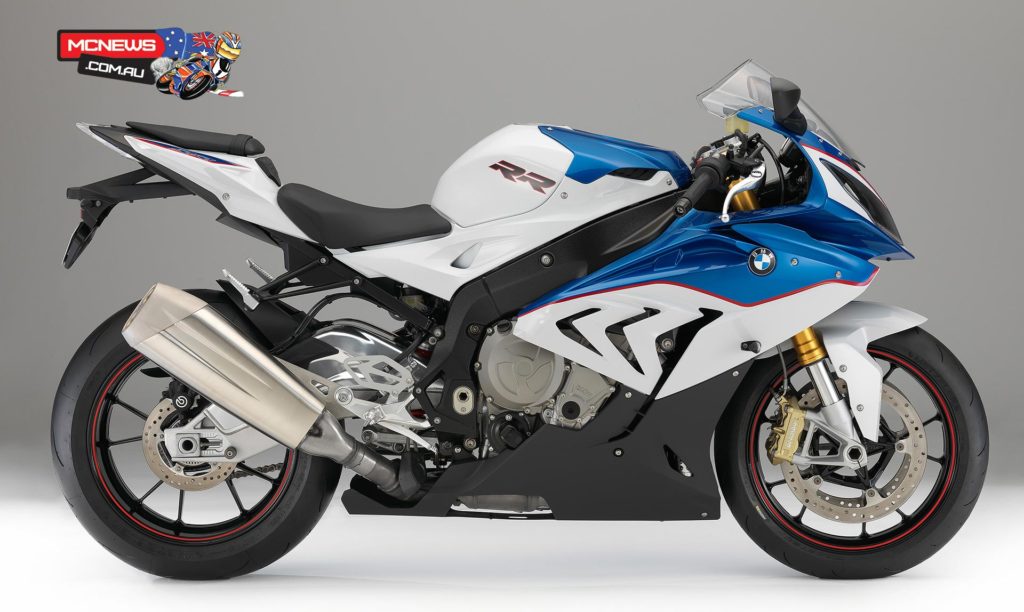

BMW S 1000 RR gets more power less weight for 2015 plus lots, lots more!
The new BMW S 1000 RR boasts a refined torque delivery and peak torque of 113 Nm (83 lb-ft), an increase in engine output of 4 kW (6 hp) to 146 kW (199 hp), plus a reduction in weight of 4 kg to 204 kg with a full tank of fuel and Race ABS (making allowances for equipment), the superbike that first debuted in 2009 is entering a new generation. Besides eliciting even sharper performance from the new S 1000 RR, particular attention was also paid to designing the bike to be even more rider-friendly. Whether it is used for everyday riding, flitting through bends on country roads or being put through its paces on the race track – the new S 1000 RR excels in every respect.
The enhanced performance of the new RR in terms of drive power can be attributed to the re-engineered cylinder head with new duct geometry, new intake camshaft and even lighter intake valves. Furthermore, an airbox with a modified capacity combines with an intake system with shorter intake lengths to make mixture preparation more effective than ever and give the new S 1000 RR added punch. A further key contributing factor to the improvement in power and torque characteristics is the new exhaust system, which now dispenses with a front silencer and weighs around 3 kg lighter. Rideability and response from standstill both benefit from an increase in torque upwards of approx. 5,000 rpm, a more linear torque curve, as well as a wide torque plateau that allows the rider to summon up almost maximum pulling power between 9,500 (112 Nm) and 12,000 rpm (113 Nm / 83 lb-ft).
Chassis-wise, the new RR has been honed with the introduction of a new, lighter frame structure offering an optimised blend of rigidity and flexibility. Together with the optimised chassis geometry featuring redefined values for the steering head angle, wheel castor, wheelbase and swingarm pivot point, it promises even better handling, increased traction and unequivocal feedback, particularly when riding at the limit. The tasks of wheel suspension and damping continue to be performed by fully adjustable spring elements, but with modified negative spring travel for more banking clearance and greater agility. As a factory-fitted option, the new S 1000 RR can also be specified with the new improved version of the electronically controlled Dynamic Damping Control (DDC) suspension – already familiar from the HP4 – that provides the basis for a chassis set-up with absolutely no compromises.
To enable optimum adaptation to the prevailing riding conditions, the new RR bike already comes with three riding modes as standard: “Rain”, “Sport” and “Race”. If the Pro riding mode option is selected, these can be supplemented by the two additional modes “Slick” and “User”. The Pro riding mode also features Launch Control for flawless racing starts as well as the programmable pit-lane speed limiter for sticking exactly to the pit-lane speed limit. When this feature is activated, it has the additional effect of producing the impressive soundtrack familiar from the world of motorcycle racing. The HP Gear Shift Assist Pro, enables lightning-fast clutchless upshifting and downshifting.
The new RR already leaves the factory with Race ABS (semi-integral) as well as Automatic Stability Control (ASC) included as standard. In conjunction with the Pro riding mode feature, the Australian standard specification includes Dynamic Traction Control (DTC) with banking sensor and precision calibration. All control systems have been retuned and further improved in terms of their control precision and characteristics.
First ever superbike with cruise control, Innovative instrument cluster design, new electrical system and lighter battery. NB: Cruise Control is standard for Australian specification.
The new S 1000 RR furthermore features a new electrical system and a more powerful sensor box, along with a smaller battery weighing around 1 kg less.
Last, but by no means least, there is the completely restyled bodywork that speaks an even more dynamic design language. The principle of the asymmetric headlight arrangement on the outgoing model has been retained as a characteristic distinguishing feature, yet the headlights have been repositioned and restyled to ensure that the new RR is recognisable as “new” at first glance. The dynamic design with its sporty, aggressive feel is given further impact by colour schemes with three very individual characters: Racing Red / Light White, Black Storm metallic and the BMW Motorsport colours.
Highlights of the new BMW S 1000 RR:
- Increased power output and torque: 146 kW (199 hp) at 13,500 rpm and 113 Nm (83 lb-ft) at 10,500 rpm.
- Even better rideability thanks to increased torque from approx. 5,000 rpm upwards as well as a more linear curve. A broad plateau of peak torque available in the rev range from around 9,500 up to 12,000 rpm.
- Re-engineered cylinder head with new duct geometry, new intake camshaft and even lighter intake valves.
- New intake system with shorter intake lengths, larger airbox and full E‑gas ride-by-wire.
- Reduction in weight of 4 kilograms to 204 kg with a full tank of fuel (making allowances for equipment).
- New exhaust system weighing around 3 kilograms lighter without a front silencer.
- Riding modes “Rain”, “Sport” and “Race” as standard plus Pro riding mode with two additional modes, “Slick” and “User” (configurable), for optimum adaptation to riding conditions. NB: Pro riding mode is standard for Australian specification.
- Launch Control for flawless starts as part of the Pro riding mode feature.
- Pit-lane speed limiter for maintaining an exact speed in the pit lane as part of the Pro riding mode feature.
- New, lighter frame structure with an optimised blend of rigidity and flexibility for more traction, greater precision and clear feedback.
- Refined chassis geometry for even better handling, increased traction and unequivocal feedback at the limits of performance.
- Fully adjustable spring elements with optimised negative spring travel for more banking clearance and greater agility.
- Further improved version of electronic Dynamic Damping Control (DDC), familiar from the HP4, as an ex-works option.
- Race ABS with optimised set-up.
- DTC traction control with precision calibration in 7 +/- steps.
- HP Gear Shift Assist Pro for fast clutchless upshifting and downshifting NB: HP Gear Shift Assist Pro is standard for Australian specification.
- New electrical system with a more powerful sensor box and lighter battery.
- Electronic speed control. NB: Cruise Control is standard for Australian specification.More sophisticated instrument cluster with extended array of functions and wide variety of information.
- Completely restyled bodywork for an even more dynamic design language.
- Innovative colour schemes with three individual characters:
- Racing Red / Light White, Black Storm metallic and BMW Motorsport.
- Extended range of optional extras and special accessories available ex-works.
Australian Standard Specification
- Race ABS
- Ride Modes
- HP Gear Shift Assist Pro
- Pin stripe wheels (non-HP forged wheels only)
- Race package (not standard in all markets) :
– DTC (Dynamic Traction Control)
– Ride Mode Pro
– Cruise Control
- Optional Equipment
Dynamic Package :
– DDC (Dynamic Damping Control)
– Heated Grips
– LED Indicator
- HP forged wheels
- Pillion Seat Cover
The new S 1000 RR is expected to arrive on Australian shores in Quarter 1, 2015. Pricing will be announced closer to this date.
Full Pictorial Gallery of Images featuring the 2015 BMW S 1000 RR
BMW S 1000 RR 2015 Specifications
- Displacement cc 999
- Bore/stroke mm 80/49.7
- Output kW/hp 146/199 at rpm 13 500
- Torque Nm 113 at rpm 10,500
- Type water-cooled in-line four-cylinder engine
- Compression/fuel 13.0: 1/at least premium unleaded (95 RON)
- Valve actuation DOHC (double overhead camshaft),
- valve actuation via single rocker arms
- Valves per cylinder 4
- Ø Intake/outlet mm 33.5/27.2
- Ø Throttle valve mm 48
- Engine management BMS-X
- Emission control closed-loop 3-way catalytic converter
- Alternator W 350
- Battery V/Ah 12/7, maintenance-free
- Headlight W low beam H7 12 V 55 W
- high beam H7 12 V 55 W
- Starter kW 0.8
- Clutch multi-disc anti-hopping oil-bath clutch, mechanically operated
- Gearbox constant mesh 6-speed gearbox
- Final drive chain
- Frame construction type aluminium bridge frame, engine self-supporting
- Suspension, front upside-down telescopic fork, stanchion diameter 46 mm, spring pre-load, adjustable for bump and rebound SA DDC: electronically adjustable damping
- Suspension, rear aluminium double-strut swingarm with central spring strut, spring pre-load, adjustable for bump and rebound SA DDC: electronically adjustable damping
- Spring travel, front/rear mm 120/120
- Wheel castor mm 96.5
- Wheelbase mm 1425
- Steering head angle ° 66.5
- Brakes front floating twin-disc brakes, Ø 320 mm, radial four-piston fixed callipers
- rear single-disc brake, Ø 220 mm, single-piston floating calliper
- ABS BMW Motorrad Race ABS (part-integral, can be switched off)
- Traction control standard: BMW Motorrad DTC
- Cast aluminium wheels , front 3.50 x 17″, rear 6.00 x 17″
- Tyres front 120/70 ZR17, rear 190/55 ZR17
- Total length mm 2050
- Total width with mirrors mm 826
- Seat height mm 815
- DIN unladen weight, road ready, full tank is 204kg
- Permitted total weight kg 407
- Fuel tank capacity ltr 17.5
