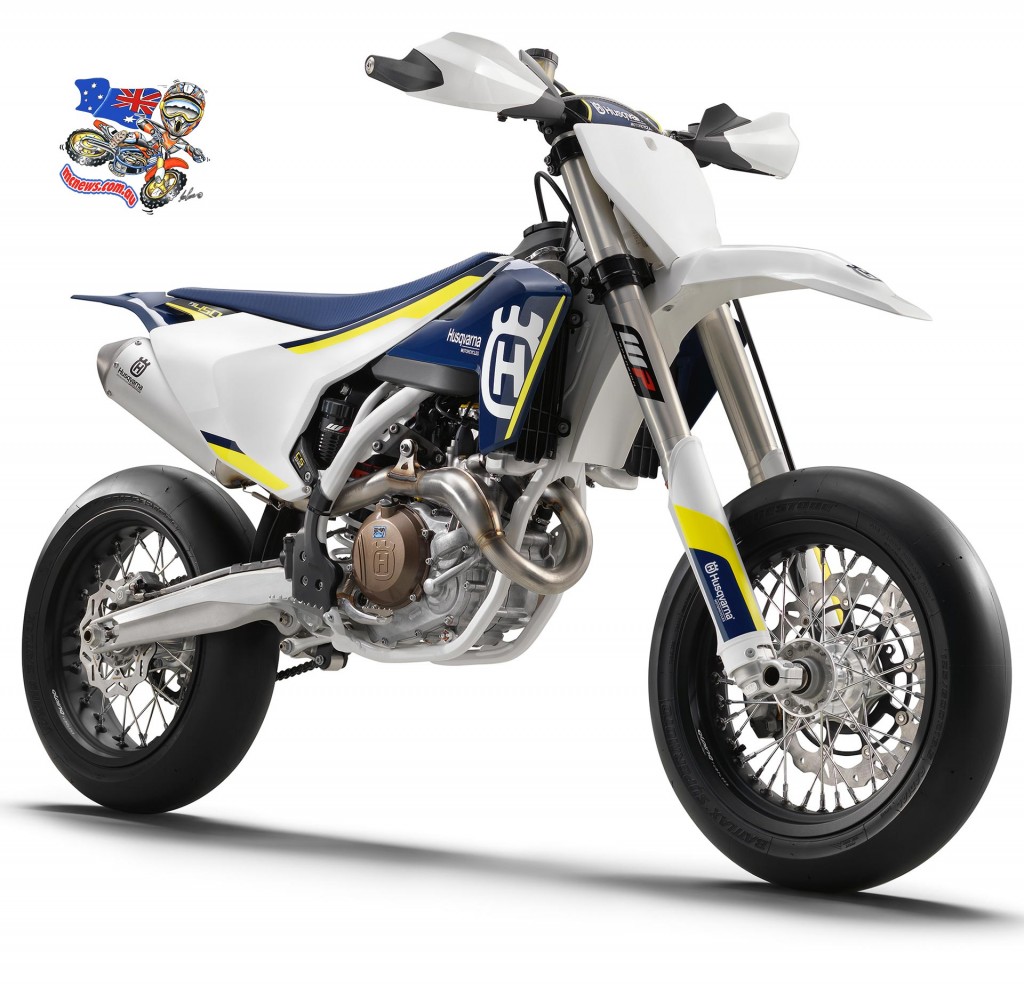

Husqvarna Motorcycles, the brand with a rich and distinguished tradition of producing excellence in motorcycles, is pleased to introduce the newly released 2016 model FS 450. On dealer floors by the end of September, this completely revamped supermoto bike has features that represent the most advanced Husqvarna technologies.
The FS 450 is a machine in the real Swedish tradition and the distinctive and futuristic bodywork highlights a massive leap forward in performance.
The company’s research and development engineers have designed a new chromium molybdenum steel frame that redefines the bike’s structural aspect and is in complete harmony with the new engine stays. The result is improved handling precision, while at the same time delivering an excellent feeling to the rider. This new design, high quality materials and high-tech production processes by WP Performance Systems result in a weight saving of 380 g when compared to the 2015 FS 450.
At the same time the new subframe is made of a composite material that is 30% carbon fibre and features a three-piece construction, which is 1 kg lighter than its equivalent in the previous model. Weighing only 1.4 kg, it is shorter and more compact for greatly improved ergonomics.
The new cast aluminium swingarm has been redesigned for optimal stiffness to improve traction and feeling. It is also 250 g lighter while maintaining its structural integrity and reliability.
The 63 horsepower single-overhead-cam 450 cc engine, the most powerful Husqvarna 450 cc supermoto engine yet developed, is smaller, lighter and reconfigured for optimal mass-centralisation within the new chromoly steel frame. In short, it represents the perfect complement to the new generation chassis.
The new engine is now 23 mm shorter, 23 mm narrower and 9 mm lower. Every internal component has been revised and repositioned to reduce the weight by 1.8 kg for an overall weight of 27.8 kg.
The SOHC cylinder head has also been redesigned to be 350 g lighter and features optimised combustion chamber and ports. The crankshaft has 10% more inertia and has been repositioned 9 mm backwards and 7 mm higher. The new crankcases are now significantly more compact and lighter.
The FS 450 has a lighter and more compact 5-speed gearbox that is 8 mm narrower and 350 g lighter than the previous generation. The APTC (Adler Power Torque Clutch) slipper clutch prevents rear wheel instability and hopping when braking hard going into the apex of a turn. This allows for maximum control and perfect Supermoto-style drifting. The Magura hydraulic system guarantees perfect clutch modulation.
Meanwhile the new Keihin Engine Management System (EMS) is smaller, lighter and faster at processing data for more efficient engine management. The FS 450 also features a standard handlebar map switch, which also activates launch control, a function that limits the amount of power to the rear wheel for approximately two seconds. This results in improved traction and the prevention of loss of control under hard acceleration.
The repositioning of the injector on the new 44 mm throttle body optimises flow into the combustion chamber. The overall weight is reduced by 100 g through eliminating the throttle linkage and directly mounting the throttle cables. At the same time, the throttle body provides more immediate throttle response and feeling.
The exhaust system is redesigned to improve mass-centralisation and reduce noise. The resonance chamber on the 450 cc SOHC engine is also integrated into the header pipe to resemble a 2-stroke expansion chamber. The silencer is also shorter than on the MY15 FS 450.
The FS 450 Supermoto is equipped with superior Brembo brakes, featuring a 4-piston radially mounted caliper and pump combined with a 310 mm front disk. A single piston caliper and a 220mm disc are fitted to the rear.
Lightweight and strong black 16.5”/17” Alpina spoke wheels are fitted both front and rear together with Bridgestone 125/80 R420 and 165/65 R420 slick tyres for maximum grip, traction and agility.
Thanks to the accurate and consistent damping characteristics of the closed cartridge technology and 280 mm suspension travel, the quality WP Suspension comprising a 48mm closed cartridge front fork and CNC machined black triple clamps, ensure exceptional handling and feel of the front end. The precisely engineered flex is designed to deliver comprehensive feedback and evenly distribute the clamping force on the fork leg to maximise the contact area for optimal sensitivity and minimum friction.
The high performance WP rear shock has been specifically designed for Supermoto and features 266 mm or rear travel. It features fully adjustable rebound and high/low speed compression, guaranteeing excellent stability and world-class damping.
The airbox is also redesigned and comes with a new inlet duct that reduces deformation, ensuring maximum airflow and filter protection. The air filter can be accessed without tools by simply removing the left side panel.
The new FS 450 Supermoto, which is presented in striking new graphics, is now set to deliver a thrilling, intuitive and confidence-inspiring riding experience.
The highlights summary of this exciting model include
• Chromoly frame design, optimised for light weight and optimal torsional rigidity
• Innovative, lightweight carbon composite rear subframe for optimal stiffness and design
• Lightweight cast aluminium swingarm for complete control and stability
• High quality closed cartridge WP fork and CNC machined triple clamps
• Brand new 63 hp SOHC engine, 1.8 kg lighter and now 23 mm shorter, 23 mm narrower and 9 mm lower than the previous generation
• New 5-speed gearbox 8 mm narrower and 350 g lighter
• High tech EFI system and reliable electric start
• Lightweight Li-Ion battery
• APTC clutch for maximum control under hard braking
• Premium quality Alpina Tubeless spoked wheels
• Bridgestone slick tyres for amazing performance and optimal handling
• Radial Brembo brake caliper for maximum stopping power
• New bodywork with carefully designed and engineered ergonomics to fit riders of all sizes
• Standard map switch and launch control
• New colours and seat cover incorporating traditional Husqvarna style
2016 Husqvarna FS450 Specifications
Engine type – Single cylinder, 4-stroke
Displacement – 449.9 cc
Bore/stroke – 95/63.4 mm
Compression ratio – 12.75:1
Starter/battery – Electric starter / Lithium Ion 12V 2.2Ah
Transmission – 5 gears
Fuel system – Keihin EFI, throttle body 44 mm
4 V / SOHC with rocker levers
Pressure lubrication with 2 oil pumps
Gear ratios – 16:32 18:30 20:28 22:26 24:24 –
Primary ratio – 31:76
Final drive – 14:45
Wet multi-disc APTC clutch, Magura hydraulics
Frame – Central double-cradle-type 25CrMo4 steel
Subframe – Carbon fibre reinforced polyamide
Handlebar – Pro Taper, Aluminium Ø 28/22 mm
Front suspension – WP USD CC, Ø 48 mm
Rear suspension – WP Monoshock with linkage
Suspension travel front/rear – 280/266 mm
Front/rear brakes – Disc brake Ø 310/220 mm
Front/rear rims – 3.50 x 16.5″ Alpina black, aluminium/ 5.00 x 17″ Alpina black, aluminium
Front/rear tyres – 125/80-16.5″; 165/65-17″
Chain – 5/8 x 1/4″
Steering head angle – 63.9°
Triple clamp offset – 22 mm
Wheel base – 1,475 ± 10 mm
Ground clearance – 290 mm
Seat height – 890 mm
Tank capacity, approx. – 7 l
Weight, without fuel, approx. – 105.3 kg
* Please contact the local Husqvarna Motorcycles Subsidiary or Importer for retail price information
