2020 Triumph Street Triple RS

Triumph Street Triple RS
2020 Triumph Street Triple RS alongside Triumph’s Moto2 machine

It was only a couple of years ago, 2017 in fact, that the Street Triple RS got its big boost from 675 to 765cc in capacity. Now for 2020 that 765 cc engine has undergone quite a major revamp and now boasts a lot more performance than before.

Triumph Street Triple RS
2020 Triumph Street Triple RS

How big an improvement? How about a massive 9 per cent boost in horsepower and a 9 per cent improvement in mid-range torque! That’s pretty damn impressive and sees the 2020 Street Triple RS generating 121 horsepower at 11,750 tpm and 79 Nm of torque peaking at 9350 rpm.

Triumph Street Triple RS
2020 Triumph Street Triple RS

Engine inertia has also been reduced by 7 per cent due to improved manufacturing tolerances.

Triumph Street Triple RS
2020 Triumph Street Triple RS

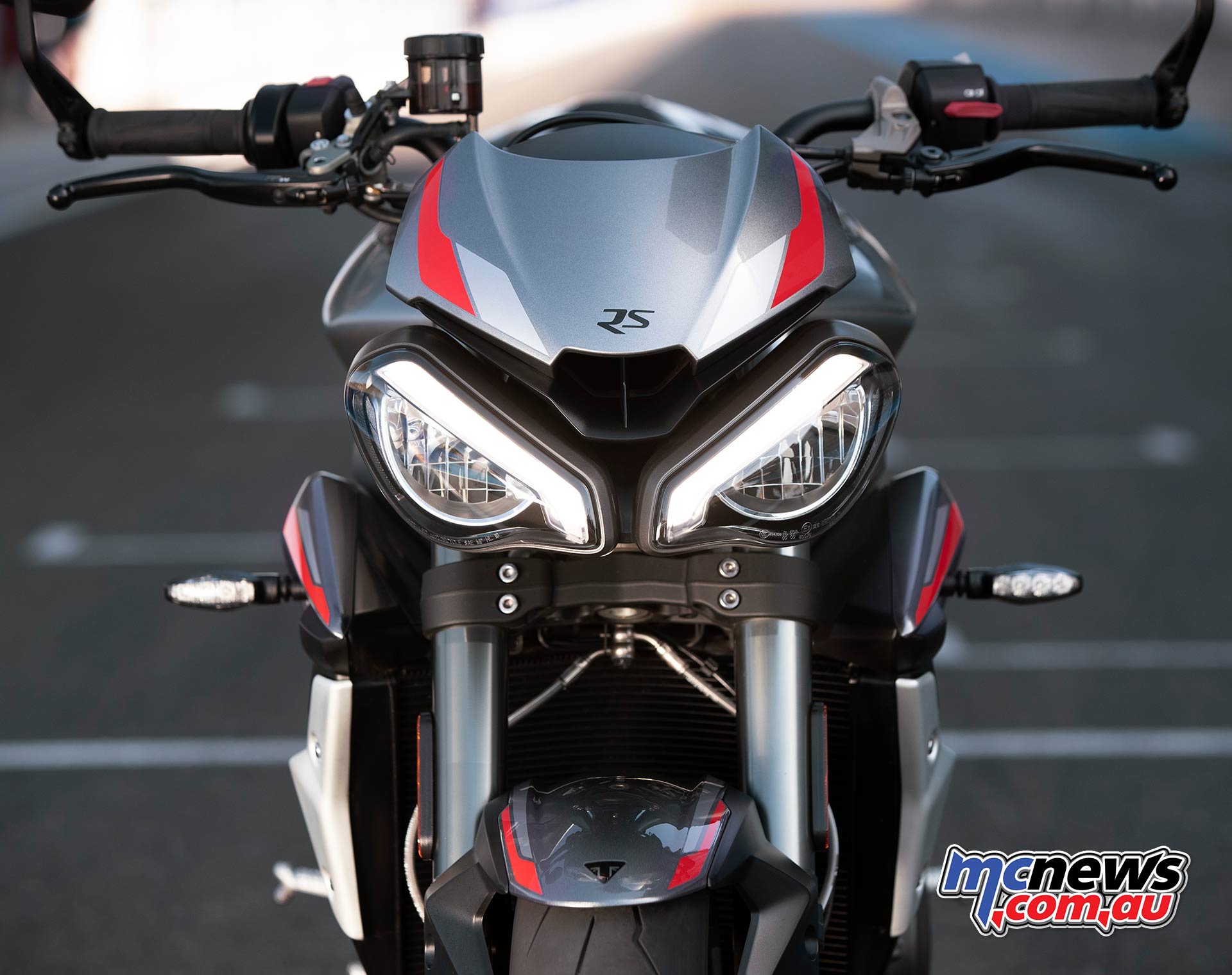

New LED headlights and daytime running lights sharpen the front end look and combine with a more angular silhouette all round.

Triumph Street Triple RS
2020 Triumph Street Triple RS

Instrumentation has gone full TFT and is available with GoPro and Bluetooth functionality to provide turn-by-turn navigation cues on the display.

Triumph Street Triple RS
2020 Triumph Street Triple RS

An up-down quick-shifter continues the up-spec theme along with five riding modes, Brembo M50 four-piston radial stoppers and Ohlins hardware suspending both ends of the 166 kilogram machine.

Triumph Street Triple RS
2020 Triumph Street Triple RS

I’ve always enjoyed the playful Street Triple more than the big-bore Speed Triple, and with this new bike I reckon that trend looks to continue.

Triumph Street Triple RS
2020 Triumph Street Triple RS

Pricing has not yet been revealed by Triumph Australia but they do expect Australian stocks to land by December, 2019.

Triumph Street Triple RS
2020 Triumph Street Triple RS

2020 Triumph Street Triple RS and S
Technical Specifications



Street Triple RS
Specifications
Engine TypeLiquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity765 cc
Bore Stroke77.99 mm / 53.4 mm
Compression12.54:1
Max Power123 PS  / 121.36 BHP (90.5 kW) @11750 rpm
Max Torque79 Nm @ 9350 rpm
SystemMultipoint sequential electronic fuel injection with SAI. Electronic throttle control
ExhaustStainless steel 3 into 1 exhaust system low single sided stainless steel silencer
Final DriveX ring chain
ClutchWet, multi-plate, slip-assisted
Gearbox6-speed with Triumph Shift Assist
FrameFront – Aluminium beam twin spar Rear – 2 piece high pressure die cast
SwingarmTwin-sided, cast aluminium alloy
Front WheelCast aluminium alloy 5-spoke 17 x 3.5 in
Rear WheelCast aluminium alloy 5-spoke 17 x 5.5 in
Front Tyre120/70 ZR17
Rear Tyre180/55 ZR17
Front SuspensionShowa 41 mm upside down big piston forks (BPF), Adjustable compression damping, rebound damping and preload adjustment.
Rear SuspensionOhlins STX40 fully-adjustable piggyback reservoir RSU
Front BrakeTwin 310 mm floating discs, Brembo M50 4 – piston radial monobloc calipers
Rear BrakeSingle 220 mm disc, Brembo single piston caliper, switchable ABS
Width Handlebars775 mm
Height Without Mirrors1085 mm
Seat Height825 mm
Wheelbase1405 mm
Rake23.9˚
Trail100 mm
Dry Weight166 kg
Tank Capacity17.4 Litres



Street Triple S LAMS
Specifications
Engine TypeLiquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity660 cc
Bore Stroke76.0 x 48.5 mm
Compression12.13:1
Max Power52 Hp @ 11,250 rpm
Max Torque61Nm @ 6,000 rpm
SystemMultipoint sequential electronic fuel injection with SAI. Electronic throttle control
ExhaustStainless steel 3 into 1 exhaust system low single sided stainless steel silencer
Final DriveX ring chain
ClutchWet, multi-plate
Gearbox6-speed
FrameFront – Aluminium beam twin spar. Rear – 2 piece high pressure die cast
SwingarmTwin-sided, cast aluminium alloy
Front WheelCast aluminium alloy 5-spoke 17 x 3.5 in
Rear WheelCast aluminium alloy 5-spoke 17 x 5.5 in
Front Tyre120/70 ZR17
Rear Tyre180/55 ZR17
Front SuspensionShowa 41 mm upside down forks
Rear Suspension Showa piggyback reservoir monoshock, adjustable preload
Front BrakeTwin 310 mm floating discs, Nissin 2-piston sliding calipers, switchable ABS
Rear BrakeSingle 220 mm disc, Brembo single piston caliper, switchable ABS
Handlebar Width765 mm
Height Without Mirrors1060 mm
Seat Height810 mm
Wheelbase141 0mm
Rake24.8°
Trail104.3 mm
Dry Weight168 Kg
Tank Capacity17.4 Litres
Street Triple RS
Street Triple RS
Specifications
Engine TypeLiquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity765 cc
Bore Stroke77.99 mm / 53.4 mm
Compression12.54:1
Max Power123 PS  / 121.36 BHP (90.5 kW) @11750 rpm
Max Torque79 Nm @ 9350 rpm
SystemMultipoint sequential electronic fuel injection with SAI. Electronic throttle control
ExhaustStainless steel 3 into 1 exhaust system low single sided stainless steel silencer
Final DriveX ring chain
ClutchWet, multi-plate, slip-assisted
Gearbox6-speed with Triumph Shift Assist
FrameFront – Aluminium beam twin spar Rear – 2 piece high pressure die cast
SwingarmTwin-sided, cast aluminium alloy
Front WheelCast aluminium alloy 5-spoke 17 x 3.5 in
Rear WheelCast aluminium alloy 5-spoke 17 x 5.5 in
Front Tyre120/70 ZR17
Rear Tyre180/55 ZR17
Front SuspensionShowa 41 mm upside down big piston forks (BPF), Adjustable compression damping, rebound damping and preload adjustment.
Rear SuspensionOhlins STX40 fully-adjustable piggyback reservoir RSU
Front BrakeTwin 310 mm floating discs, Brembo M50 4 – piston radial monobloc calipers
Rear BrakeSingle 220 mm disc, Brembo single piston caliper, switchable ABS
Width Handlebars775 mm
Height Without Mirrors1085 mm
Seat Height825 mm
Wheelbase1405 mm
Rake23.9˚
Trail100 mm
Dry Weight166 kg
Tank Capacity17.4 Litres



Street Triple S LAMS
Street Triple S LAMS
Specifications
Engine TypeLiquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity660 cc
Bore Stroke76.0 x 48.5 mm
Compression12.13:1
Max Power52 Hp @ 11,250 rpm
Max Torque61Nm @ 6,000 rpm
SystemMultipoint sequential electronic fuel injection with SAI. Electronic throttle control
ExhaustStainless steel 3 into 1 exhaust system low single sided stainless steel silencer
Final DriveX ring chain
ClutchWet, multi-plate
Gearbox6-speed
FrameFront – Aluminium beam twin spar. Rear – 2 piece high pressure die cast
SwingarmTwin-sided, cast aluminium alloy
Front WheelCast aluminium alloy 5-spoke 17 x 3.5 in
Rear WheelCast aluminium alloy 5-spoke 17 x 5.5 in
Front Tyre120/70 ZR17
Rear Tyre180/55 ZR17
Front SuspensionShowa 41 mm upside down forks
Rear Suspension Showa piggyback reservoir monoshock, adjustable preload
Front BrakeTwin 310 mm floating discs, Nissin 2-piston sliding calipers, switchable ABS
Rear BrakeSingle 220 mm disc, Brembo single piston caliper, switchable ABS
Handlebar Width765 mm
Height Without Mirrors1060 mm
Seat Height810 mm
Wheelbase141 0mm
Rake24.8°
Trail104.3 mm
Dry Weight168 Kg
Tank Capacity17.4 Litres
