All-New 2017 Suzuki GSX-S750

Suzuki release an all new GSX-S750 to follow on from the highly successful GSX-S1000
2017 Suzuki GSX-S750
2017 Suzuki GSX-S750
2017 Suzuki GSX-S750 Key Features
  • New styling design inspired by GSX-S1000
  • New three-mode Traction Control System
  • Updated engine has increased output from 78kW to 84kW
  • Updated transmission ratios
  • New Nissin front brake package with floating petal discs
  • New tapered swingarm design
  • ABS standard fitment on Australian delivered model
  • New instrumentation based on GSX-S1000 design
  • New Suzuki Easy Start System
  • New Low RPM Assist
  • New 10-spoke wheels
  • New Bridgestone Battlax Hypersport S21 tyres
  • New matte black tapered handlebars and black levers
  • Australian Availability: Q2, 2017 – Final colours, specs and pricing TBC
2017 Suzuki GSX-S750
The 2017 Suzuki GSX-S750 features the same raw and muscled styling as the larger GSX-S1000.

Following in the footsteps of the much acclaimed GSX-S1000 which was released last year, the all-new GSX-S750 inherits the aggressive styling and performance qualities the GSX-S brand is renowned for.

The only model in its class truly powered by a supersport powerplant, the 749cm3, DOHC, liquid-cooled, inline four stroke engine is a street tuned version of the legendary K5 GSX-R750 engine.

2017 Suzuki GSX-S750
The 2017 Suzuki GSX-S750 features the K5 GSX-R750 derived engine, now offering 84kW.

Maximum output has been increased from the GSR750’s 78kW (106ps) to 84kW (114ps) thanks to newly added crankcase ventilation holes which reduces pumping losses. The final gear ratio has been shortened for improved acceleration, however the top-speed from the 6-speed transmission remains unchanged.

2017 Suzuki GSX-S750
The 2017 Suzuki GSX-S750’s airbox has been optimised for a thrilling induction raw.

A new air box design that draws air in from three optimised inlets, resulting in a satisfying induction howl when accelerating.

The updated exhaust system’s streamlined design eliminates the need for Suzuki’s Exhaust Control Valve, improving looks with greater performance and reduced weight.

2017 Suzuki GSX-S750
The 2017 Suzuki GSX-S750 features a traction control system that provides extra safety with minimal intrusion.

The all-new GSX-S750 features Suzuki’s advanced traction control system, this track-bred technology provides greater confidence and reduces fatigue by delivering control over engine output that helps prevent rear wheel spin.

The system operates so smoothly and naturally that it does not interfere with handling, even when the rider wishes to engage in aggressive sports riding.

2017 Suzuki GSX-S750
Three rider modes are available, and can be toggled via the left switchblock.

The rider can freely select one of three modes using the convenient handlebar switch. Mode one is for sports riding with minimal intervention; mode two offers the ideal balance for typical road conditions; and mode three delivers maximum traction control when riding in poorer conditions.

2017 Suzuki GSX-S750
The GSX-S750 chassis is designed to offer the best features of a compact tubular girder street bike frame and a twin-spar sportsbike frame.

The unique chassis incorporates the best qualities of a compact tubular girder street bike frame and a twin-spar sportsbike frame, and is built using a combination of D-section and round-section steel tubes for an especially smooth ride.

Wheelbase is 1,455 mm with 25°20′ of rake and 104mm of trail, again contributing to a comfortable ride. The black frame is slim and narrow in the mid-section, making it more comfortable for the rider to put a foot down when stopping.

2017 Suzuki GSX-S750
The GSX-S750 features gold anodised 41mm KYB forks with preload adjustability.

Gold anodised 41mm KYB inverted front forks provide a sporty ride that is also smooth and comfortable. Spring preload is adjustable to match the riding conditions and rider preferences.

A newly designed tapered swingarm is vastly improved in both performance and looks over the previous box-section unit and features a clean and stylish chain adjuster system. The KYB rear shock features seven-way adjustable spring preload.

2017 Suzuki GSX-S750

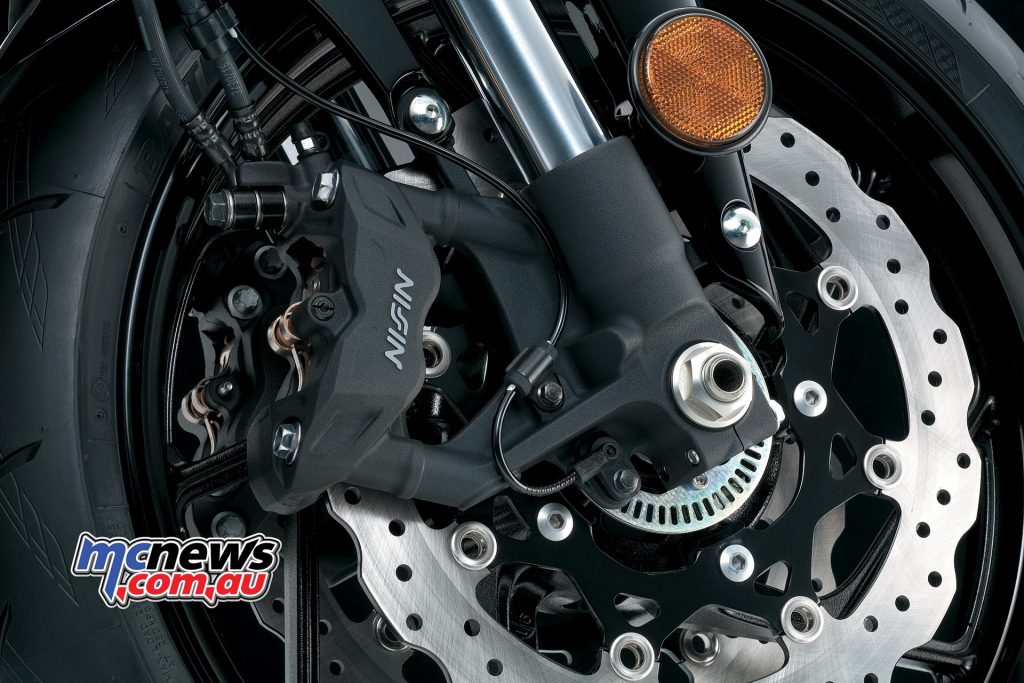

Nissin four-piston calipers and 310mm front rotors provide strong braking performance on the GSX-S750.

The brake package has been upgraded with Nissin two-piece, four-pot opposed piston radial front brake calipers mated with new 310mm floating petal discs for vastly improved braking performance.

2017 Suzuki GSX-S750
2017 Suzuki GSX-S750, 10-spoke cast aluminium wheels, manufactured by TPR.

Newly designed 10-spoke cast aluminium wheels, manufactured by TPR enhance the GSX-S750’s sporty appearance and are matched with specially developed Bridgestone Battlax Hypersport S21 radial tyres providing superior grip and stability on the road.

The Australian model will come standard with a compact and lightweight Nissin Antilock Brake System (ABS) unit. The ABS enhances brake performance by helping prevent, to a certain extent, wheel locking due to changes in road conditions or excessive braking, by matching stopping power to available traction.

2017 Suzuki GSX-S750
Daytime Running Lights on the GSX-S750 help visibility and provide additional road presence.

Suzuki’s styling designers intended to build a younger but equally wild brother of the GSX-S1000. With the bikes sharing the imposing brawler character. Day-time running lights (DRL) ensure good vision and maintain the aggressive theme. Dynamic lines run across the fuel tank to the shroud, and from the new belly pan to the tail section.

2017 Suzuki GSX-S750
The 2017 Suzuki GSX-S750 features a lightweight LCD dash.

A lightweight, brightness-adjustable full LCD instrument cluster is compact and only weighs 275g. Readouts include the speedometer, tachometer, traction control mode status, gear position, odometer, dual tripmeters, coolant temperatures, riding range, fuel consumption, and a clock. Owners can personalise the tachometer readout from a choice of five display patterns.

Matte black tapered handlebars and black levers adorn the rider’s cockpit and compliment the aggressive design of the motorcycle.

2017 Suzuki GSX-S750
The Suzuki GSX-S750 will also benefit from the Low RPM Assist feature, which helps reduce stalling and smoothens low speed riding in traffic.

By adopting the new Low RPM assist system, the chances of an unexpected engine stall have been minimised. This system will automatically raise the idle speed when engaging the clutch or when riding at low rpms, assisting frequent clutch work in congested traffic and preventing sudden and unexpected engine stalling when operating in the low rpm range.

The Suzuki Easy Start System enables engine starting at one push of the button. A computerised ECM checks the status and engages the starter motor immediately after activating the switch, making the engine starting process even easier for the rider.

2017 Suzuki GSX-S750
2017 Suzuki GSX-S750

From the crouched stance to the aggressive styling of its new headlight, fuel tank and body trim designs, every aspect of the GSX-S750 speaks of raw power, predictable performance and an apex predator.

The MY17 GSX-S750 is expected to arrive in Australia during the second quarter of 2017 with final specifications, colours and pricing being confirmed closer to launch.

2017 Suzuki GSX-S750
2017 Suzuki GSX-S750
2017 Suzuki GSX-S750 Technical Specifications
  • Engine – 749cc, in-line four-cylinder, four-stroke, DOHC
  • Bore x Stroke – 72x46mm
  • Compression: 12.3:1
  • Power – 114hp at 10,500rpm
  • Torque – 81Nm at 9000rpm
  • Induction – SDTV throttle bodies, long nose 10-hole fuel injectors
  • Clutch: Wet, multiplate
  • Gearbox: Six-speed, constant mesh
  • Chassis: D-section/round-section steel tube frame, tapered swingarm
  • Front Suspension – Gold-anodised 41mm KYB inverted front fork, pre-load adjustable, 120mm travel
  • Rear Suspension – Link-type single shock, seven-way pre-load adjustable, 138mm travel
  • Brakes – Dual Nissin four-opposed-piston calipers, 310mm Petal floating discs (F),
    Single disc and Nissin caliper (R), ABS
  • Rims – 10-spoke cast aluminum TPR wheels
  • Tyres – Bridgestone Battlax Hypersport S21, 120/70 – 17, 180/55 – 17
  • Seat Height – 820mm
  • Wheelbase – 1455mm
  • Ground clearance – 135mm
  • Fuel Capacity – 16 litres
  • Wet Weight – 213kg
