New Ducati Panigale V4 SP2 tops sportsbike range

215.5 hp, 194.5 kg wet, Öhlins EC suspension, carbon-fibre wheels

Motorcycle News by Motorcycle News
March 11, 2022
in Ducati, Ducati News
A A
Share on FacebookShare on TwitterShare

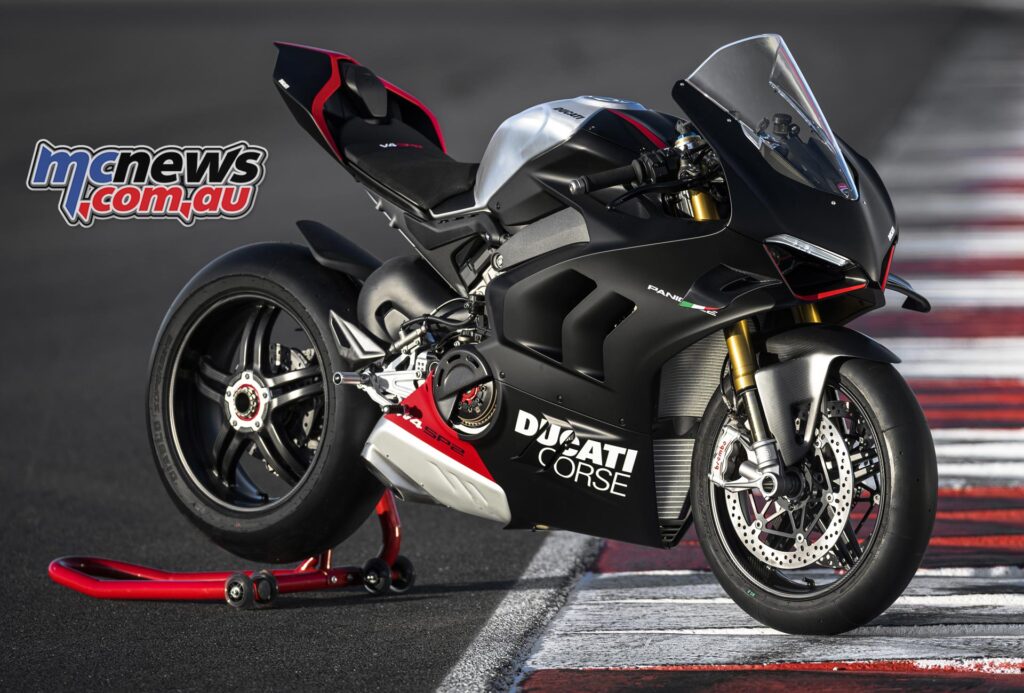

2022 Ducati Panigale V4 SP2


Ducati have unveiled their new flagship sportsbike in the form of the new Panigale V4 SP2, introduced as an even more track specific version, but also an intuitive and less strenuous option for non-professional riders according to the Italian manufacturer.

As a numbered series the Panigale V4 SP2 will only be available in a special Winter Test livery with judicious use of carbon-fibre, while arrival in Australia is expected in Q3 of 2022, with a MSRP (ride-away) of $56,900.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

Setting the Panigale V4 SP2 apart, with the SP standing for Sports Production, is the inclusion of more powerful brakes, lightweight carbon rims, WSBK derived final drive and dry clutch, racing rearsets and carbon components.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

Further sweetening the deal is the inclusion of a track kit, with mirror block-offs, fender eliminator and an open carbon clutch cover.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

That Winter Test livery combines matt black fairings with the various matt carbon finishes and wings, alongside red accents and an eye catching brushed aluminium tank.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

Those wings bear the Italian flag, with lower fairings running the Ducati Corse logo, with the saddle also denouncing the bike name. The steering head will carry the specific number of the bike.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

Powering the Panigale V4 SP2 is the 1103 cc Desmosedici Stradale powerplant, with counter-rotating crankshaft and 2022-specific updates.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

Those see performance bumped up to 215.5 hp at 13,000 rpm, or a 1.5 hp increase at peak performance, while at 14,500 rpm the bike boasts an additional 2.5 hp over the 2021 V4.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

Part of those changes are dedicated new mapping, with four power modes and gear-by-gear torque curves.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

For those wishing to take the Panigale V4 SP2 to the next level, a full titanium Ducati Performance exhaust can also be fitted, developed in collaboration with Akrapovič and reducing weight by 5 kg, while power is increased by 12.5 hp to 228 in total. Torque also rises to 131 nm.

RelatedPosts

No Content Available
2022 Ducati Panigale V4 SP22022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

The final drive and clutch specifically are a lightened final drive with 520 chain, and the STM-EVO SBK dry clutch, which offers more effective anti-hopping for the track, while secondary springs allow the mechanical engine braking to be modified to rider preference.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

The aluminium front frame running the Desmosedici Stradale as a stressed member remains, and is matched to a aluminium swingarm and shell-cast aluminium seat post, both of which bolt directly to the engine.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

Öhlins provide the NPX25/30 forks complete with pressurised cartridge damping system derived from that of racing forks, alongside a TTX36 shock absorber and electronic steering damper.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

The Öhlins second generation Smart EC 2.0 system characterised by OBTI (Objective Based Tuning Interface) logic, with settings done by objectives rather than clicks, which Ducati claim is more intuitive than traditional systems.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

Particularly eye-catching is the five-split-spoke carbon-fibre wheels, which save 1.4 kg over the aluminium forged units on the Panigale V4 S, with inertia reduced by 26 per cent at the front and 46 per cent at the rear.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

Brakes are a set of Brembo Stylema R calipers at the front, with a Brembo MCS radial pump master-cylinder, allowing three configurations of brake feeling. A remove adjuster device is also standard fitment, as you’d see on a race bike, while the brake and clutch levers are milled to reduce air resistance.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

Rizoma footpegs are also standard fitment, in anodised aluminium with carbon-fibre heelguards, and are full adjustable while offering greater ground clearance.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2

Electronics include four riding modes: Race A; Race B; Sport and Street, with a Track Evo display mode derived from MotoGP. DTC, DWC, DSC and EBC all have their own dedicated screen space, alongside a standard GPS module which allows automatic lap timing.

2022 Ducati Panigale V4 SP2

The Slick Ducati Performance Software is also available as an accessory, which is specifically designed to offer Ducati Traction Control curves for running slick or rain tyres, and can memorise the coordinates of five different tracks, alongside offering five full customisable riding modes. Standard fitment will be the Ducati Data Analyser.

2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2 Specifications
EngineDesmosedici Stradale 90° V4, counter-rotating crankshaft, 4 Desmodromic timing, 4 valves per cylinder, liquid-cooled
Displacement1,103 cc
Bore x Stroke81 x 53.5 mm
Compression Ratio14.0:1
Power158.5 kW (215.5 hp) @ 13,000 rpm
Torque123.6 Nm (91.2 lb-ft) @ 9,500 rpm
Fuel InjectionElectronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. Variable length intake system
Exhaust4-2-1-2 system, with 2 catalytic converters and 4 lambda probes.
Gearbox6 speed with Ducati Quick Shift (DQS) up/down EVO 2
Primary DriveStraight cut gears; Ratio 1.80:1, 1=36/15 2=34/17 3=33/19 4=32/21 5=30/22 6=27/22
Final DriveChain 520; Front sprocket 16; Rear sprocket 41
CLUTCHHydraulically controlled slipper dry clutch. Self bleeding master cylinder.
FrameAluminum alloy “Front Frame” with optimized stiffnesses
ForkÖhlins NPX25/30 pressurized 43 mm fully adjustable fork with TiN treatment. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode
ShockFully adjustable Öhlins TTX36 unit. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode. Aluminium single-sided swingarm
Wheels5-split spoke carbon fiber 3.50″ x 17″*,  6.00″ x 17″
TyresPirelli Diablo Supercorsa SP 120/70, 200/60
Wheel Travel125 mm (4.9 in) – 130 mm (5.1 in)
Front Brake2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema R 4-piston callipers with Bosch Cornering ABS EVO. Self bleeding Brembo MCS 19.21 master cylinder.
Rear Brake 245 mm disc, 2-piston calliper with Cornering ABS EVO
DashLast generation digital unit with 5″ TFT colour display
DIMENSIONS AND WEIGHTS
Dry Weight173 kg (381 lb)
Kerb Weight194.5 kg (428.7 lb)
Seat Height850 mm (33.5 in)
Wheelbase1.469 mm (57,8 in)
Rake24,5°
Trail100 mm (3,94 in)
Tank Capacity17 l – 4.49 gallon (US)
SeatsSingle seat
ElectronicsRiding Modes, Power Modes, Cornering ABS EVO, Ducati Traction, Control (DTC) EVO 3, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control, (EBC) EVO,  Auto tyre calibration
Standard EquipmentDucati Power Launch (DPL), Ducati Quick Shift (DQS) up/down EVO 2, Full LED lighting with Daytime Running Light (DRL), Ducati Electronic Suspension (DES) EVO with Öhlins suspension and steering damper, Quick adjustment buttons, Lithium-ion battery, Auto-off indicators, Racing style handle grips, Chain guard, Carbon fiber wheels*, Carbon fiber front mudguard, Wings in carbon fiber, Adjustable rider footpegs in aluminium with heel guard in carbon fiber, Billet aluminium steering stem with bike number, Machined brake and clutch levers, Machined mirror block-off plates**, License plate mount removal plug**, Carbon fiber open clutch cover**,Ducati Data Analyzer+ (DDA+) with GPS module Ducati Multimedia System (DMS)
Warranty24 months unlimited mileage
Maintenance12,000 km (7,500 mi) / 12 months
Valve Clearances24,000 km (15,000 mi)
CONSUMPTION AND EMISSIONS
STANDARDEuro 5
CO2 EMISSIONSCO2 175 g/km
CONSUMPTION7,6 l/100km
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
2022 Ducati Panigale V4 SP2
